7.4V vs. 11.1V LiPo Batteries for Airsoft: Which One Should You Choose?

A 7.4V LiPo battery is usually the safer choice for a stock AEG or an airsoft gun without an electronic trigger unit. An 11.1V LiPo battery gives faster trigger response and a higher rate of fire, but the gun must be designed to handle the extra electrical and mechanical stress.

The best airsoft LiPo battery is not always the one with the highest voltage. It must match the AEG manufacturer’s voltage limit, motor, gearbox, MOSFET or ETU, connector, battery compartment, and current demand.

Key takeaways

• A 7.4V LiPo is a 2S battery. It reaches 8.4V when fully charged.
• An 11.1V LiPo is a 3S battery. It reaches 12.6V when fully charged.
• Choose 7.4V for most stock AEGs, older trigger contacts, and reliability-focused builds.
• Choose 11.1V only when the AEG manufacturer or a qualified technician confirms compatibility.
• A MOSFET protects trigger contacts, but it does not automatically make the gearbox 11.1V-ready.
• Voltage mainly affects motor speed, trigger response, and rate of fire. It does not directly increase BB velocity.
• Check C rating, capacity, connector, wire size, pack dimensions, and charger support before buying.

Part 1. 7.4v vs 11.1v lipo: quick comparison

The correct choice depends on the complete AEG system. There is no universal rate-of-fire value for either voltage. Motor design, gear ratio, spring load, shimming, wiring, connectors, battery resistance, and electronic controls can all change the result.

Part 2. How voltage affects an airsoft aeg

An automatic electric gun uses the battery to drive its motor. The motor turns the gears, pulls back the piston, compresses the spring, and releases the piston to fire a BB.

Battery voltage affects how quickly the motor can complete this cycle. Moving from a 7.4V LiPo battery to an 11.1V LiPo battery normally produces:

• Faster motor acceleration
• Shorter delay between pulling the trigger and firing
• Higher full-auto rate of fire
• Higher current peaks during startup
• More stress on gears, pistons, motors, switches, and wiring

However, battery voltage does not directly control muzzle velocity or FPS. Airsoft FPS is mainly determined by the spring, cylinder volume, air seal, barrel, piston assembly, and BB weight. An 11.1V battery cycles the gearbox faster, but it does not normally make the spring push the BB harder.

To compare LiPo with NiMH and Li-ion options, see our guide to airsoft battery types.

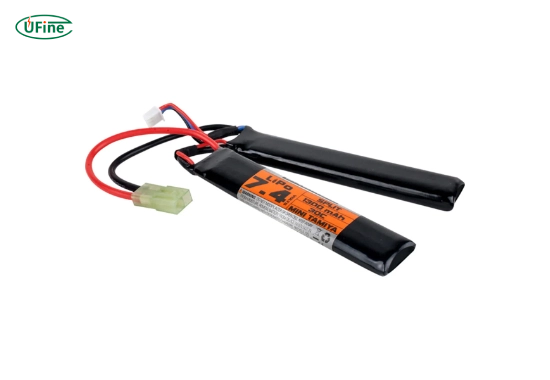

Part 3. What is a 7.4v lipo airsoft battery?

A 7.4V LiPo battery contains two cells connected in series. This is called a 2S pack. Each cell has a nominal voltage of about 3.7V, giving the pack a nominal voltage of 7.4V.

A fully charged 7.4V LiPo reaches 8.4V. The voltage then falls during use. A suitable charger, low-voltage alarm, or compatible ETU should be used to prevent excessive discharge.

When should you choose 7.4V?

A 7.4V LiPo battery is usually suitable for:

• Stock AEGs without an electronic trigger unit
• Older guns with mechanical trigger contacts
• Entry-level airsoft guns
• Rental guns and casual-use equipment
• Builds designed for moderate rate of fire
• Players who value reliability over maximum speed

Advantages of a 7.4V LiPo

• Lower electrical and mechanical stress
• Lower risk of overspin and double firing
• Good compatibility with many stock AEGs
• Often easier to fit into small battery compartments
• Useful trigger response without an extreme rate of fire

Limits of a 7.4V LiPo

• Slower trigger response than an 11.1V pack in the same AEG
• Lower rate of fire in full-auto mode
• May feel less responsive with a heavy spring or inefficient motor
• Cannot solve problems caused by poor wiring, bad shimming, or a weak motor

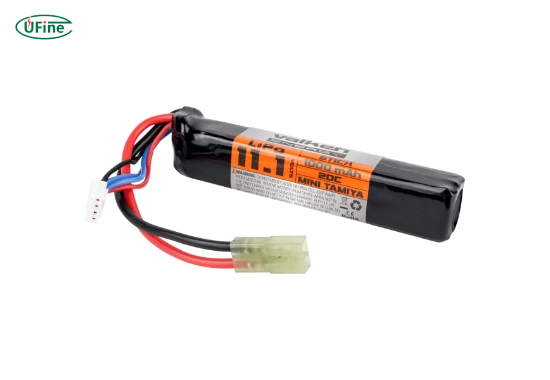

Part 4. What is an 11.1v lipo airsoft battery?

An 11.1V LiPo battery contains three cells connected in series. It is also called a 3S LiPo battery. Its fully charged voltage is 12.6V.

The higher voltage allows the motor to accelerate faster. This can improve trigger response and increase the rate of fire. It can also expose weak parts in the electrical and mechanical system.

When should you choose 11.1V?

An 11.1V LiPo battery may be suitable when:

• The AEG manufacturer lists 11.1V as an approved voltage
• The gun has an 11.1V-rated MOSFET or ETU
• The gearbox has been built and tested for faster cycling
• The motor, gears, piston, wiring, and connector are in good condition
• Faster semi-auto response is important for the playstyle
• The build has suitable active braking or cycle control where needed

Advantages of an 11.1V LiPo

• Faster trigger response
• Higher potential rate of fire
• Better motor acceleration under load
• Useful for responsive CQB and competitive builds
• More nominal energy than a 7.4V pack with the same mAh rating

Risks of an 11.1V LiPo

• Faster wear on gears, pistons, bearings, and motors
• Trigger contact arcing if no MOSFET is installed
• Overspin or multiple shots in semi-auto
• Premature engagement in poorly matched high-speed builds
• More heat in weak wiring, connectors, motors, or electronic controls
• Possible warranty issues when the voltage is not approved

Part 5. Can i use 11.1v instead of 7.4v?

You can use an 11.1V battery instead of a 7.4V battery only when the exact AEG is designed or upgraded for 11.1V operation. Do not make the decision based only on the connector fitting into the gun.

Check the following points first:

1. Manufacturer approval: Read the manual or product specification for your exact AEG model.
2. MOSFET or ETU rating: Confirm that the electronic unit supports a fully charged 3S LiPo at 12.6V.
3. Mechanical condition: Check the gears, piston rack, motor, bearings, anti-reversal latch, shimming, and lubrication.
4. Cycle control: Watch for overspin, double firing, premature engagement, or abnormal sounds.
5. Low-voltage protection: Make sure the ETU can detect a 3S LiPo correctly or use another suitable warning system.
6. Current capability: Check the battery C rating, wires, fuse, connector, and motor demand.
7. Physical fit: Leave enough space for the pack, balance lead, main cable, and connector.

Manufacturer guidance can vary between models from the same brand. For example, KRYTAC states that many of its standard AEGs support 11.1V batteries, while some lower-power configurations should use 7.4V packs. This is why the exact model specification is more reliable than a general “LiPo-ready” label. See the official KRYTAC battery guidance.

When compatibility is unclear, use a 7.4V airsoft battery until the manufacturer or a qualified technician confirms that the gun can handle 11.1V.

Part 6. Does an 11.1v battery require a mosfet?

An 11.1V LiPo should normally be used with a suitable MOSFET or ETU. Higher voltage can increase arcing across mechanical trigger contacts. Over time, the contacts may burn, pit, or fail.

A MOSFET switches the motor current electronically. The mechanical trigger then carries only a small control signal instead of the full motor current.

What a MOSFET can do

• Reduce wear on mechanical trigger contacts
• Lower resistance in the main current path
• Improve electrical response
• Support features such as active braking or burst control
• Provide low-voltage detection on compatible models

What a MOSFET cannot do

• Reinforce weak gears
• Repair poor shimming
• Prevent every form of premature engagement
• Make an unsuitable motor or piston safe
• Guarantee that the gearbox is 11.1V-compatible

A basic MOSFET mainly protects the electrical trigger path. A more advanced ETU may also control the cycle, active braking, burst mode, pre-cocking, and low-voltage protection. Always confirm the unit’s supported battery voltage in its technical manual. GATE’s official AEG controller documentation, for example, lists separate protection settings for different LiPo cell counts.

Part 7. How c rating affects airsoft performance

Voltage is only one part of airsoft battery selection. The battery must also supply enough current to start and run the motor.

The C rating shows the battery’s stated discharge capability. The basic calculation is:

Maximum continuous current = battery capacity in Ah × continuous C rating

For example, a 1300mAh 25C battery has a calculated continuous current rating of:

1.3Ah × 25C = 32.5A

A battery with insufficient current capability may suffer from voltage sag, heat, weak trigger response, or faster degradation. It may also place more stress on the cells.

Do not use an unusually low C rating as a way to make an 11.1V battery safer for an incompatible gun. A weak battery does not fix a voltage mismatch. It may only add voltage sag and heat. Use the voltage approved for the AEG, then choose a battery with enough current capability.

For a detailed explanation, read our guide to LiPo battery C ratings.

Part 8. Capacity and airsoft battery runtime

Battery capacity is normally listed in milliamp-hours. A higher mAh rating can support longer use, but it also tends to increase pack size and weight.

Runtime should not be judged by mAh alone when comparing different voltages. Watt-hours provide a better energy comparison:

Watt-hours = nominal voltage × capacity in Ah

An 11.1V 1500mAh battery stores about 50% more nominal energy than a 7.4V 1500mAh battery. Therefore, it is not accurate to say that every 7.4V battery lasts longer than an 11.1V battery with the same mAh rating.

Actual runtime and shot count depend on:

• Motor efficiency
• Spring strength
• Gear ratio
• Battery internal resistance
• Connector and wire resistance
• Semi-auto versus full-auto use
• Rate of fire
• Ambient temperature
• Battery age and condition

An 11.1V battery may encourage faster firing and more full-auto use, which can consume energy more quickly during a game. For this reason, fixed claims such as “one battery provides 1,500 shots” should only be treated as rough estimates.

To learn how charging habits and storage affect service life, see our guide to airsoft LiPo battery lifespan.

Part 9. Battery size and connector compatibility

A battery can have the correct voltage but still be unsuitable because of its dimensions, cable position, or connector.

Common airsoft LiPo pack shapes include:

• Stick packs: Often used in buffer tubes, AK top covers, and narrow compartments.
• Nunchuck or butterfly packs: Often placed in crane stocks with two side tubes.
• Brick packs: Used in fixed stocks and larger handguards.
• Split packs: Designed for spaces where one solid pack cannot fit.

A 3S 11.1V pack has one more cell than a 2S 7.4V pack. It therefore needs more cell volume when capacity and cell design are similar. However, the final size also depends on cell thickness, layout, capacity, wires, and protective wrapping.

Measure the available battery space before ordering. Allow extra room for:

• Main power wires
• Balance connector
• Fuse
• Deans or Mini Tamiya connector
• Stock movement and battery cover clearance

Never force a LiPo pack into a compartment. Compression, sharp edges, or pinched wires can damage the pouch cells and insulation.

Part 10. How to choose the best airsoft lipo battery

Use this checklist when selecting the best airsoft LiPo battery:

• Approved voltage for the exact AEG model
• 2S or 3S charger support
• Sufficient continuous C rating
• Suitable capacity and watt-hours
• Correct Deans, Tamiya, or other connector
• Correct polarity
• Pack dimensions that leave room for wires
• Compatible MOSFET, ETU, and low-voltage setting
• No swelling, impact damage, or damaged insulation

Part 11. How to charge airsoft lipo batteries safely

Both 7.4V and 11.1V LiPo batteries require a charger designed for LiPo chemistry. A balance charger should monitor the voltage of each series-connected cell.

• Select the correct 2S or 3S setting before charging.
• Confirm the pack voltage shown by the charger.
• Connect both the main lead and balance lead when required.
• Follow the battery manufacturer’s stated charging current.
• Charge on a stable, non-combustible surface.
• Do not charge a swollen, punctured, crushed, or overheated pack.
• Do not leave the battery charging while sleeping or away from the area.
• Disconnect the battery from the AEG after use.
• Stop using the pack if a cell becomes badly unbalanced.

The U.S. Fire Administration also advises using the correct charger from the device manufacturer or a reputable supplier and stopping use when a lithium battery shows signs of damage. Review its lithium-ion battery safety guidance.

For more charging details, read our guide on how to charge LiPo batteries safely.

Part 12. Which airsoft battery should you choose?

Choose a 7.4V LiPo if your AEG is stock, uses mechanical trigger contacts, or has no clear 11.1V approval. It provides responsive performance with lower electrical and mechanical stress.

Choose an 11.1V LiPo if the exact AEG, MOSFET or ETU, gearbox, motor, and wiring are rated for it. It is the better option when fast trigger response is required and the system has been designed for faster cycling.

Do not upgrade from 7.4V to 11.1V based only on battery size or connector type. Check the manufacturer’s specification first. When the specification is unclear, have the AEG inspected before changing voltage.
