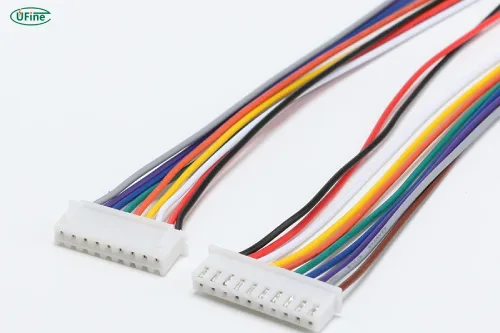

Battery Wire Length: Hidden Cause of Power Loss

The wire connecting a battery to a device may look like a simple accessory, but it can directly affect system performance. A longer battery wire increases resistance, which can cause voltage drop, power loss, heat generation, and unstable operation—especially in high-current applications.

When designing a battery-powered product, you should consider not only the battery capacity and voltage but also the complete power path from the battery to the load. The right wire length, thickness, and configuration can make a noticeable difference in real-world performance.

Key takeaways

• Battery wire length affects performance because longer wires create higher resistance.
• Increased wire resistance causes voltage drop, reducing the voltage available to the device.
• The impact becomes more significant in high-current applications such as motors, robotics, and wireless transmitters.
• Longer wires also increase power loss and heat generation.
• Shorter wires are not always the only solution; selecting the correct wire gauge is equally important.
• Battery performance should be evaluated based on the complete electrical path, including wires and connectors.
• Custom battery solutions can optimize wire length, connector position, and cable configuration for specific devices.

Part 1. Why battery wire length affects performance

Many engineers focus on battery specifications first:

• Voltage
• Capacity
• Discharge rate
• Internal resistance

However, the battery is only one part of the power delivery system.

The actual current path is:

Battery → Wire → Connector → PCB → Device Load

Every component in this path has some resistance. Even a small amount of resistance can influence performance when current increases.

A battery may provide the correct voltage at its terminals, but the device may receive a lower voltage after current passes through the wire.

This is why two devices using the same battery can perform differently if they use different wire configurations.

Part 2. How wire length increases resistance

The relationship between wire length and resistance is straightforward:

Longer wire = higher resistance

Wire resistance depends on several factors:

• Length
• Wire cross-sectional area
• Material
• Temperature

The basic relationship is:

R = ρ × L / A

Where:

• R = wire resistance
• ρ = material resistivity
• L = wire length
• A = conductor cross-sectional area

As wire length increases, resistance increases proportionally. A longer cable creates more resistance for the current to overcome.

For example:

A 50 mm wire and a 500 mm wire made from the same material and thickness do not have the same electrical performance. The longer wire introduces more resistance into the circuit.

Part 3. How battery wire length causes voltage drop

The most direct impact of a longer battery wire is voltage drop.

The basic formula is:

Voltage Drop = Current × Resistance

or:

Vdrop = I × R

As current increases, the voltage loss across the wire increases.

For example:

A battery outputs 3.7V, but after passing through a long wire with noticeable resistance, the device may only receive 3.5V or lower under load.

This difference may seem small, but many electronic devices operate within limited voltage ranges.

A voltage drop can cause:

• Microcontroller resets
• Reduced motor speed
• Wireless communication failures
• Lower system efficiency
• Unexpected shutdowns

This problem is especially common in compact battery-powered products where engineers extend wires to make assembly easier without considering electrical effects.

Why voltage drop matters more during high-current operation

Battery wire length does not affect every device equally.

For low-power electronics, the impact may be almost invisible.

For example:

• A small sensor drawing 20mA
• A Bluetooth module drawing 50mA

may continue working normally even with slightly longer wires.

However, high-current applications are much more sensitive.

Examples include:

• Robotics
• Motors
• Drones
• Actuators
• High-performance embedded devices

When a motor starts, the current can increase significantly for a short period. The extra resistance from a long wire can create a sudden voltage drop.

The result may be:

• Motor startup failure
• Controller reboot
• Reduced torque
• Unstable operation

This explains why some devices work normally during idle conditions but fail when the system requires peak power.

Part 4. How battery wire length affects power efficiency

Voltage drop is only one problem. Longer wires also waste energy as heat.

The power loss caused by wire resistance is:

Power Loss = I² × R

This means the impact increases rapidly as current increases.

For example:

• Doubling wire resistance doubles power loss.
• Doubling current increases power loss by four times.

This is why high-current devices require careful wire selection.

Energy that should reach the device is instead converted into heat inside the cable.

The consequences include:

• Reduced efficiency
• Lower battery runtime
• Increased temperature
• Potential reliability issues

A battery system is only as efficient as its weakest part. A high-quality battery connected with an unsuitable wire configuration can still deliver poor results.

Part 5. Battery wire length vs wire gauge: which matters more?

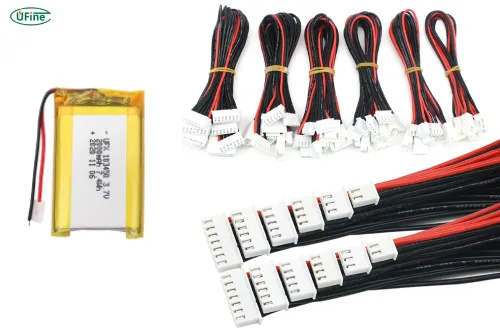

Wire length and wire thickness work together.

A longer wire does not always mean poor performance if the wire diameter is increased.

Similarly, a short but very thin wire may still create significant voltage loss.

When choosing battery wires, you should consider:

• Maximum current
• Continuous current
• Peak current
• Wire length
• Available installation space
• Temperature environment

A common mistake is selecting wire size only based on battery capacity.

A 2000mAh battery powering a motor may require a different wire design compared with a 2000mAh battery powering a low-power sensor.

Part 6. How battery wire length affects different applications

Wearable devices

Wearable products usually prioritize:

• Small size
• Low weight
• Flexible installation

Because current consumption is usually lower, wire length may have less impact.

However, extremely compact devices still need careful routing to avoid unnecessary resistance and mechanical stress.

Robotics and motor applications

Robotics systems are more sensitive because motors create high current demand.

Battery wire design affects:

• Startup current delivery
• Motor response
• Voltage stability
• Overall performance

Shorter, properly sized wires can help prevent sudden voltage drops during movement.

IoT devices

IoT products often focus on long standby time.

Although average current may be low, inefficient wiring can still affect:

• Sensor reliability
• Wireless transmission stability
• Battery lifetime

Drones

Drones require both high power and low weight.

Wire design becomes a balance between:

• Minimizing weight
• Reducing resistance
• Maintaining sufficient current capability

Even small efficiency improvements can affect flight time.

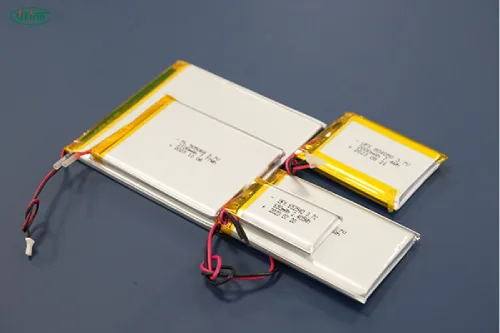

Part 7. How to choose the right battery wire length

The shortest possible wire is not always the best design.

A practical battery wire length should consider:

Device layout

The wire needs to fit the mechanical structure without creating unnecessary bends or stress.

Current requirements

Higher current applications need lower resistance paths.

Connector location

The battery connector position can determine the most practical wire routing.

Assembly requirements

A slightly longer wire may make manufacturing easier, but excessive length can reduce efficiency.

The goal is to find the best balance between:

• Electrical performance
• Mechanical flexibility
• Assembly convenience

Part 8. Common battery wire design mistakes

Mistake 1: Using unnecessarily long wires

Extra wire length increases resistance without providing any functional benefit.

Mistake 2: Ignoring peak current

A wire that works during normal operation may fail during startup or sudden load changes.

Mistake 3: Choosing wire size only by battery capacity

Battery capacity does not directly determine wire requirements. Current demand is the more important factor.

Mistake 4: Testing the battery without final wiring

A battery may perform well during testing but behave differently after being installed with longer wires and connectors.

Mistake 5: Forgetting connector resistance

The connector is also part of the current path. A complete design should consider battery wire and connector resistance together.

A practical checklist for battery wire design

Part 9. How custom battery solutions optimize wire design

In many products, battery integration problems are not caused by the battery cell itself but by the overall design.

A custom battery solution can optimize:

• Wire length
• Wire gauge
• Connector type
• Connector position
• Battery shape
• Protection circuit location

This is especially useful for:

• Compact consumer electronics
• Wearable devices
• Robotics products
• Medical devices
• IoT equipment

Instead of adapting the product around a standard battery, engineers can design the battery around the actual system requirements.

Part 10. A practical checklist for battery wire design

Part 11. FAQs

1. Does battery wire length affect charging performance?

Yes, battery wire length can affect charging performance. Longer wires add resistance to the charging path, which may cause voltage loss and reduce charging efficiency, especially when the charging current is high or the wire size is insufficient.

2. Can a longer battery wire reduce battery runtime?

Yes. A longer wire increases resistance, causing more energy to be converted into heat instead of reaching the device. Over time, this additional power loss can reduce overall system efficiency and shorten runtime.

3. Does battery wire material affect performance?

Yes. Different conductor materials have different electrical resistance values. Materials with higher conductivity provide lower resistance and reduce energy loss during current transmission.

4. Should battery wires be as short as possible?

Shorter wires generally reduce resistance, but the shortest possible wire is not always the best choice. The wire should also provide proper mechanical flexibility, safe routing, and reliable assembly.

5. Should battery wire length be considered during product design?

Yes. Battery wire length should be considered during the early mechanical and electrical design stages. Deciding wire routing after the PCB and enclosure are completed may lead to unnecessary resistance, assembly issues, or performance limitations.
