How to Choose a Diesel Battery for Heavy Equipment?

Share the page to

Choosing the right diesel battery for heavy equipment isn’t just a matter of matching size and voltage—it’s about ensuring maximum reliability, safety, and performance in harsh conditions. Whether you’re operating excavators, bulldozers, or loaders, a well-matched battery keeps your machines running smoothly and prevents costly breakdowns.

So, how do you choose the best diesel battery for heavy equipment?
The best diesel battery delivers high starting power, resists extreme temperatures and vibrations, and lasts through heavy-duty cycles with minimal maintenance.

This comprehensive guide covers everything you need to know, from battery types and specifications to real-life usage tips. so you can make a confident, informed decision.

Part 1. What is a diesel battery?

A diesel battery is a high-performance energy storage unit designed specifically to start diesel engines and power the electrical systems in heavy-duty machinery. These batteries are built to deliver large bursts of current, known as cranking power, because diesel engines require more energy to start than their gasoline counterparts.

Unlike standard car batteries, diesel batteries are engineered for:

  • Deep cycle capabilities
  • High Cold Cranking Amps (CCA)
  • Resistance to vibrations and shocks
  • Longer discharge cycles

These characteristics make them ideal for construction equipment, agricultural machinery, mining trucks, and other industrial-grade vehicles.

diesel battery

Part 2. Why does choosing the right diesel battery matter?

Using the wrong battery can lead to:

  • Cold start failures, especially in winter
  • Reduced equipment efficiency
  • Frequent breakdowns and downtime
  • Shortened battery lifespan
  • Increased maintenance costs

On the other hand, the right battery:

  • Improves reliability
  • Supports higher power demand
  • Reduces maintenance frequency
  • Extends the life of your equipment’s electrical system

In high-value industries, where time is money, battery failure isn’t just a small inconvenience—it’s a serious operational risk.

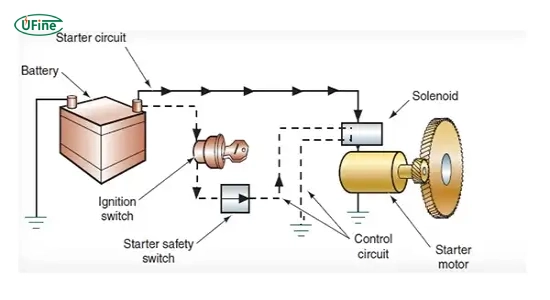

Part 3. How do diesel batteries work?

Depending on the machine’s design, a diesel battery can be used as both a starter battery and, in some cases, a deep-cycle battery.

Here’s a detailed breakdown of how it functions:

  • Starting the Engine (Cranking Phase)
    • Diesel engines require significantly more torque to start because of their higher compression ratios
    • The battery delivers a high-amperage current to the starter motor, which cranks the engine
    • Cold Cranking Amps (CCA) become critical for strong starts in sub-zero temperatures
  • Powering Electrical Components
    • Once the engine is running, the battery supports:
      • On-board computers
      • Control panels
      • GPS systems
      • Lights and sensors
      • Hydraulic monitoring systems
    • Particularly important during idle or low-RPM operation when alternators may not supply sufficient voltage
  • Charging and Discharging Cycles
    • The alternator recharges the battery while the engine runs
    • High electrical loads or frequent stop-start operations may cause partial discharges
    • Deep-cycle capable batteries are more suitable for such conditions
  • Environmental Resistance
    • Diesel batteries must withstand:
      • Heavy vibrations from rough terrain
      • Extreme temperatures (both hot and cold)
      • Moisture, dust, and chemical exposure
    • Construction features include:
      • Reinforced casings
      • Sealed designs
      • Anti-corrosion terminals

how do diesel batteries work

Part 4. What types of diesel batteries are available?

There are three main types of batteries used in diesel-powered heavy equipment:

  • Flooded Lead-Acid Batteries (FLA)
    • Most common and budget-friendly
    • Require regular maintenance (water refilling)
    • Offer high cranking power
    • Limited lifespan if not maintained properly
  • Absorbent Glass Mat (AGM) Batteries
    • Sealed and maintenance-free
    • Better vibration resistance
    • Faster charging
    • Ideal for off-road and rugged environments
  • Gel Batteries
    • Use a silica-based gel electrolyte
    • Completely sealed and spill-proof
    • Excellent for deep-cycling
    • Poorer cold performance compared to AGM
  • Lithium-Ion Batteries
    • Lightweight and compact
    • Highest cycle life and energy efficiency
    • Can handle deep discharges without damage
    • Best for long-term use, but more expensive upfront

Part 5. What should you look for when choosing a diesel battery?

Here are the critical factors to consider:

  • Cold Cranking Amps (CCA)
    • Measures cold weather starting capability
    • For below freezing temperatures: 900+ CCA recommended
  • Reserve Capacity (RC)
    • Determines how long battery can power equipment if alternator fails
    • Higher RC provides longer backup power
  • Amp Hour Rating (Ah)
    • Important for machines with constant electrical loads
    • Higher Ah rating supports extended usage
  • Vibration Resistance
    • Critical for construction equipment operating in rough environments
    • Look for batteries with reinforced internal design
  • Maintenance Requirements
    • AGM, Gel, and Lithium batteries are maintenance-free
    • Flooded batteries require regular water level checks
  • Battery Size & Terminal Configuration
    • Must fit the battery compartment properly
    • Terminal types must match equipment requirements
  • Temperature Tolerance
    • Check operating temperature range specifications
    • Important for extreme climate operation
  • Warranty & Brand Reliability
    • Trusted brands typically offer 3–5 year warranties
    • Field-tested models preferred for industrial use

Part 6. What size diesel battery do you need?

Battery size depends on your equipment:

  • Engine displacement
  • Electrical load
  • Operating environment

Here’s a general guideline:

Equipment Type Engine Size Recommended CCA Typical Battery Group
Skid Steer Loaders <3.0L 600–800 CCA Group 24, 34
Backhoes / Excavators 3.0–5.0L 800–1000 CCA Group 31
Bulldozers / Graders 5.0–8.0L 1000–1300 CCA Group 31, 4D
Mining Trucks / Cranes >8.0L 1300–1500+ CCA Group 8D

Consult your owner’s manual or contact a battery supplier for exact specifications.

Part 7. How does climate affect diesel battery choice?

Cold Weather:

  • Batteries lose 30–50% of their capacity in freezing temperatures.
  • Choose a battery with high CCA and low internal resistance.

Hot Weather:

  • Heat accelerates chemical breakdown, reducing lifespan.
  • Use batteries with heat-resistant casings and venting systems.

Ideal Solution: AGM and Lithium batteries perform better across wide temperature ranges.

Part 8. AGM vs. Gel vs. Lithium: Which one is best?

Let’s compare these battery types using real-world data:

Feature AGM Battery Gel Battery Lithium-Ion Battery
Maintenance None None None
Cycle Life 300–500 cycles 500–800 cycles 2000–5000+ cycles
Depth of Discharge 50% recommended 60% recommended Up to 90–100%
Operating Temp Range -20°C to 50°C -10°C to 45°C -20°C to 60°C
Charging Time (0–100%) 4–6 hours 6–8 hours 1–2 hours
Self-Discharge Rate 3–4% per month 2–4% per month <1% per month
Weight (for 100Ah) 30–35 kg 33–38 kg 10–15 kg
Price (USD, 100Ah) $150–$200 $200–$300 $500–$900
Vibration Resistance High Very High Excellent
Best For General use Deep cycling terrain Top-end heavy equipment

Verdict:

  • AGM is ideal for budget-conscious operations needing reliable cranking.
  • Gel works well in rough, high-vibration environments.
  • Lithium is the best for long-term ROI and performance.

Part 9. How to maintain a diesel battery for longer life?

Even maintenance-free batteries benefit from good care. Here’s how:

  • Regular Checks:
    • Inspect terminals for corrosion and clean with a baking soda solution.
    • Check for cracks, leaks, or bulging.
  • Charge Management:
    • Avoid deep discharges on lead-acid batteries.
    • Use smart chargers to prevent overcharging.
  • Temperature Control:
    • Insulate batteries in cold climates.
    • Provide ventilation in hot environments.
  • Proper Installation:
    • Secure batteries tightly to avoid vibration damage.
    • Use anti-corrosion washers on terminals.
  • Seasonal Storage:
    • Disconnect and store batteries in a cool, dry place if unused for long periods.
    • Recharge every 30–60 days during storage.

Part 10. When should you replace your diesel battery?

Signs you need a new battery include:

  • Slow or failed starts
  • Swollen or leaking case
  • More frequent jump-starts
  • Battery age is over 4 years
  • Dashboard warning lights

Use a digital battery tester to verify voltage and load performance. If it’s below 12.4V at rest, it may be time to replace it.

Part 11. FAQs about choosing a diesel battery

What is the best battery type for heavy equipment?

Lithium-ion batteries offer the best performance, lifespan, and ROI. However, AGM batteries are a great middle ground for most users.

Can I use a car battery in heavy equipment?

No. Car batteries lack the CCA and durability for diesel engines and harsh working conditions.

How long does a diesel battery last?

  • Flooded: 2–4 years
  • AGM: 3–5 years
  • Gel: 4–6 years
  • Lithium: 8–10+ years

What happens if I use the wrong battery size?

Undersized batteries may not start the engine. Oversized batteries may not fit, or cause charging system issues.

Why does my battery drain quickly?

Common causes include:

  • Parasitic electrical draw
  • Old or damaged alternator
  • Battery nearing end of life
  • High electrical loads during idle
