Understanding Square Batteries: What You Need to Know

Key takeaways

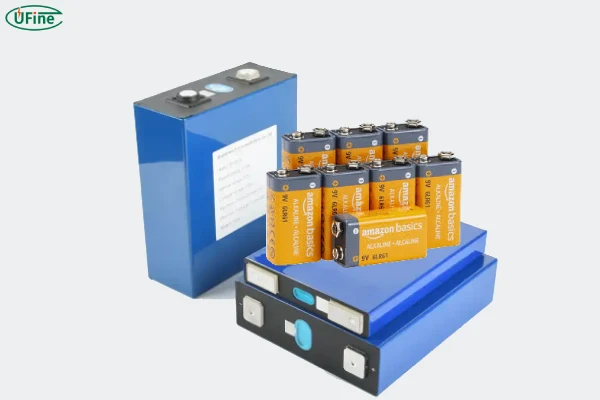

• Square batteries refer to batteries with rectangular or prismatic shapes, including 9V batteries and lithium prismatic cells
• Square lithium batteries are widely used because they maximize space and allow flexible design
• Small square batteries are common in compact electronics, while large square batteries are used in energy storage and industrial systems
• Square batteries often provide better space efficiency than cylindrical batteries
• Choosing the right square battery depends on size, voltage, chemistry, and application

Part 1. What are square batteries called?

This is where things get slightly confusing. Square batteries don’t always go by the same name. Depending on the structure and chemistry, you might hear different terms.

Some common square battery names include:

• 9V battery
• Prismatic battery
• Square lithium battery
• Flat battery
• Square LiPo battery

Among these, a prismatic battery is probably the most technical term. It refers to a rectangular battery cell design commonly used in lithium-ion batteries.

Prismatic batteries, are energy storage devices shaped like a square or rectangle. Unlike cylindrical batteries, these are designed to maximize space efficiency and provide high energy density in compact form factors. They are widely used in devices like smartphones, drones, electric vehicles, power banks, and even household items like smoke detectors and remote controls.

What makes square batteries unique is their construction. Their flat design allows manufacturers to make better use of internal space, leading to improved performance in terms of energy storage and power output. They also offer flexibility in design, making them suitable for a variety of applications, from small electronics to large energy storage systems.

Square batteries come in both rechargeable and non-rechargeable forms, covering a wide range of voltages, sizes, and chemistries to meet diverse needs.

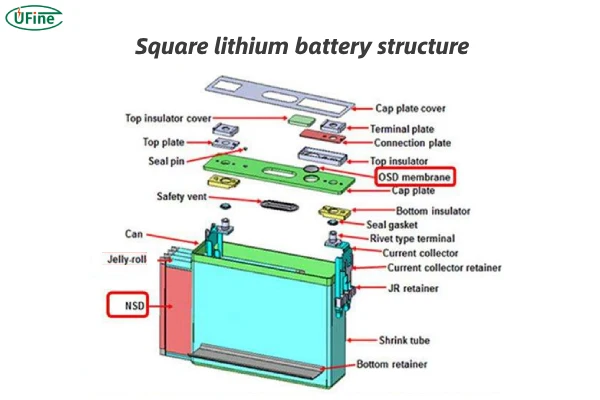

Part 2. Basic composition of square batteries

The functionality of square batteries relies on several carefully engineered components that work together to store and deliver energy. Let’s explore these components in detail:

1. Cathode: The positive electrode, made from materials like lithium iron phosphate (LiFePO4), manganese dioxide, or cobalt oxide, depending on the battery’s chemistry.
2. Anode: The negative electrode, usually composed of graphite or other carbon-based materials, responsible for storing lithium ions during charging.
3. Electrolyte: A liquid, gel, or solid substance that enables the movement of ions between the cathode and anode.
4. Separator: A thin, porous layer that prevents the cathode and anode from coming into direct contact, avoiding short circuits.
5. Current Collectors: Metal layers (usually aluminum and copper) that facilitate the flow of current within the battery.
6. Battery Housing: The external casing, often made of aluminum or steel, provides structural integrity and protection against external damage.
7. Safety Features: Includes vents, thermal cut-offs, and pressure-relief mechanisms to prevent overheating or overpressure scenarios.

Part 3. Types of square batteries

Square batteries come in different forms depending on their chemistry and use case. Some are tiny and lightweight, while others are designed for industrial-scale power systems.

The most common types include 9V alkaline batteries, lithium prismatic batteries, lithium polymer square batteries, and flat alkaline batteries. Each one serves a different purpose.

For example, 9V square batteries are commonly used in smoke detectors and test equipment. Meanwhile, square lithium batteries are more common in modern electronics, medical devices, and energy storage.

What’s interesting is that square lithium batteries are becoming more popular as devices get thinner and more compact. Manufacturers prefer square batteries because they can design around them more easily.

Part 4. Square battery sizes

Square batteries vary significantly in size — from small coin-sized lithium cells to large industrial battery modules.

One of the key advantages of square batteries is their availability in different sizes. This flexibility allows them to meet the specific demands of a wide array of devices and industries.

Common Sizes

1. Small Sizes (e.g., 40mm x 30mm): Perfect for compact devices like smartphones, fitness trackers, and portable medical equipment.
2. Medium Sizes (e.g., 70mm x 100mm): Frequently used in laptops, drones, and power tools, offering a balance between size and capacity.
3. Large Sizes (e.g., 200mm x 300mm or larger): Typically found in electric vehicles, solar energy storage systems, and industrial machinery.

Square batteries can also be custom-sized to fit unique requirements, making them a versatile choice for manufacturers.

Here are some common square battery sizes:

Small square battery vs large square battery

Small square batteries are typically used in compact electronics. Think of wearable devices, Bluetooth trackers, and medical sensors. These batteries are lightweight and often designed as lithium polymer or prismatic lithium cells.

Large square batteries, on the other hand, are used in:

• Solar energy storage
• Industrial equipment
• Electric vehicles
• Backup power systems

Interestingly, large square batteries are becoming more common in renewable energy. According to U.S. Department of Energy, prismatic lithium batteries are widely used in stationary energy storage due to their high energy density and scalability.

Part 5. Square lithium battery and chemistry types

Square batteries are available in a range of chemical compositions, each with its strengths and limitations:

1. Lithium-ion (Li-ion): Known for high energy density, lightweight design, and long cycle life. These are common in electronics and electric vehicles.
2. Lithium Iron Phosphate (LiFePO4): Renowned for stability, safety, and longer lifespans, making them ideal for energy storage and EVs.
3. Nickel Metal Hydride (NiMH): An eco-friendly choice often used in hybrid vehicles and household appliances.
4. Alkaline: Non-rechargeable and affordable, often used in everyday items like toys and remotes.
5. Lead-Acid: Heavier and less energy-dense but still widely used in industrial and automotive applications due to their affordability.

Choosing the right chemistry depends on the specific requirements of the device or application.

Square lithium batteries come in several chemistry types, each with different characteristics.

Lithium-ion square batteries offer high energy density and long cycle life. They’re commonly used in consumer electronics and industrial equipment.

Lithium iron phosphate (LiFePO4) square batteries are known for their safety and long lifespan. These are often used in solar storage and electric vehicles.

Lithium polymer square batteries are lightweight and flexible, making them ideal for compact electronics and wearable devices.

Each chemistry offers a different balance of safety, performance, and cost.

Part 6. Common square battery voltages

Square batteries come in various voltage ratings, each suited for different applications. Let’s break them down:

• 1.5V Batteries: Often used in toys, remote controls, and flashlights. These are typically single-use, non-rechargeable options.
• 3.2V Batteries: Commonly LiFePO4 chemistry, used in energy storage systems and electric vehicle battery packs.
• 3.7V Batteries: Widely utilized in smartphones, drones, and power banks due to their high energy density.
• 9V Batteries: Found in smoke detectors, medical devices, and small household gadgets.
• 12V Batteries: Used in backup power supplies, small appliances, and some renewable energy systems.

Before You Buy 9V Battery Must-Knows

Part 7. Square battery pros and cons

Pros

• Space Optimization: The flat design allows for better packing and increased energy density.
• Versatility: Available in various sizes, voltages, and chemistries to meet diverse needs.
• Improved Thermal Management: Better heat dissipation compared to cylindrical batteries.
• Customizable: Can be tailored for specific applications, offering design flexibility.

Cons

• Higher Cost: More complex manufacturing processes can make square batteries pricier.
• Risk of Swelling: Prone to swelling under certain conditions, which can impact performance.
• Durability Concerns: Larger square batteries may be less physically robust compared to cylindrical ones.

Despite these drawbacks, their advantages often outweigh the limitations, especially in high-demand applications.

Part 8. How long does a square battery last?

The lifespan of a square battery depends on its chemistry and usage conditions:

• Lithium-ion Batteries: Last 300–500 charge cycles or 2–3 years.
• LiFePO4 Batteries: Can endure up to 2,000 cycles, lasting 5–10 years.
• Alkaline Batteries: Single-use, lasting months to years, depending on usage.
• Lead-Acid Batteries: 3–5 years with proper maintenance.

Proper care, such as avoiding extreme temperatures and overcharging, can significantly extend the life of square batteries.

Part 9. Is a square battery rechargeable?

Yes, many square batteries are rechargeable, particularly those using lithium-ion, LiFePO4, or NiMH chemistries. Rechargeable square batteries are a cost-effective and environmentally friendly solution, reducing the need for frequent replacements.

However, not all square batteries are rechargeable. For example, alkaline square batteries are typically single-use. Always check the label to ensure the battery type matches your needs.

Part 10. FAQs

What devices commonly use square batteries?

Square batteries are often used in smoke detectors, medical devices, handheld instruments, alarm systems, and industrial sensors. Their compact shape makes them ideal for devices where space is limited.

Are square batteries rechargeable?

Some square batteries are rechargeable, especially square lithium batteries like Li-ion, LiFePO4, and lithium polymer types. However, traditional square batteries such as alkaline 9V batteries are usually not rechargeable.

Do square batteries last longer than cylindrical batteries?

Not necessarily. Battery lifespan depends more on chemistry, usage, and quality rather than shape. However, square lithium batteries often offer longer cycle life due to modern battery technology.

Why are large batteries often square?

Large batteries are often square because the shape allows better stacking and space efficiency. This is especially useful in energy storage systems, electric vehicles, and industrial equipment.

What voltage do square batteries typically have?

Square batteries can range from small 3.7V lithium batteries to large 48V or higher battery packs. The voltage depends on the battery chemistry and application.
