2600mAh 18650 Battery: Specifications, Models, and Selection Guide

A 2600mAh 18650 battery is a rechargeable lithium-ion battery in the 18650 cylindrical format with approximately 2.6Ah of charge capacity. However, two 2600mAh cells can differ significantly in discharge current, dimensions, protection, terminal style, and intended application.

This guide compares several 2600mAh 18650 battery options and explains the key specifications to check for flashlights, battery packs, power devices, and product-development projects.

Disclosure: Ufine Battery publishes this article and is included in the comparison because it supplies 2600mAh 18650 batteries and custom battery pack configurations. This is a product comparison and selection guide, not an independent ranking of battery brands.

Key Takeaways

• Capacity alone does not determine compatibility or performance.
• Discharge current, dimensions, protection, terminal style, and voltage all affect application fit.
• Protected batteries can be longer than standard flat-top cells.
• Always verify specifications from the current product datasheet.

Part 1. 2600mah 18650 battery: What does 2600mah mean?

An 18650 battery is a cylindrical rechargeable cell format typically around 18mm in diameter and 65mm in length. Actual dimensions can vary slightly, especially for protected or button-top batteries.

The 2600mAh rating describes battery capacity. In ideal conditions, 2600mAh theoretically represents 2600mA for one hour or 1300mA for two hours. Real runtime depends on device load, discharge rate, cutoff voltage, temperature, and system efficiency.

If you want to understand the relationship between capacity and runtime in more detail, see our guide to what a 2600mAh battery rating means.

Capacity does not determine power capability. A moderate-current 2600mAh cell and a high-power 2600mAh cell may store similar amounts of charge but support very different loads.

Part 2. 2600mah 18650 battery comparison: How this guide was built

This comparison uses publicly available manufacturer and product information. The batteries are compared by cell type, discharge capability, physical configuration, intended application, and sourcing requirements.

Ufine has not independently laboratory-tested the third-party products below, so the models are not ranked as “best overall.” Specifications and availability should always be confirmed from the current product datasheet before purchasing or designing a battery system.

Part 3. 2600mah 18650 battery models compared

Ufine 18650 2600mAh battery: Custom pack option

Ufine supplies 2600mAh 18650 battery and pack options for projects that require defined voltage, mechanical dimensions, protection, wiring, or pack configuration rather than only a loose replacement cell.

Main products / capabilities:

• 2600mAh 18650 lithium-ion battery options
• Series and parallel battery pack configurations
• Application-specific protection, wiring, and mechanical configurations

Best fit: Engineers and product-development teams that need an 18650-based battery pack matched to specific electrical and mechanical requirements.

Key consideration: Confirm the exact cell, continuous and peak load, BMS or protection requirements, pack dimensions, wires, and connector before production.

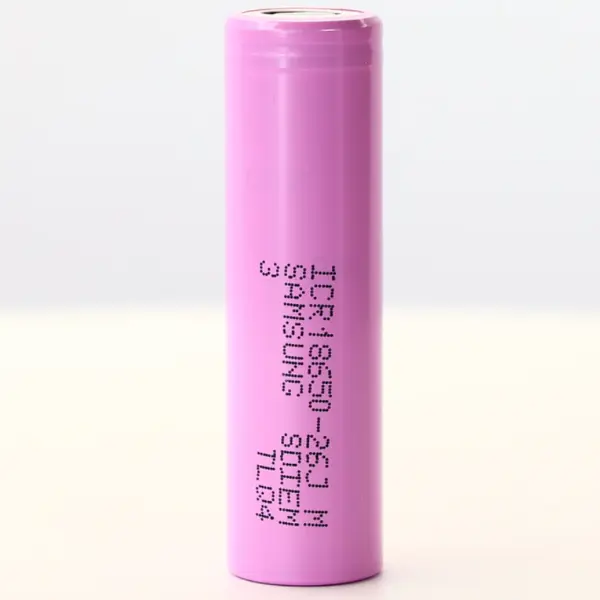

Samsung 26J 18650 2600mAh: Moderate-current cell

The Samsung 26J 2600mAh 18650 cell is commonly specified as a 3.6V unprotected flat-top cell with a 5.2A continuous discharge rating. This makes it fundamentally different from high-power 2600mAh cells even though the capacity is the same.

Best fit: Properly engineered battery packs with moderate current requirements that remain within the cell specification.

Key consideration: Samsung SDI advises using lithium-ion cells as part of protected battery packs or systems rather than as loose consumer cells. Its lithium-ion battery safety guidance should be reviewed when integrating Samsung cells.

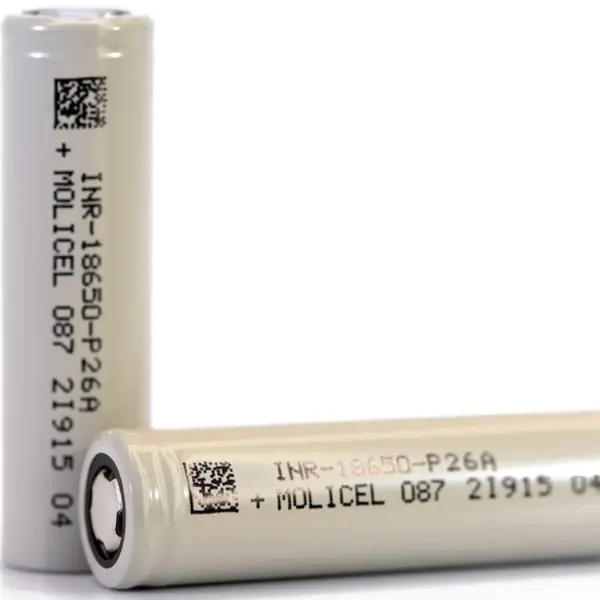

Molicel P26A 18650 2600mAh: High-power cell

The Molicel INR-18650-P26A is a power-oriented 18650 cell rated at 2600mAh typical capacity, 3.6V nominal voltage, and up to 35A discharge current. Molicel lists applications including power tools, garden tools, and home appliances.

Best fit: Applications that require substantially higher current than a moderate-current 2600mAh 18650 cell can provide.

Key consideration: A high cell discharge rating does not replace proper BMS, conductor, thermal, protection, and pack-level design.

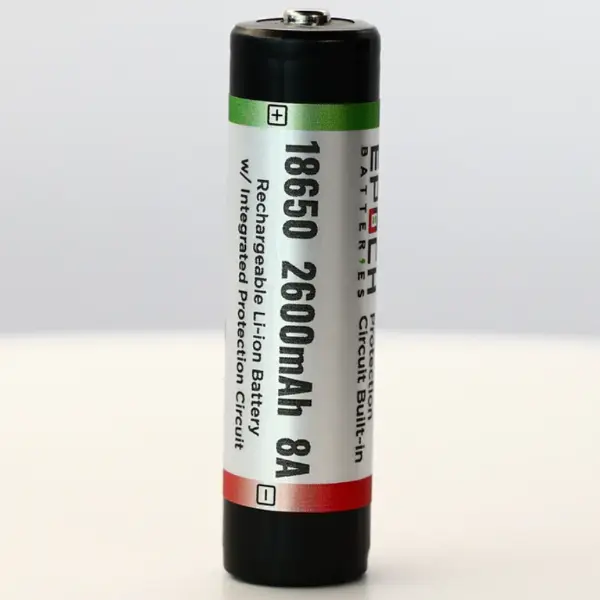

Epoch 18650 2600mAh 8A: Protected button-top option

The original version of this article included an Epoch 2600mAh 8A protected button-top battery. Its exact current model specifications and availability should be reconfirmed before purchase.

Best fit: Devices specifically designed for a compatible protected button-top 18650 battery.

Key consideration: Protected batteries can be longer than standard flat-top cells because the protection circuit and terminal assembly add to the finished dimensions.

Part 4. 18650 battery 2600mah specifications: Key engineering criteria

A label such as “3.7V 2600mAh” is not enough to determine whether two 18650 batteries are interchangeable. The following specifications have a greater impact on compatibility and performance.

Capacity and battery energy

Capacity measures stored charge, while watt-hours also account for battery voltage. A 2600mAh cell at 3.6V provides approximately 9.36Wh of nominal energy.

For a broader explanation of the format and electrical characteristics, see our 18650 lithium-ion battery guide.

Continuous and peak discharge current

Discharge capability is one of the biggest differences between 2600mAh cells. Devices with high current demand require a cell whose continuous and peak discharge limits match the actual load.

Our guide to 18650 high-drain battery selection explains how discharge current affects cell selection for higher-load applications.

Nominal voltage and charging compatibility

Many lithium-ion 18650 cells are rated around 3.6V or 3.7V nominal voltage and use a specified lithium-ion charging profile. Always follow the exact cell or battery pack datasheet for charge voltage, charge current, and temperature limits.

Protected vs. unprotected 18650 batteries

An unprotected cell relies on the battery pack or host device for protection. A protected battery adds protection electronics, which can affect both current limits and finished dimensions.

18650 dimensions, flat top, and button top

The 18650 designation describes a cell format rather than a guaranteed finished-battery size. Manufacturer tolerances, terminals, protection boards, and wrappers can change the actual dimensions.

Check the datasheet and available battery compartment before approving a replacement cell or battery pack.

Part 5. 2600mah 18650 battery applications: Flashlights, packs, and power devices

2600mAh 18650 battery for flashlights

A 2600mAh 18650 battery can be suitable for a flashlight when its voltage, discharge capability, terminal style, protection type, and dimensions match the device requirements. High-output flashlights may need greater discharge capability than basic models.

For mechanical compatibility, see our flashlight battery size and type guide.

2600mAh 18650 battery for battery packs

18650 cells can be arranged in series or parallel to meet different voltage, capacity, and current requirements. Cell matching, BMS design, current capability, and thermal management should be evaluated at pack level.

2600mAh 18650 battery for power tools and motor loads

Motors and other high-load devices can create significant startup and operating currents. For these applications, discharge capability is often more important than choosing a cell based only on its 2600mAh capacity.

2600mAh 18650 vape battery compatibility

A 2600mAh rating does not automatically make an 18650 cell suitable for a vape device. Compatibility depends on the verified discharge rating, device design, battery condition, and the applications permitted by the cell manufacturer.

For example, Samsung battery safety guidance does not support using its individual lithium-ion cells as loose consumer batteries. Always follow the battery manufacturer’s and device manufacturer’s safety requirements.

Part 6. 2600mah 18650 battery suppliers: What buyers should verify

When sourcing 2600mAh 18650 batteries for a product or repeat-order program, compare the actual cell and pack specification rather than relying only on capacity or price.

• Exact cell model and traceability: Confirm the cell manufacturer, model, production identification, and consistency between samples and repeat orders.
• Discharge requirements: Verify continuous current, peak current, cutoff voltage, and the actual device load.
• Mechanical and protection configuration: Confirm dimensions, terminal type, BMS or protection circuit, wires, and connector requirements.
• Technical documentation: Request the applicable datasheet, safety information, transport documents, and required certification records for the supplied battery.
• Supply conditions: Check MOQ, production lead time, customization requirements, and continuity of the specified battery configuration.

For larger-volume projects, our guide to sourcing 18650 batteries in bulk explains additional factors to review when evaluating supply options.

Part 7. 2600mah 18650 battery safety and charging compatibility

Use only a charging method compatible with the battery’s specified voltage, charge current, and lithium-ion charging requirements. Do not use cells that are dented, swollen, leaking, overheated, or have damaged insulation.

When using unprotected 18650 cells, the battery pack or host system must provide appropriate electrical and thermal protection according to the cell specification and application requirements.

Part 8. FAQs about 2600mah 18650 batteries
