The Ufine 104050 is a rechargeable lithium polymer pouch battery with 3.7V nominal voltage, 2500mAh capacity, and 9.25Wh nominal energy. Its listed maximum size is 10 × 40 × 52mm. The standard version includes a protection board. An MSDS is available for review.

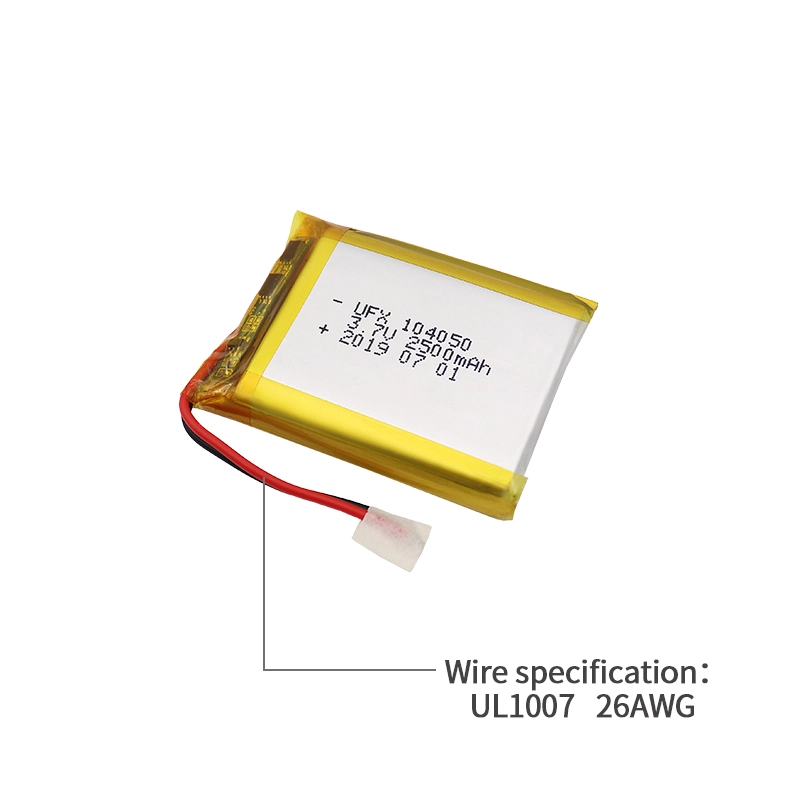

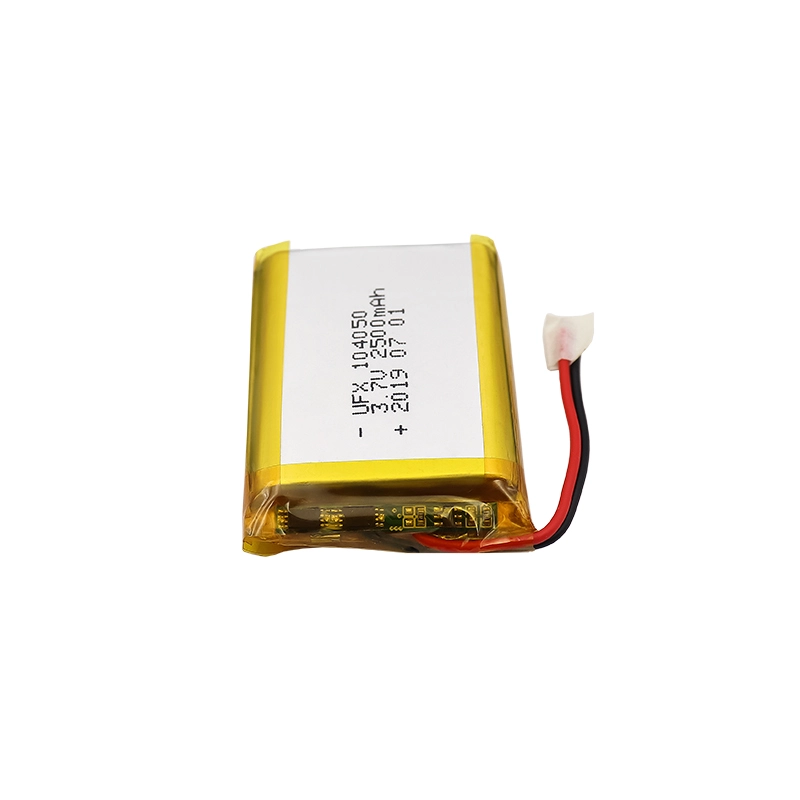

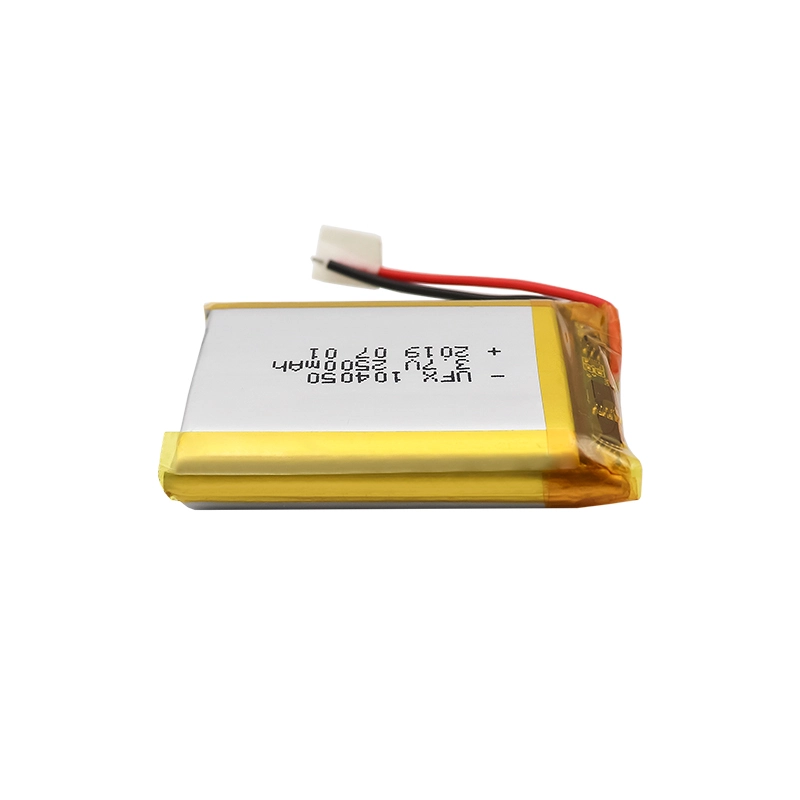

Ufine 104050 3.7V 2500mAh rechargeable pouch battery with wire leads and connector

104050 Battery Performance

Check the battery current, cycle rating, storage limits, and temperature range. See Specs for the full ratings.

  • Battery Output
  • Cycle Life
  • Storage
  • Temperature
Lithium polymer battery discharge performance chart

Match the Output to Your Device

The listed standard discharge current is 500mA (0.2C). The listed maximum is 2500mA (1C). Check the device load against the rating of the finished battery assembly.

  • Measure normal current and startup peaks.
  • Check the current ratings of the wires and connector.
  • Review loads above the listed limit separately.
Learn About Discharge Rate
Lithium polymer battery cycle life chart

Check Capacity After Repeated Use

The specification lists at least 80% capacity after 500 cycles. Review the matching test report for the charge rate, discharge rate, temperature, and voltage limits. Actual battery life depends on how the device is used.

  • Compare cycle results under the same test conditions.
  • Include heat and daily charging patterns in your review.
  • Use device tests to set a practical service-life target.
Learn About Cycle Life
Lithium polymer battery storage and self-discharge chart

Choose Storage Limits by Duration

Storage temperature limits depend on how long the battery is stored. Use the matching range in Specs. A short-term temperature limit does not apply to long-term storage.

  • Store the battery in a cool, dry place.
  • Protect the connector from short circuits.
  • Account for device standby drain during storage.
Learn About Battery Storage
Lithium polymer battery discharge performance at different temperatures

Check Temperature Inside the Device

The listed charging range is 0°C to 45°C. The discharge range is −20°C to 60°C. The discharge range does not apply to charging.

  • Check battery temperature inside the closed housing.
  • Keep the battery away from parts that produce heat.
  • Test available runtime at the expected use temperature.
Learn About Battery Temperature

Fit the 104050 Into Your Device

Plan for the battery body, wire route, connector, and assembly clearance.

Plan Around the 10 × 40 × 52mm Size

The listed maximum battery size is 10 × 40 × 52mm. Use the final drawing to confirm the fit. The housing should hold the battery without squeezing the pouch.

  • Battery space: Check thickness, width, length, and clearance.
  • Wire route: Avoid sharp edges, tight bends, and pinched leads.
  • Connector: Confirm the part number and pin polarity.
  • Protection: The standard version includes a PCM.
  • Temperature sensing: The standard version has no NTC. Share your sensor needs for review.
Review Your 104050 Battery Fit
104050 pouch battery beside an open handheld instrument showing battery clearance and wire space

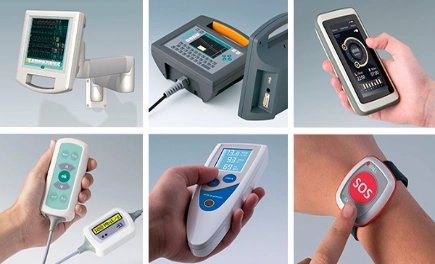

Where the 104050 Can Be Used

The 104050 is an option for portable rechargeable products with room for its pouch format. Possible uses include handheld instruments, smart hardware, LED lighting, portable speakers, and beauty devices.

For lighting, check the load at full brightness. For speakers or motor-driven products, check brief current peaks. Final suitability depends on battery space, current limits, and the charging circuit.

104050 LiPo battery with handheld instrument, smart controller, LED light, speaker, and beauty device examples

How We Check the 104050

Quality checks cover materials, assembly, electrical values, and finished batteries.

View the Production Process
Concept illustration of pouch film and battery components under optical inspection
Material Check

Materials and key parts are checked before production.

Concept illustration of an enclosed battery assembly station with aligned fixtures and machine vision inspection
Assembly Check

Assembly checks cover insulation, connections, and wire routing.

Concept illustration of an 104050 pouch battery connected to a dedicated electrical test fixture
Electrical Check

Electrical values are checked against the approved battery specification.

Concept illustration of a final inspection checklist, assembly drawing, and organized packing materials
Final Inspection

Finished batteries are checked before release and shipment.

Adapt the 104050 Assembly to Your Device

We can review the connection and protection details for your project.

What We Can Review
  • Connector: part number, current rating, and polarity
  • Wire: length, gauge, and exit direction
  • Protection: PCM settings for the device load
  • Temperature sensing: optional NTC requirements
  • Installation: insulation and assembly layout
What to Send Us
  • 01
    Available battery space or an enclosure drawing.
  • 02
    Normal current, peak current, and peak duration.
  • 03
    Connector details and charging requirements.
  • 04
    Use temperature and temperature sensing needs.
  • 05
    Sample quantity, target market, and required documents.

Compare 3.7V LiPo Batteries by Size and Capacity

Compare these options if the 104050 does not match your battery space or capacity target. All sizes below are maximum dimensions. The size notes compare each option with the 104050. Check current limits, connector polarity, and protection before choosing a replacement.

Voltage Model Capacity Max. Size (mm) Selection Notes
3.7V 903759 2500mAh 9 × 37 × 63 Thinner, narrower, and longer
3.7V 954058 2500mAh 9.5 × 40 × 60 Thinner with a longer body
3.7V 104060 2800mAh 10 × 40 × 62 Higher capacity with a longer body
3.7V 123252 2500mAh 12 × 32 × 54 Thicker with a narrower body
3.7V 804258 2500mAh 8 × 42 × 60 Thinner with a wider, longer body
3.7V 5025180 2500mAh 5 × 25 × 180 Thin, narrow, and much longer

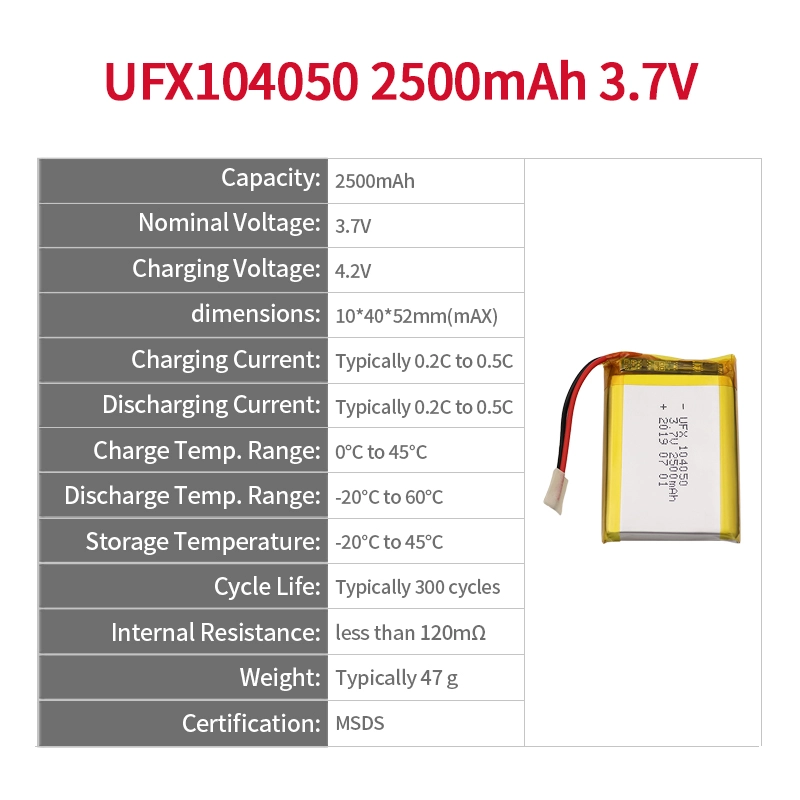

Battery Specification

  • 1. Mechanical Characteristics

    Cell 104050 PCM Yes
    NTC No Weight appr. 47g
    Configuration 1S1P
  • 2. Electrical Specification

    Capacity 2500mAh Nominal Voltage 3.7V
    Energy 9.25Wh Internal Resistance less than 120mΩ
    Max. Charge Voltage 4.2V Discharge Cut Off 2.75V
    Max. Charge Current 2500mA Max. Discharge Current 2500mA
    Standard Charge Current 500mA Standard Discharge Current 500mA
    Charging Temperature 0℃ to 45℃ Discharging Temperature -20℃ to 60℃
    Storage Temp.Range 1 year at -20℃ to +30℃ 3 mos. at -20℃ to +45℃ 1 mo. at -20℃ to +60℃ Cycle life 100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80%

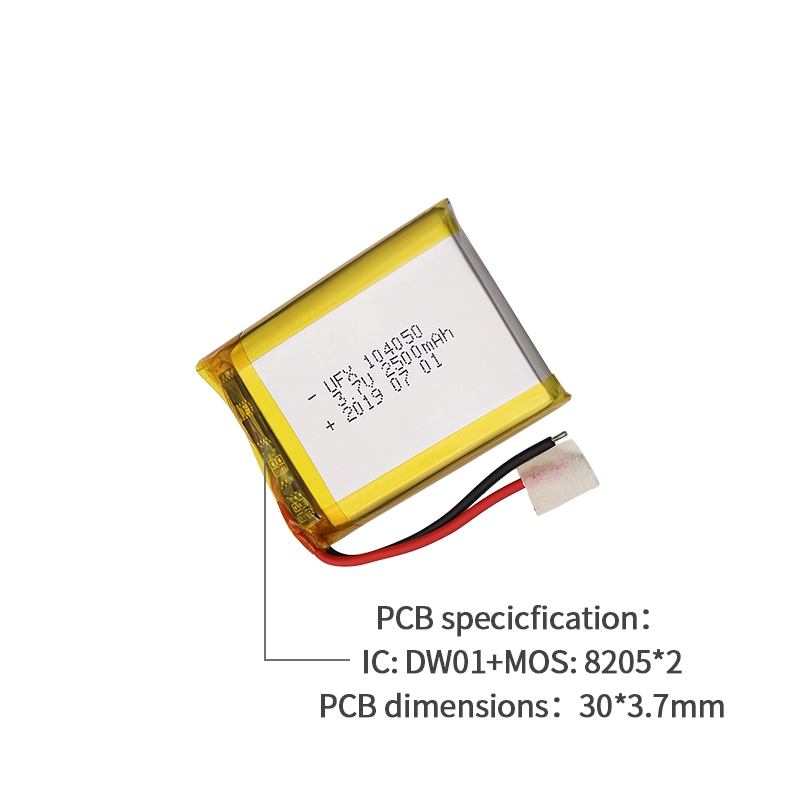

  • 3. Cell protection

    Overcharge Detection 4.28V ±50mV (80 to 200msec delay, release 4.08V ±50mV) Overdischarge Detection 2.4V ±100mV (40 to 120msec. delay, release 3.0V ±100mV)
    Overcurrent Detection 2.5A to 4.5A (5 to 10msec. delay) Short protection Yes
Download Product Datasheet

The Ufine 104050 is a 3.7V 2500mAh rechargeable LiPo battery with 9.25Wh of nominal energy. It uses a single pouch cell with a protection board.

Use this guide to assess your runtime target, compare battery shapes, and plan sample tests. The Specs tab lists the full ratings.

Part 1. Set a daily power target for the 104050

Start with how often the user should recharge the device. Then measure the power used in each mode, including sleep, normal use, and short high-load tasks.

Daily battery use (mAh) = sum of current (mA) × time (hours) for each mode

  • Active mode: 200mA for 2 hours uses 400mAh.

  • Sleep mode: 2mA for 22 hours uses 44mAh.

  • Total use in this example: 444mAh per day.

A 2500mAh battery would provide about 5.6 days in theory. This assumes the currents are measured at the battery and the full rated capacity is available. Leave a reserve for aging, temperature, and early device shutdown.

Part 2. Compare 104050 alternatives by shape, not just capacity

Two 2500mAh batteries can need very different spaces. The 104050 has a listed maximum size of 10 × 40 × 52mm. A thinner option may be wider or much longer.

  • 104050: a 10mm-thick format with a 40 × 52mm body footprint.

  • 123252: a thicker, narrower option at 12 × 32 × 54mm maximum.

  • 804258: a thinner, wider option at 8 × 42 × 60mm maximum.

These dimensions describe different shapes, not direct replacements. Compare the finished drawings and leave room for wiring. Do not force a thicker battery into a shallow housing.

Part 3. Calculate 104050 runtime for a 5V load

If the device uses a boost circuit, the current at 5V is different from the current drawn from the battery. Use energy in Wh for a first estimate.

Runtime (hours) ≈ 9.25Wh × converter efficiency ÷ device power (W)

  • Example load: 5V at 200mA equals 1W.

  • Assumed converter efficiency: 85%.

  • Estimated runtime: 9.25 × 0.85 ÷ 1 ≈ 7.9 hours.

This is a planning estimate, not a tested result. Converter efficiency changes with load. The device may also stop before the battery delivers its full nominal energy.

Part 4. Check the 104050 with all device functions running

A device may pass tests with each function used alone but fail when several functions run together. Test the combinations users are likely to select.

  • Turn on the screen and wireless link at the same time.

  • Test lights at full brightness while other functions run.

  • Record motor startup or speaker peaks where these loads apply.

  • Repeat demanding tasks at a lower battery charge level.

The listed maximum discharge current is 2500mA. Review the complete current trace, including brief peaks. A PCM trip level is not a normal operating limit.

Part 5. Plan how the 104050 charges inside the product

Use a single-cell Li-ion CC/CV charging circuit with a 4.2V charge limit. The listed standard charge current is 500mA. Confirm the final setting against the approved battery specification.

  • Decide whether the device can run while charging.

  • If it can, review how power is shared between the battery and device.

  • Measure charging temperature with the housing closed.

  • Review NTC needs early. The standard battery has no NTC sensor.

Charging time depends on the starting charge level, charger settings, and device power use. Capacity divided by charge current alone does not give the full charging time.

Part 6. Turn 104050 sample results into an approved design

Set clear pass targets before testing. This makes it easier to decide whether the standard battery meets your needs or whether an assembly change is required.

  • Minimum runtime under a defined device use pattern.

  • Reliable startup and no resets during normal peak loads.

  • Charging performance within the approved temperature limits.

  • A secure fit without pressure on the pouch or pinched wires.

  • An approved drawing, connector, wiring, and PCM configuration.

Send your results with the device settings and test temperature. Include the sample quantity and required project documents when requesting a revised assembly or production quote.

FAQs

  • What are the maximum dimensions of the 104050 battery?

    The listed maximum size is 10 × 40 × 52mm. Allow extra space for the wires, connector, and installation clearance. Confirm the final drawing before fixing the housing.
  • Can the 104050 battery deliver 5C output?

    No 5C rating is listed for this model. Its listed maximum discharge current is 2500mA (1C). Higher loads and short current peaks need a separate review.
  • How long can the 104050 power a 250mA load?

    About 10 hours in theory, based on 2500mAh ÷ 250mA measured at the battery. Actual runtime depends on temperature, usable capacity, battery age, and the device's shutdown voltage.
  • Can the 104050 power a device that needs a fixed 5V supply?

    Yes, with a suitable boost circuit. The battery provides 3.7V nominal voltage, not a fixed 5V output. Check converter efficiency and battery current at the device's highest load.
  • What charger should I use for the 104050?

    Use a single-cell Li-ion CC/CV charger with a 4.2V charge limit. The listed standard charge current is 500mA. The PCM does not replace the charging circuit.
  • Does the standard 104050 include a temperature sensor?

    No. The standard version includes PCM protection but no NTC sensor. If your charger needs temperature sensing, share the sensor value and wiring requirements for review.
  • Can I charge the 104050 below 0°C?

    Charging below 0°C is outside the listed charging range of 0°C to 45°C. The −20°C to 60°C range applies to discharge only.
  • Will another 2500mAh pouch battery fit the same space?

    Not necessarily. Batteries with the same capacity can have different thicknesses, widths, and lengths. Compare the finished drawings, current ratings, connector polarity, and protection before replacing the 104050.
  • Which document is listed for the 104050 battery?

    The supplied product information lists an MSDS. This provides safety information and is not a product certification. Request confirmation of any model-specific reports or approvals your project needs.
