What Is a Battery Array?

A battery array is a system of multiple batteries connected together to store and deliver electricity as a single unit. It is widely used in solar battery array storage, backup power systems, and industrial energy applications where stable and scalable power is required.

Unlike a single battery, a battery array system can increase voltage, capacity, or both. This makes it essential for modern energy systems, especially renewable energy setups.

Key Takeaways

• A battery array combines multiple batteries to increase voltage, capacity, or both.
• It is critical for solar array battery storage and backup power systems.
• Lithium-ion is often the best battery for solar array due to high efficiency and long life.
• Proper design (series vs parallel) directly impacts system performance and safety.
• Battery arrays are scalable, but require matching batteries and proper protection systems.

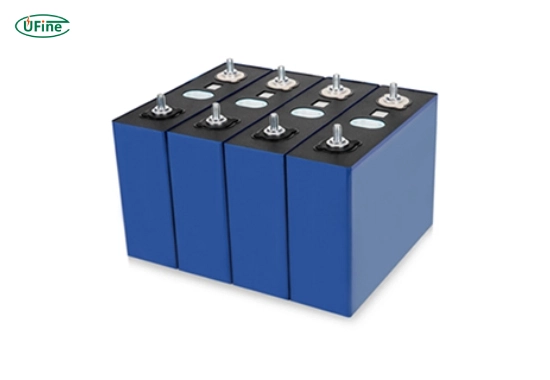

Part 1. What is a battery array?

A battery array (or battery arrays system) is a group of interconnected batteries configured to meet specific voltage and energy storage requirements.

These batteries can be connected in:

• Series → increases voltage
• Parallel → increases capacity (Ah)
• Series-parallel → balances both

Battery arrays are commonly used in:

• Solar energy systems
• Electric vehicles (EVs)
• UPS and backup systems
• Off-grid power setups

👉 For system-level design differences, see: Understanding Battery Packs vs Battery Arrays

Part 2. How does a battery array work?

A battery array system works by combining multiple battery units into a unified electrical network.

Connection Methods

• Series Connection
  • Adds voltage
  • Example: 4 × 12V = 48V system
• Parallel Connection
  • Adds capacity (Ah)
  • Example: 4 × 100Ah = 400Ah
• Series-Parallel
  • Used in most real systems
  • Balances voltage and storage capacity

This flexibility is why battery arrays are ideal for solar array battery storage, where both voltage and capacity must match inverter and load requirements.

Part 3. Types of battery arrays

1. Lead-Acid Battery Arrays

• Low cost, mature technology
• Used in UPS and backup systems
• Requires maintenance (watering, equalization)

2. Lithium-Ion Battery Arrays (Most Popular)

• High energy density
• Long cycle life (2000–6000 cycles)
• Minimal maintenance
• Best choice for solar battery array systems

3. Nickel-Based Battery Arrays

• Performs well in extreme temperatures
• Used in aviation and industrial systems
• Moderate cost and performance

4. Flow Battery Arrays

• Designed for large-scale storage
• Long lifespan (10,000+ cycles)
• Used in grid-level battery arrays

📌 According to the U.S. Department of Energy, lithium-ion dominates modern energy storage due to efficiency and scalability.

Part 4. Benefits of battery arrays

• Higher energy storage → supports long runtime
• Stable power output → critical for sensitive systems
• Scalable design → expand as demand grows
• Reliable backup power → prevents downtime
• Optimized for renewables → stores excess solar/wind energy

For solar array battery storage, arrays help smooth intermittent energy supply and improve system efficiency.

Part 5. Common applications of battery arrays

1. Solar Energy Systems

• Store excess power from solar panels
• Enable night-time or off-grid usage
• Core of solar battery array systems

2. Electric Vehicles (EVs)

• Provide high voltage and capacity
• Support long driving range

3. UPS & Backup Power

• Protect data centers and hospitals
• Ensure uninterrupted operation

4. Off-Grid Systems

• Used in remote or rural locations
• Combined with solar or wind systems

5. Industrial Energy Storage

• Peak shaving and load shifting
• Reduce electricity costs

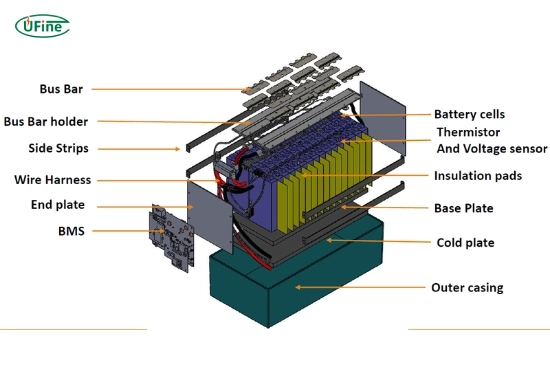

Part 6. How to build a battery array?

Step-by-Step Guide

• Calculate power needs
  • Voltage (V) and capacity (Ah or kWh)
• Choose battery type
  • Lithium-ion is usually the best battery for solar array
• Select configuration
  • Series / Parallel / Hybrid
• Design protection system
  • Fuses, breakers, and BMS (Battery Management System)
• Install monitoring
  • Voltage, temperature, SOC tracking

Part 7. Key factors before installing a battery array

1. Capacity & Voltage Matching

• Ensure compatibility with inverters and loads.

2. Battery Consistency

• Use identical batteries (same brand, age, and specs).

3. Thermal Management

• Prevent overheating with proper ventilation or cooling.

4. Cycle Life & Degradation

• Lithium-ion offers longer service life.

5. Safety & Standards

• Battery array systems must comply with established safety and certification standards to reduce fire, electrical, and thermal risks.

Key considerations include:

• Follow energy storage safety guidelines such as those from the National Fire Protection Association, especially NFPA 855 for stationary energy storage systems
• Use batteries and components that meet recognized certifications (e.g., UL 1973, UL 9540)
• Integrate a Battery Management System (BMS) for overcharge, over-discharge, and temperature protection
• Ensure proper system grounding and circuit protection (fuses, breakers)
• Design for fault isolation to prevent cascading failures in large battery arrays

These practices are critical for solar battery array storage systems, where high energy density increases safety requirements.

Part 8. Battery array maintenance best practices

• Monitor voltage and state of charge (SOC)
• Avoid deep discharge cycles
• Keep terminals clean
• Replace weak or aging batteries
• Ensure proper ventilation

Well-maintained battery arrays can significantly extend system lifespan.

Part 9. Challenges of battery arrays

• High upfront cost (especially lithium systems)
• System complexity (wiring, BMS, balancing)
• Battery aging mismatch
• Safety risks if poorly designed

Proper engineering and component selection reduce these risks.
