Your Comprehensive Guide to Charge 12V Battery

From car batteries to power tool packs, the 12-volt trusty battery keeps our everyday devices humming from car batteries to power tool packs. But a dead or discharged battery can cause inconvenience in our work. This guide will be your one-stop shop for charging a 12v battery. We will clarify the concepts about choosing the right charger, charging voltage information when to charge, and proper charging techniques. So, suppose you are a seasoned mechanic or a weekend warrior. In that case, this comprehensive guide will tell you how to charge a 12v battery to make your 12-volt battery ready to go.

Part 1. Understanding basics to charge 12V battery

1. Types of 12-volt battery

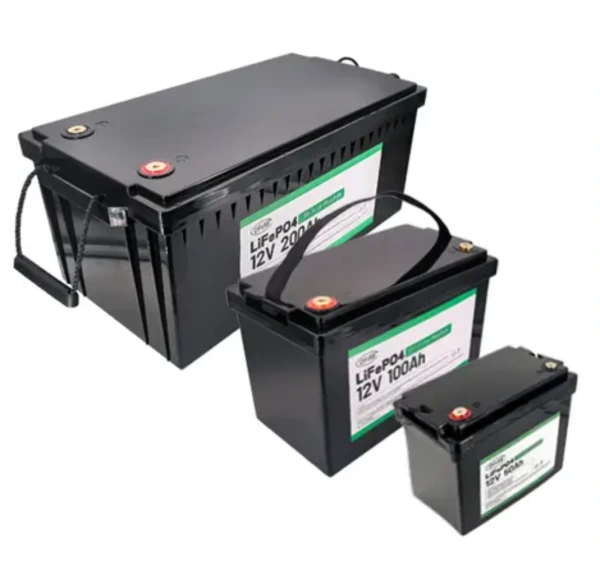

Two main types of batteries can be used as a 12v battery. The first and most famous is a 12-volt lead acid battery, as most vehicles use these batteries for starting and electrical operations. The second is a lithium ion battery, two to three times more expensive. But it is lighter weight with fast charging and longer lifespan.

2. Cells in 12-volt battery

Lithium-ion and lead acid batteries have different cell combinations to make a 12v battery. Each cell produces 3.6 volts in a lithium-ion, meaning 3 to 4 cells in a series make a 12-volt battery. On the other hand, a lead acid battery consists of 6 cells in series, with each cell of 2.1 volts, making a total of 12.6 to 12.8 volts.

3. Stages to charge 12v battery

Usually, all types of 12v batteries work on the principle of a three-stage charging method. In the first stage of a bulk charge, when a 12v battery needs to be charged, a higher current passes inside the battery to replenish a significant portion. In the second stage of constant voltage, the battery takes a lower current to charge at a steady pace. The charging voltage remains constant to ensure precise and controlled charge. In the last stage, the charge makes sure to pass a lower amount of voltage as a trickle charge to charge a 12v battery. It helps to top up the battery for extended storage and longer usage.

Part 2. Signs that you need to charge 12v battery

Recognizing a discharge battery is quite easy as a newbie can understand that it needs to charge a 12v battery. However, for your information, some early signs can make you prepared to charge a 12v battery. The first sign is the feeling of power loss from an electronic gadget. Suppose the application does not have a charge percentage. In that case, you will have to feel the performance ability of the electronic gadget. For example, if it is a car, you will see a low tail light or the engine cranking slower than usual. Therefore, you need to understand that these are the signs of a battery’s way of communication. So you should react to these signs and prepare to charge a 12v battery.

Part 3. Choosing the right charger to charge 12V battery

When you charge a 12v battery, it is crucial to have a proper charger to ensure proper charging of the battery. It is not as simple as plunging any charger into the socket to charge a 12v battery. Choosing the right charger is very important because each battery has different types and ampere-hours. Therefore, we have made different checks to ensure before plugging any charger.

  • Take into consideration your battery and chemistry, like lead acid or lithium-ion
  • The charging current should be compatible with the battery
  • Check the charging voltage of the charger and match it with the battery’s 12 volts.
  • A charger with three three-step charging capability can enhance battery life and backup
  • Chargers with overcharging protection can provide an extra layer of safety

Additionally, you should remember that the charger to charge a 12v battery should have an output of 10% to 20% of the battery’s Ah rating. For example, if the battery has a 100ah capacity, you can use a 10 to 20-amp output charger. Moreover, if you want to know how much a charger consumes electric power, you can multiply the voltage by the amp. For example, if a charger’s DC output is 10 amp with a 12 voltage rating, it will equal 120 watts per hour and can charge a battery of 100Ah in 10 hours.

Part 4. Step-by-step guide for charging 12V battery

Now it’s time to dive into the simple steps to charge a 12v battery from low to glow without any hassles.

Step 1

First, ensure the charger is off and unplugged from any power source. This is your first step to a successful charge.

Step 2

Next, let’s connect the charger to the battery to charge the 12v battery. Take the positive (red) clamp of your charger and attach it securely to the positive terminal of your battery, marked with a plus sign (+). Then, grab the negative (black) clamp and connect it to the negative terminal, indicated by a minus sign (-). This ensures a safe and correct setup for the charging process to begin.

Step 3

Plug your charger into an electrical outlet, but before you turn it on, double-check that you’ve set it to the correct voltage and amperage suitable for the 12V battery. This approach guarantees an efficient and safe charge.

Step 4

Once you have ensured everything is set, you are ready to charge a 12v battery by powering the charger. Let the magic begin here as your battery embarks on its full-charge journey. Keep an eye on the charging process; this isn’t just about patience but precision. Monitoring the charge keeps your battery safe and ensures you unplug it at just the right moment for optimal health and longevity.

Part 5. How to know if 12 volt battery is fully charged

Most chargers have a built-in auto shut-off function when the battery is full. If you want to charge a 12v battery in such cases, you will not have to worry. However, if the charger does not automatically cut off, the charging function can cause overcharging and damage the battery. Therefore, you will need a multimeter to check the battery voltage in such cases. If the battery voltage is over 12.6 means the battery is fully charged. Besides this, if you do not have a multimeter, take a watch and not the charging time according to the battery Ah and output of the charger. Always keep an eye on it while charging the battery so that it does not overheat and lose charging terminals.

Part 6. Post-charge maintaining tips for your 12V battery

Maintaining a 12V battery is very crucial for its long-term health and performance.

  • When you have completed the job of charging the 12v battery, make sure to disconnect the charger. It is a good habit to Inspect the battery’s terminals for signs of corrosion.
  • If you see any signs, try to clean them with a wire brush and apply petroleum jelly or a terminal protector.
  • Moreover, storing the battery in a cool, dry place away from direct sunlight and extreme temperatures is good.
  • Regular checking of the battery’s charge level and condition guarantees a longer lifespan and more backup.
