Understanding 9 Volt Battery Capacity: What Do mAh and Voltage Mean?

9V battery capacity affects runtime and device performance. It is mainly measured in mAh and influenced by voltage stability and current output.

Higher mAh means longer runtime. Voltage determines device compatibility, while current affects load performance.

This guide explains 9V battery capacity, mAh meaning, voltage behavior, and how to choose the right 9V battery.

Key takeaways

• 9V battery capacity is mainly measured in mAh or Wh
• mAh defines runtime, not power output
• Voltage (9V) determines whether the device can operate
• Higher mAh = longer usage time under same load
• Battery chemistry affects voltage stability and lifespan
• Typical 9V batteries deliver limited current (amps) depending on design

Part 1. What does 9v battery capacity mean?

9V battery capacity refers to the total electrical energy stored inside the battery.

It is usually expressed in:

• mAh (milliampere-hours)
• Wh (watt-hours), more accurate for energy comparison

A higher capacity battery provides longer runtime under the same load.

Example: 600mAh battery lasts longer than 400mAh in the same device.

Common 9V battery applications

• Smoke detectors
• Guitar pedals
• Multimeters
• Medical devices
• Wireless microphones
• Portable test equipment

These devices require stable and predictable power delivery.

Related read: What is a 9V Battery? A Comprehensive Guide

Part 2. What does mah mean in a 9v battery?

mAh stands for milliampere-hour. It measures how much current a battery can deliver over time.

Basic interpretation:

• 600mAh = 600mA for 1 hour (theoretical)
• 300mA for 2 hours

Important clarification

mAh does NOT increase power. It only increases runtime.

Think of it as fuel tank size:

• Voltage = engine pressure
• mAh = fuel tank size

A higher mAh battery does not make devices stronger. It only makes them run longer.

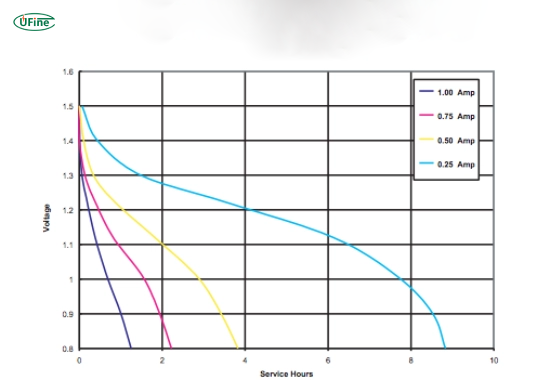

Part 3. 9v battery voltage and stability

Voltage is the electrical pressure that pushes current through a circuit.

A standard 9V battery provides:

• Nominal voltage: 9 volts
• Actual range: ~6V to 9.6V depending on chemistry and discharge state

Main 9V battery types and voltage behavior

Alkaline 9V battery
Starts at 9V, voltage gradually drops.

Lithium 9V battery
Maintains stable voltage for most of its discharge cycle.

Rechargeable NiMH 9V battery
Typically 8.4V nominal, may not fully reach 9V.

For sensitive devices like audio equipment or medical tools, voltage stability is more important than peak mAh.

Part 4. 9v battery amps and current output

A common question is: how many amps does a 9V battery provide?

The answer depends on internal resistance and load:

• Small 9V batteries typically deliver hundreds of milliamps (mA)
• High-drain pulses may reach higher short bursts, but not sustained current

Key concept

• Voltage = fixed (9V nominal)
• Current (amps) = depends on device load

Formula: Power (W) = Voltage × Current (A)

This is why high-drain devices drain 9V batteries quickly.

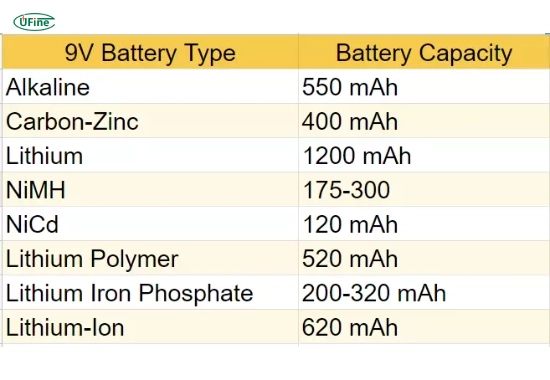

Part 5. How long does a 9v battery last?

Battery lifespan depends on:

• Capacity (mAh)
• Device current draw
• Chemistry type
• Temperature conditions

Estimated runtime in low-drain devices

High-drain devices such as wireless microphones may reduce runtime significantly.

Part 6. Types of 9v batteries and comparison

1. Alkaline 9V battery

• Low cost
• Widely available
• Best for smoke detectors and remotes
• Voltage drops gradually

2. Lithium 9V battery

• Highest performance
• Stable voltage output
• Best for medical devices and audio systems
• Higher cost but longer service life

3. Rechargeable NiMH 9V battery

• Eco-friendly
• Lower operating cost over time
• Lower voltage (8.4V) may affect some devices
• Suitable for frequent-use electronics

Part 7. Can you increase 9v battery capacity?

No, battery capacity cannot be increased.

However, you can extend runtime by:

• Choosing higher mAh batteries
• Using low-power devices
• Avoiding extreme temperatures
• Proper storage in dry conditions
• Using lithium chemistry for stable discharge

Part 8. How to choose the right 9v battery?

When selecting a 9V battery, consider:

Capacity (mAh)
Higher mAh = longer runtime.

Voltage stability
Critical for sensitive electronics.

Device current demand
High-drain devices require lithium chemistry.

Application type

• Smoke detectors → alkaline or lithium
• Audio equipment → lithium recommended
• Test equipment → stable output batteries

Part 9. 9v battery size and dimensions

Standard 9V battery size: 48.5 mm × 26.5 mm × 17.5 mm (approx.)

This compact size is used in:

• Portable electronics
• Safety devices
• Measurement instruments

Despite small size, energy density varies widely between chemistries.

Part 10. FAQs about 9 volt battery capacity
