3500mAh 18650-3C Flat Top 3.7 V Battery for Reliable Power

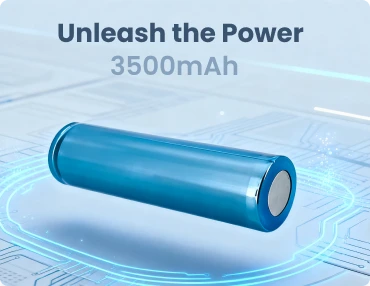

The 3.7 volt 18650 battery is one of the most widely used lithium-ion batteries, trusted for its balance of size, capacity, and performance. This specific 3500mAh 18650 flat-top cell delivers long-lasting energy and supports a 3C discharge rate, making it suitable for a wide range of applications that demand stable, high-density power.

Whether you are powering flashlights, electronic tools, medical equipment, or custom devices, this 3.7v 3500mAh battery provides an efficient energy solution. Below, we’ll explore its features, advantages, and customization options available from Ufine Battery.

Part 1. Advantages of a flat-top 18650 battery

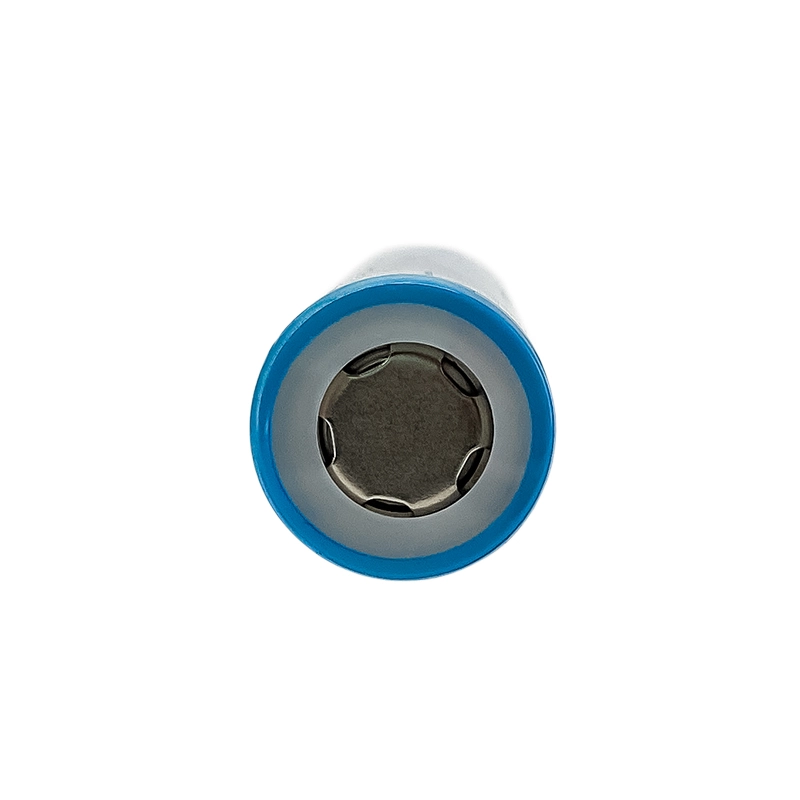

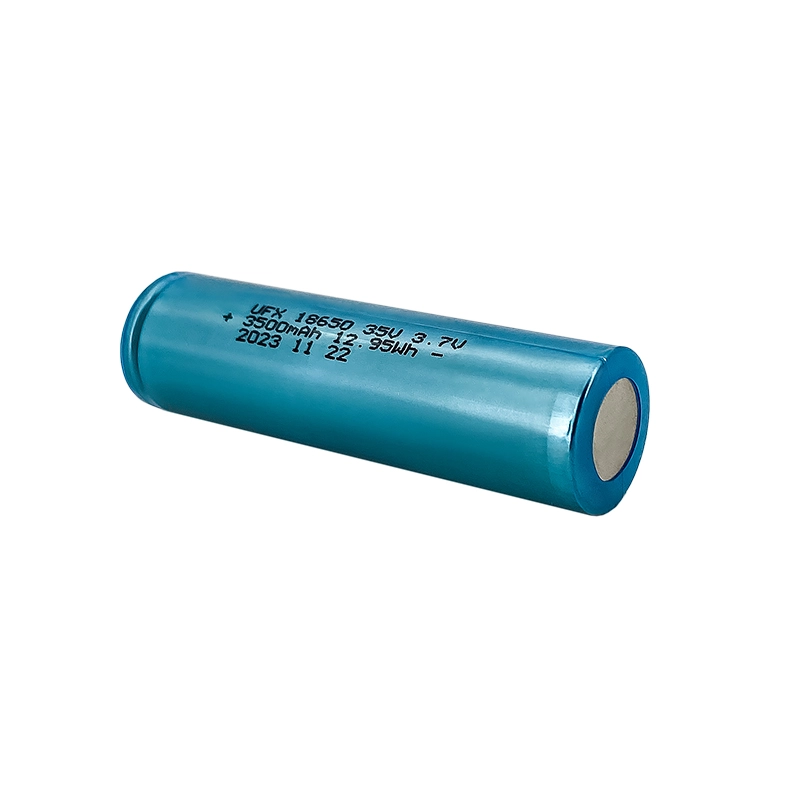

Flat-top 18650 batteries, such as this 3500mAh 18650, are designed without the protruding button terminal. This design provides:

• Compact integration – Ideal for battery packs where cells are closely arranged.

• Better contact surface – Improves connection reliability in custom configurations.

• Flexibility for manufacturers – Easier to design packs with precise spacing.

For users and businesses requiring custom lithium battery packs, flat-top cells give engineers more freedom in creating efficient layouts.

Part 2. How to know if this battery is compatible with your device?

Before purchasing a 3.7 volt 18650 battery, check these factors:

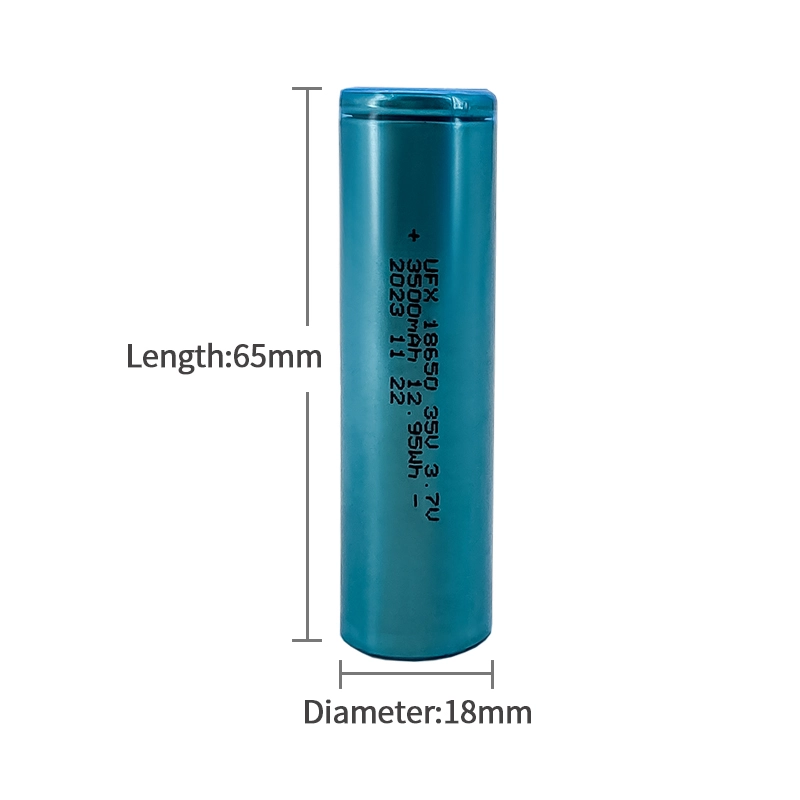

• Size: Standard 18650 dimensions (18mm diameter × 65mm length). Some devices require button-top versions instead.

• Protection: This cell is unprotected. Devices without built-in protection should use protected versions to prevent overcharge, over-discharge, or short-circuits.

• Discharge rate: With a 3C max discharge (≈10.5A), this battery supports higher-drain devices.

• Connector type: Flat-top cells may need adjustments or soldering in certain applications.

When in doubt, consult your device’s specifications or contact Ufine Battery for a custom-matched solution.

Part 3. How long does a 3500mAh 18650 Battery last?

The runtime of a 3.7 volt 18650 3500mAh battery depends on the device’s power consumption:

• Low-drain devices (flashlights, LED lights, small electronics): Can last 8–12 hours or more on a single charge.

• Medium-drain devices (portable fans, cameras, handheld tools): Typically last 3–6 hours.

• High-drain devices (power tools, high-output flashlights, e-bikes): Runtime may be 1–2 hours or less, depending on the current draw.

In terms of lifespan, a quality 3500mAh 18650 lithium-ion cell usually provides 300–500 full charge cycles, or even more with proper care. For applications that require longer service life, Ufine can add protective circuits or recommend alternative chemistries such as LiFePO4, which can deliver 2000+ cycles.

Part 4. Protected vs. unprotected 18650 batteries

The difference between protected and unprotected 18650 cells is crucial:

• Protected batteries include a built-in PCB for added safety (overcharge, over-discharge, short-circuit protection).

• Unprotected batteries like this 3500mAh 18650 flat-top offer raw capacity and current output but require compatible devices or external protection circuits.

If your application already includes a Battery Management System (BMS), unprotected cells are usually the better choice.

Part 5. What does 3C high-rate discharge mean?

This 3.7v 3500mAh battery has a 3C discharge rating, meaning it can safely deliver up to three times its capacity per hour:

• 3500mAh × 3C = 10.5A max continuous discharge

A higher C-rate is not always “better.” Instead, it depends on your device’s power needs. Devices requiring high bursts of current benefit from higher C-rates, while low-drain applications prioritize higher capacity for longer runtime.

Part 6. Ufine Battery custom lithium battery solutions

Ufine Battery is more than just a supplier of standard cells. We specialize in custom lithium battery design and manufacturing, offering solutions such as:

• Customized voltage & capacity – Match your exact application requirements.

• Flexible shapes & sizes – Cylindrical, prismatic, pouch, or special shapes.

• Discharge rate optimization – From standard to high-drain performance.

• Protection circuits (PCB/BMS) – Enhanced safety and longer cycle life.

• Connector & wiring options – For easy integration into devices.

• Special environment batteries – High-temperature and low-temperature cells.

Whether you need Li-ion, LiPo, or LiFePO4 batteries, Ufine can deliver tailored power solutions for consumer electronics, industrial equipment, medical devices, and beyond.

Part 7. What batteries can replace a 3.7V 3500mAh 18650 battery?

The 3500mAh 18650 flat-top battery can be replaced with other 18650 cells if they meet:

• Voltage compatibility (3.6V–3.7V nominal, 4.2V full charge)

• Capacity requirements (2600mAh to 3500mAh depending on runtime needs)

• Current discharge needs (check your device’s amp draw)

• Top type (flat-top vs. button-top)

When replacing, always ensure the new cell matches both the physical size and the electrical demands of your device.

Part 8. Connecting 18650 batteries in series and parallel

For applications requiring higher voltage or larger capacity, 18650 batteries can be connected in series or parallel:

• Series connection (S): Increases total voltage while capacity stays the same. For example, 3 × 3.7V = 11.1V.

• Parallel connection (P): Increases total capacity while voltage stays the same. For example, 3 × 3500mAh = 10,500mAh at 3.7V.

Ufine Battery designs and assembles custom packs using both methods, always with proper balancing, protection circuits, and safe assembly practices.

Part 9. Final thoughts

The 3500mAh 18650-3C 3.7 volt flat-top battery offers a high-capacity, reliable, and flexible power solution for a wide range of applications. While it is an unprotected cell, its compact flat-top design and strong 3C discharge capability make it highly versatile in custom pack manufacturing.

With Ufine Battery’s expertise in custom lithium battery solutions, you can go beyond standard cells and get a power source designed specifically for your application—whether that means higher capacity, longer cycle life, unique form factors, or advanced safety features.

If you are looking for a 3.7v 3500mAh battery or a fully customized power solution, contact Ufine Battery today to discuss your requirements.
