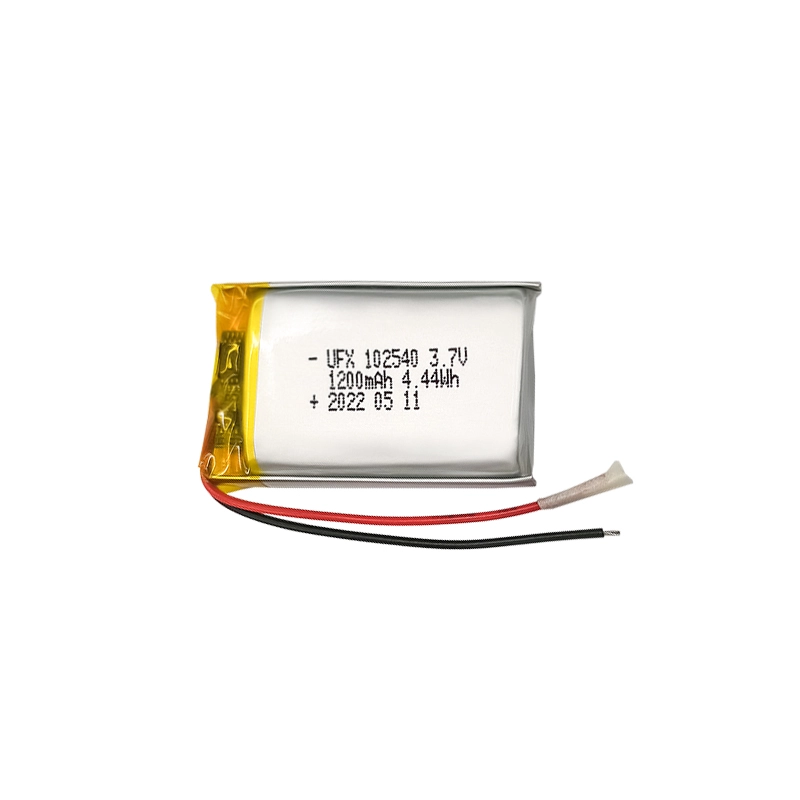

Compact 102540 Size with 1200mAh Capacity

The UFX102540 3.7V LiPo battery combines a compact 10 × 25 × 42mm size with 1200mAh capacity. Weighing approximately 18.6g, it provides a balance of runtime and lightweight design for space-constrained consumer electronics.

1200mAh LiPo battery charging performance

Test Curves of 102540 Battery

Take a closer look at the 102540 battery test curves—see the stability and performance you can trust for all your power needs!

  • Cycle Life
  • Self-Discharge
  • Discharge Rate
  • Temp Performance
long cycle life lithium polymer battery

Cycle Life at 25°C

Even after 600 full charge and discharge cycles, this battery retains over 95% of its original capacity, ensuring a long and dependable service life.


ultra low self discharge

Self-discharge at 25°C

This battery has a very low self-discharge rate, holding its charge for up to a year when stored at room temperature. It's ready to go when you need it, even after long periods of inactivity.

Learn More About Self-Discharge Rate
discharge rate normal ternary

Discharge at Different C Rate

Whether you need a slow, steady power source or a quick burst of energy, this battery is designed to handle various discharge rates without significant loss in performance.

wide temperature range normal

Discharge at Different Temperature

Engineered to perform in a wide range of conditions, this battery delivers consistent power from a scorching 60°C down to a frigid -20°C. Note that performance will be reduced in extreme cold.


Long Cycle Life with Reliable Charging Performance

This 1200mAh battery offers a typical cycle life of 500–800 cycles. With a 3.7V nominal voltage and 4.2V charging voltage, it provides clear electrical specifications for battery and charging circuit selection.

  • 500–800 Cycles
  • 3.7V Nominal Voltage
  • 4.2V Charging Voltage
  • 0.5C–1C Current
  • Less than 160mΩ IR
Request Quote
1200mAh LiPo battery cycle life

Applications

We provide custom lithium battery solutions for a wide range of consumer electronics and portable devices.

View more production details
Handheld facial cleansing device
Handheld Beauty Devices

Suitable for facial cleansing devices, skin care tools, and portable beauty equipment requiring compact power.

	Portable medical monitoring device
Portable Medical Devices

Can be used in compatible handheld monitoring equipment and personal healthcare electronics.

Compact GPS tracking device
GPS Tracking Devices

Provides rechargeable power for compact GPS trackers, asset tracking devices, and portable positioning products.

Bluetooth remote control and presenter
Wireless Electronic Accessories

Designed for evaluation in Bluetooth remote controls, wireless presentation devices, and other portable accessories.

What We Custom and How

At Ufine, we know that one size doesn't fit all, especially when it comes to battery needs. That's why we specialize in custom battery solutions.

What
  • Battery Chemistries: We build with Lithium, Polymer, LiFePO4, and 18650 cells.
  • Custom Specs: We customize size, voltage, capacity, and shape to fit your needs.
  • Connectors: Get the perfect fit with JST, Molex, XT series, and more.
  • Performance: Our batteries handle discharge rates from 0.2C to 25C.
  • Temperature: They're designed to operate from -40°C to 80°C.
How
  • 01
    Enquiry and Design: Contact us with requirements. The technical team creates tailored designs.
  • 02
    Sampling and Sample Testing: Receive customized battery samples for evaluation within two days.
  • 03
    Confirmation and Production: Finalize specifications, sign the production contract, and pay a deposit.
  • 04
    Delivery and Shipping: Make final payment, and arrange safe and efficient delivery.

Related 3.7V LiPo Battery Models

Explore more 3.7V lithium polymer batteries with different capacities, dimensions, and configurations. Ufine Battery offers flexible battery solutions for portable electronics and custom OEM/ODM applications.

Voltage Model Capacity Size (mm) Product Highlights
3.7V 702535 600mAh 7 × 25 × 37 Compact Size, Lightweight Design
3.7V 702560 1000mAh 7 × 25 × 62 Extended Length, Higher Capacity
3.7V 702562 1100mAh 7 × 25 × 64 Balanced Capacity, Slim Profile
3.7V 703448 1300mAh 7 × 34 × 50 Higher Capacity, Compact Structure
3.7V 853334 1000mAh 8.5 × 33 × 36 Compact Dimensions, Flexible Integration
3.7V 802530-2P 1200mAh 16 × 25 × 33 Dual-Cell Configuration, 1200mAh Capacity

Battery Specification

  • 1. Mechanical Characteristics

    Cell 102540 PCM Yes
    NTC No Weight appr. 18.6g
    Configuration 1S1P
  • 2. Electrical Specification

    Capacity 1200mAh Nominal Voltage 3.7V
    Energy 4.44Wh Internal Resistance less than 160mΩ
    Max. Charge Voltage 4.2V Discharge Cut Off 2.75V
    Max. Charge Current 1200mA Max. Discharge Current 1200mA
    Standard Charge Current 600mA Standard Discharge Current 600mA
    Charging Temperature 0℃ to 45℃ Discharging Temperature -20℃ to 60℃
    Storage Temp.Range 1 year at -20℃ to +30℃ 3 mos. at -20℃ to +45℃ 1 mo. at -20℃ to +60℃ Cycle life 100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80%

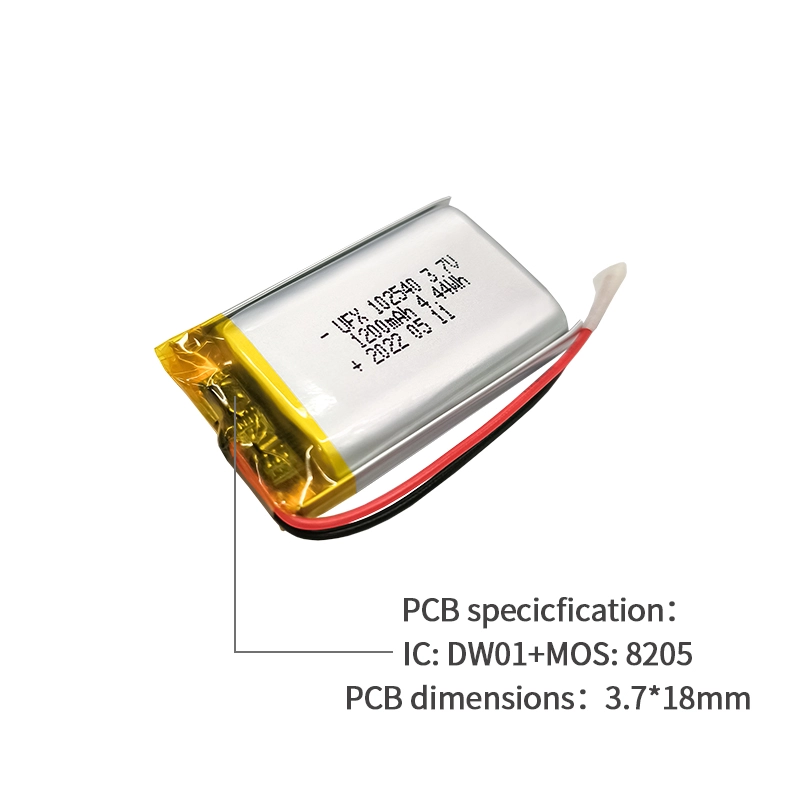

  • 3. Cell protection

    Overcharge Detection 4.28V ±50mV (80 to 200msec delay, release 4.08V ±50mV) Overdischarge Detection 2.4V ±100mV (40 to 120msec. delay, release 3.0V ±100mV)
    Overcurrent Detection 2.5A to 4.5A (5 to 10msec. delay) Short protection Yes
Download Product Datasheet

The UFX102540 3.7V 1200mAh LiPo battery is a compact rechargeable power solution designed for portable consumer electronics that require reliable energy storage in a limited space. Featuring a 10×25×42mm maximum dimension, approximately 18.6g lightweight construction, and 4.44Wh nominal energy, this battery offers a practical balance between capacity, size, and portability.

With a typical cycle life of 500–800 cycles and flexible customization options, the UFX102540 is suitable for handheld beauty devices, portable medical electronics, GPS trackers, and wireless accessories. Ufine Battery also provides OEM/ODM battery solutions to support different product designs and power requirements.

Part 1. What Does 102540 Mean In A Battery Model?

Lithium polymer battery models often contain numbers that describe their physical dimensions. For example, models such as 102040, 102540, and 103040 help engineers identify batteries with different thicknesses, widths, and lengths.

For a 102540 battery, the model number typically represents:

  • 10: Approximately 10mm in thickness.

  • 25: Approximately 25mm in width.

  • 40: Nominal length designation of approximately 40mm.

The UFX102540 has actual maximum dimensions of 10×25×42mm and a rated capacity of 1200mAh at 3.7V. Battery model numbering conventions may vary between manufacturers, so always confirm the actual product dimensions before purchasing.

Why Do Battery Dimensions Matter?

Battery dimensions directly affect how easily a battery fits inside an electronic device. Even small differences in thickness or length can cause installation problems, especially in compact consumer electronics.

  • Internal Space: Measure the available battery compartment, including the space needed for wires and connectors.

  • Thickness Tolerance: Allow sufficient clearance for battery thickness variations and assembly.

  • Connector Position: Check whether the connector and cable can fit without being bent or pressed against the battery.

  • Capacity Requirements: Compare the available installation space with the capacity needed to achieve your target runtime.

Part 2. What Are The Advantages Of Lithium Polymer Batteries?

Lithium polymer (LiPo) batteries are widely used in consumer electronics because they combine lightweight construction, compact dimensions, and flexible design. Compared with conventional cylindrical cells, LiPo batteries offer more freedom when designing products with limited internal space.

Flexible Shapes And Sizes

One major advantage of lithium polymer batteries is their flexible design. Unlike standard cylindrical cells, LiPo batteries can be manufactured in different thicknesses, widths, and lengths. This makes them suitable for products with irregular internal spaces, slim enclosures, or customized battery compartments.

Lightweight And Compact Construction

LiPo batteries feature pouch-style packaging that helps reduce unnecessary weight while supporting compact product designs. The UFX102540 weighs approximately 18.6g while providing 1200mAh capacity, making it suitable for portable devices where weight and installation space are important considerations.

High Energy Density

Lithium polymer batteries provide relatively high energy density, allowing manufacturers to achieve useful battery capacity without making electronic devices excessively large or heavy. This is particularly valuable for handheld electronics, wearable products, and portable beauty equipment.

Rechargeable Performance

LiPo batteries support repeated charging and discharging, making them suitable for rechargeable consumer electronics. The UFX102540 offers a typical cycle life of approximately 500–800 cycles under specified test conditions. Actual performance depends on charging methods, discharge depth, operating temperature, and usage patterns.

Suitable For Customized Battery Solutions

LiPo technology supports customized battery dimensions, capacities, connectors, and cable configurations. This gives product designers greater flexibility when developing new electronic devices or replacing existing battery solutions. However, appropriate charging control, protection circuits, and mechanical protection are still necessary for safe operation.

Part 3. How Long Does A 1200mAh LiPo Battery Last?

The runtime of a 1200mAh battery mainly depends on the average current consumed by the connected device. Electronics with higher power consumption drain the battery faster, while low-power devices can operate longer between charges.

The UFX102540 3.7V 1200mAh LiPo battery provides 4.44Wh of nominal energy, making it a practical power solution for portable electronics that require a balance between battery capacity and compact size.

How To Calculate 1200mAh Battery Runtime?

You can estimate battery runtime using the following formula:

Battery Runtime (Hours) = Battery Capacity (mAh) ÷ Device Current (mA)

For example, if your device consumes an average current of 200mA, a 1200mAh battery theoretically provides:

1200mAh ÷ 200mA = 6 Hours

Here are some other theoretical runtime examples:

Device Current Estimated Runtime
100mA 12 Hours
200mA 6 Hours
300mA 4 Hours
500mA 2.4 Hours
1000mA 1.2 Hours

Note: These are theoretical estimates based on rated capacity. Actual runtime may be shorter due to conversion losses, operating temperature, discharge conditions, and battery aging.

What Factors Affect 1200mAh Battery Runtime?

Even when two devices use the same 1200mAh battery, their operating times can differ significantly. Several factors influence actual battery runtime.

  • Device Power Consumption: Displays, wireless communication, motors, and sensors can increase current consumption.

  • Operating Mode: Continuous operation generally consumes more power than standby or intermittent operation.

  • Discharge Current: Higher discharge rates can affect usable capacity and battery temperature.

  • Operating Temperature: Very high or low temperatures may reduce battery performance.

  • Battery Aging: Repeated charging and discharging gradually reduce available capacity.

How To Choose The Right Battery Capacity?

When selecting a battery for your electronic device, start by calculating its average power consumption and required operating time.

For example, if a device consumes 200mA and needs to operate for 8 hours, its theoretical capacity requirement is:

200mA × 8 Hours = 1600mAh

In this case, a 1200mAh battery may not provide sufficient runtime. You may need a higher-capacity battery or a more energy-efficient device design.

For manufacturers, choosing the right battery means balancing capacity, available installation space, product weight, and power requirements rather than simply selecting the largest battery available.

Part 4. What Certifications Does Your Device Battery Need?

Battery certifications are important when selecting a power source for consumer electronics. They help manufacturers evaluate battery safety, product compliance, and transportation requirements before introducing products to different markets.

However, not every battery requires the same certifications. Requirements depend on battery configuration, end-product design, destination market, and applicable regulations.

Common Certifications And Standards For Lithium Polymer Batteries

Here are several important standards and certifications that manufacturers should understand when sourcing LiPo batteries.

UL1642 – Lithium Battery Safety

UL1642 covers safety requirements for lithium battery cells, including rechargeable lithium-ion cells. It addresses potential hazards such as short circuits, abnormal charging, and mechanical damage.

UL2054 – Household And Commercial Battery Safety

UL2054 applies to portable batteries used in household and commercial products. It addresses battery-level safety requirements and is particularly relevant when evaluating battery assemblies and packs.

CE – European Market Compliance

CE marking indicates that a product meets the applicable European Union requirements for which CE marking is required. Depending on the battery and end product, manufacturers may need to evaluate relevant safety, environmental, and electromagnetic compatibility requirements.

CB Certification – International Safety Evaluation

The IECEE CB Scheme facilitates the recognition of test results and certificates between participating certification bodies. It can help manufacturers reduce duplicated safety testing when entering multiple international markets.

CQC – China Quality Certification

CQC certification is a product certification mark used in China. Whether it is required depends on the product category and applicable certification requirements.

UN38.3 – Lithium Battery Transportation Testing

UN38.3 covers transportation-related testing for lithium batteries, including vibration, shock, and temperature-related tests. It is important when shipping lithium batteries by air, sea, or other transportation methods. Buyers should confirm the availability of applicable UN38.3 test documentation before shipment.

Which Certifications Should You Check Before Purchasing?

Before ordering a 1200mAh LiPo battery, consider the following factors:

  • Target Market: Identify the safety and regulatory requirements of the countries where your finished product will be sold.

  • Battery Type: Confirm whether the certification applies to the individual cell or the complete battery pack.

  • End Product Requirements: Check whether your device requires additional testing beyond battery-level certification.

  • Transportation Documents: Confirm whether UN38.3 test documentation is available for shipping.

  • Certification Validity: Verify the certificate holder, model coverage, issuing organization, and validity where applicable.

    For the UFX102540 1200mAh 3.7V LiPo battery, the listed certification credentials include CQC, UL1642 (TÜV), CE, CB, and UL2054. Buyers can contact Ufine to confirm the corresponding certificates, test reports, and model coverage before placing an order.

    With factory-direct manufacturing and OEM/ODM customization, Ufine supports customers in selecting battery solutions that match their product specifications and target-market requirements.

    FAQs

    • Can I Replace a 1200mAh Battery with a Higher-Capacity Battery?

      Yes, provided the replacement battery has compatible voltage, dimensions, discharge performance, and connector specifications. A higher-capacity battery may extend device runtime, but it must fit properly and meet the device's electrical requirements.
    • Does a 1200mAh LiPo Battery Need a Protection Circuit?

      A protection circuit is generally recommended to help prevent overcharging, over-discharging, and excessive current. Its protection parameters should match the battery specifications and device requirements to ensure safe operation.
    • Can a 1200mAh LiPo Battery Support High-Power Devices?

      It depends on the device's continuous and peak current requirements. Check the battery's discharge rate and maximum output current to ensure it can safely deliver the power required by your device.
    • Can a 102540 LiPo Battery Be Customized with Different Connectors?

      Yes. Ufine Battery supports customized connector types, wire lengths, cable configurations, and other specifications based on your device design and OEM/ODM project requirements.
    • What Is the Difference Between a 1200mAh LiPo Battery and a 1200mAh Li-ion Battery?

      LiPo batteries typically feature pouch-style packaging, allowing more flexibility in shape, thickness, and dimensions. Conventional lithium-ion batteries are commonly available in cylindrical or prismatic formats. Both use lithium-ion electrochemistry, but their packaging and structural designs differ.
    • Can Multiple 1200mAh LiPo Batteries Be Connected Together?

      Yes. Connecting batteries in series increases the total voltage, while connecting them in parallel increases the total capacity. However, battery cells must be properly matched, with compatible protection circuits and battery management systems to ensure safe and balanced operation.
