How Long Does a 22NF Battery Last and What Does It Mean?

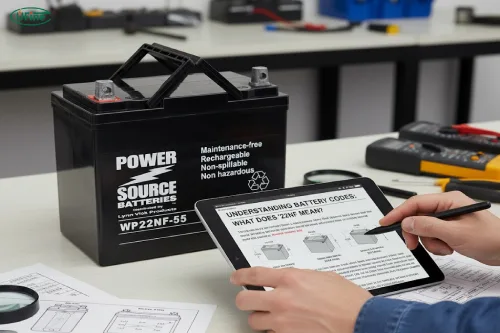

Part 1. What does 22NF mean on a battery?

Quick Answer A 22NF battery refers to a standardized group size under the Battery Council International (BCI) system. The “22” indicates its group number, while the “NF” typically means Narrow Frame, describing a slimmer case design. This size classification determines the battery’s physical dimensions, terminal configuration, and compatibility with specific equipment or vehicles.

In simple terms, the 22NF battery is a 12-volt lead-acid battery used for light vehicles, lawn tractors, power chairs, and other equipment that require moderate starting power and reliability.

The label “22NF” gives several clues about the battery’s construction:

• Group size 22 defines its overall footprint.
• NF (Narrow Frame) shows it’s slimmer than other Group 22 models.
• Usually designed as a 12-volt battery with capacities around 45 – 55 Ah.
• Common dimensions are 9.4 in × 5.5 in × 8.9 in (240 × 140 × 227 mm).

Because of its compact profile, the 22NF battery is popular in small vehicles and industrial applications where space is limited.

Part 2. What is the 22NF battery equivalent?

When choosing a replacement, some users look for 22NF battery equivalents. These are batteries that share similar dimensions, voltage, and terminal layout.

Although Group 51 or U1 batteries may have similar performance, they may not physically fit in a 22NF battery box because of terminal position or width differences. Always verify dimensions before substituting.

Part 3. 22NF Battery 500 CCA

“500 CCA” (Cold Cranking Amps) means the battery can deliver 500 amps at –18 °C (0 °F) for 30 seconds while maintaining at least 7.2 volts.

A 22NF battery rated at 500 CCA provides strong cold-weather starting power, making it suitable for light vehicles or machinery that must start reliably in low temperatures.

• Higher CCA = better cold-start performance
• Lower CCA = acceptable for warm climates or lighter loads

CCA Battery Meaning Explained: Everything You Need to Know

Part 4. 22NF battery size

The standard 22NF battery dimensions are approximately 9.4 L × 5.5 W × 8.9 H inches (240 × 140 × 227 mm).

This form factor is narrower than the full Group 22 size but taller than smaller groups like U1. The compact yet tall design allows a balance between power and footprint, which is why it fits in specialized boxes or trays.

Part 5. What Is a 22NF Battery Box?

A 22NF battery box is the compartment or enclosure designed to secure and protect the battery. Using the correct box prevents vibration damage, terminal shorting, and acid leakage.

When choosing a box:

• Ensure length and width match the 22NF’s narrow design.
• Check for ventilation if the battery is flooded lead-acid.
• For AGM or lithium types, sealed boxes are usually sufficient.
• Always secure the battery firmly to prevent movement during operation.

Part 6. 22NF battery type: Which battery is best?

22NF batteries come in several chemistries, each with unique benefits:

For general use, AGM 22NF batteries provide the best combination of safety, performance, and low maintenance. Flooded types are still reliable for budget or seasonal applications.

Part 8. How to replace a 22NF battery?

1. Turn off equipment and disconnect from power.
2. Remove negative (–) terminal first, then positive (+).
3. Carefully lift the old battery out of the box.
4. Clean terminals and tray with baking soda solution to remove corrosion.
5. Install the new 22NF battery, ensuring correct polarity and fit.
6. Reconnect positive first, then negative.
7. Test the system to ensure proper operation.

Replacing a 22NF battery usually takes less than 10 minutes and requires minimal tools.

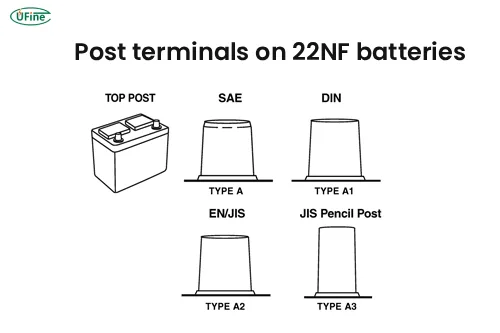

Part 9. Post terminals on 22NF batteries

Most 22NF batteries use top-post terminals (SAE style), but some deep-cycle or AGM variants feature bolt-type or threaded inserts.

When replacing, ensure the terminal type and polarity orientation match the existing setup to avoid cable strain or reversed connections. Incorrect polarity can damage electrical systems instantly.

Part 10. Can 22NF batteries be grouped in parallel to increase capacity?

Yes. Two or more 22NF batteries can be connected in parallel (positive to positive, negative to negative) to increase amp-hour capacity while keeping the same 12-volt output.

However, follow these rules:

• Use identical batteries (same age, type, and brand).
• Keep cables short and equal length to balance current flow.
• Charge and maintain them together using a smart charger.

Parallel setups are common in solar systems, mobility scooters, and RV power banks needing longer runtime.

Guide to Connect Two Batteries in Parallel

Part 11. How long can a 22NF battery be used?

The lifespan of a 22NF battery depends on its type, usage, and maintenance:

Proper charging, avoiding over-discharge, and storing the battery in moderate temperatures (10 – 25 °C) significantly extend service life.

Part 12. Where is the 22NF battery typically used?

You’ll find the 22NF battery in various light-duty and medium-duty applications:

• Lawn and garden tractors
• Power chairs and mobility scooters
• Utility vehicles and compact tractors
• Solar backup systems and portable power setups
• Marine accessories or RV secondary systems

Its moderate size and dependable output make it one of the most versatile 12-volt batteries available.

Part 13. Conclusion

The 22NF battery represents a compact yet powerful 12-volt solution defined by its narrow frame, reliable CCA rating, and versatile compatibility. Whether you choose a flooded, AGM, or lithium version, it’s essential to match your equipment’s space, voltage, and capacity needs.

For best results:

• Verify physical dimensions and terminal orientation.
• Choose the chemistry that suits your environment and budget.
• Maintain proper charging and storage to extend battery life.

When properly selected and maintained, a 22NF battery can deliver years of dependable service for both starting and deep-cycle applications.
