Battery Post Adapter Sizing Chart (SAE, JIS, M6, M8): What Fits Your Application?

Choosing the correct battery post adapter size is critical for ensuring a secure electrical connection, preventing terminal overheating, and keeping your system running safely. Because different batteries use different terminal formats—SAE, JIS, M6, M8, threaded inserts, or custom pads—using the wrong adapter can lead to loose connections, voltage drop, and even damage to lithium battery terminals.

This guide gives you a complete Battery Post Adapter Sizing Chart, explains SAE vs JIS vs M6/M8, compares real-world use cases for different systems, and helps you select the right adapter for LiFePO₄, lithium-ion, AGM, lead-acid, and other energy systems.

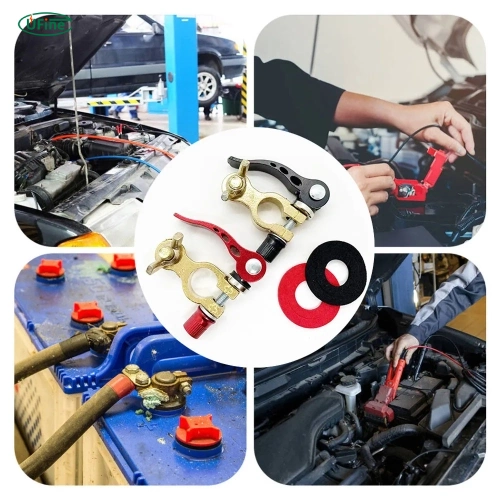

Part 1. Battery post adapter basics: Why size matters

Battery post adapter sizing affects more than fit—it determines how efficiently current flows from the battery into your device or system.

Common issues caused by incorrect adapter sizes

• Loose connection → sparks or intermittent power
• Terminal deformation (especially on lithium batteries)
• Excessive heat at the post
• Increased resistance → voltage drop under load
• Premature failure of inverter/DC system
• Difficulty mounting standard automotive clamps

Because of these risks, choosing the correct size is not optional—it is essential electrical safety.

Part 2. Battery post adapter sizing chart (SAE, JIS, M6, M8)

Below is a table showing the most common compatibility specifications in the industry, providing a comparison between LiFePO₄ batteries for automobiles, motorcycles, power tools, outdoor energy storage, and more.

Battery Post Adapter Size Comparison Table

Part 3. SAE vs JIS Battery post adapters: Key differences

• SAE (Society of Automotive Engineers)
  • Larger posts
  • Widely used in North American vehicles
  • Supports high cranking currents (CCA)
  • Compatible with standard automotive clamps
• JIS (Japanese Industrial Standards)
  • Smaller posts
  • Used in Japanese cars, motorcycles, and compact vehicles
  • Lighter electrical loads
  • Requires smaller clamps or JIS → SAE adapters
• When using adapters makes sense
  • Upgrading from JIS battery to an SAE clamp system
  • Replacing old vehicles with imported batteries
  • Converting lithium batteries (M8/M6) to car-style posts

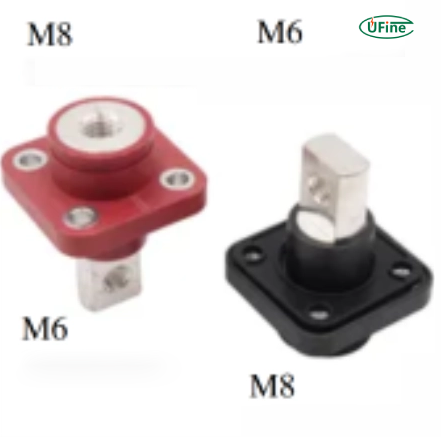

Part 4. M6 vs M8 Threaded lithium battery terminals

Lithium batteries—especially LiFePO₄ packs—commonly use threaded inserts instead of post terminals.

This design prevents vibration-related loosening and ensures stable conductivity.

• M6 Terminals

  Best for:

  • 12V 6Ah–20Ah Li-ion packs
  • Small portable power systems
  • Robotics, tools, and RC equipment
• M8 Terminals

  Best for:

  • 12V 20Ah–200Ah LiFePO₄
  • Golf carts
  • Solar power storage
  • Marine electrical systems
• Why threaded terminals need the correct adapter
  • Using an SAE adapter with the wrong bolt length → stripped threads
  • Overtightening → cracks the insert (common issue in cheap LiFePO₄)
  • Wrong metal combination → galvanic corrosion

Part 5. How to measure your battery terminal size correctly?

Before choosing any adapter, measure these three elements:

• Diameter of the terminal

  Use a caliper:

  • SAE / JIS → measure outer diameter
  • M6/M8 → measure bolt width
• Terminal height
  • Some adapters require clearance for clamps or inverter lugs.
• Cable end type

  Check whether your system uses:

  • Ring terminals
  • Standard automotive clamps
  • Anderson connectors
  • Custom inverter lugs
• Measurement mistakes to avoid
  • Measuring over corrosion → incorrect sizing
  • Mixing up positive/negative posts
  • Ignoring the bolt length requirement
  • Assuming all LiFePO₄ batteries use M8 (some use M6)

Part 6. Which battery post adapter fits your application? (Use Cases)

• Automotive (Cars, Trucks, SUVs)
  • Use SAE terminals
  • If using lithium car replacement battery → likely M8 → requires M8 → SAE adapter
• Motorcycles
  • Mostly JIS
  • Some replacements use M6 threaded terminals
• Solar Storage / Off-Grid
  • Mostly M8
  • Inverters require secure ring terminals → choose adapter with copper construction
• Boats & Marine Use
  • M8 or SAE
  • Must use corrosion-resistant brass or tin-plated copper
• Portable Lithium Packs
  • Usually M6
  • Use small form factor ring terminals, avoid SAE unless necessary

Part 7. Battery post adapter material differences

Choosing the right material is as important as post size.

Best materials for conductivity & durability

Part 8. FAQ: Battery post adapter sizing
