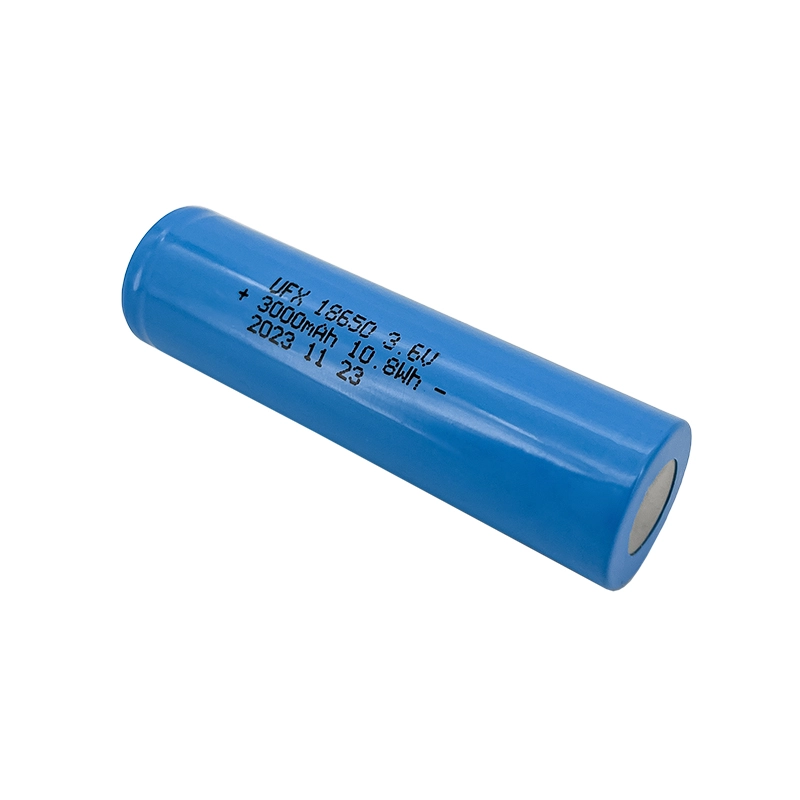

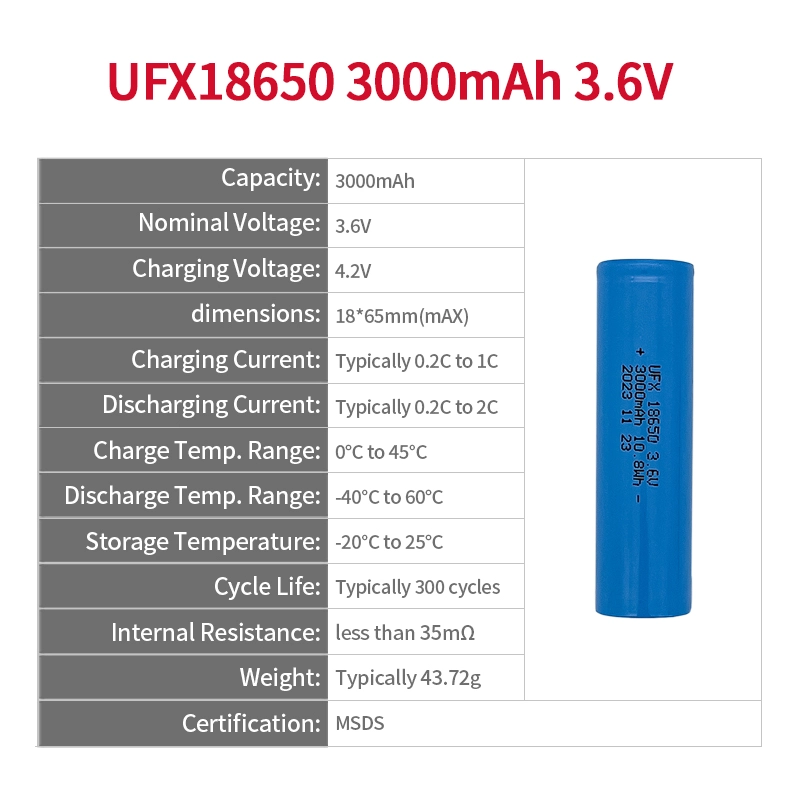

3.6V 3000mAh 18650 Lithium Battery – Compact, Powerful, and Built to Last

The 3.6V 3000mAh 18650 battery is one of the most popular lithium-ion cells, offering excellent balance between energy density, lifespan, and discharge performance. This Ufine UFX0707-14 cell provides reliable output and customizable protection options, making it suitable for various industrial and consumer applications.

Below, we’ll explore everything you need to know — from voltage differences to pack building and charger selection — to help you make the most of your 3.6V 18650 batteries.

Part 1. 3.6V 18650 Battery vs. 3.7V 18650 Battery

Cylindrical lithium-ion cells labeled “18650” typically have a nominal voltage of 3.6V or 3.7V depending on chemistry. The difference is mainly nominal — many 3.7V cells are essentially the same chemistry as 3.6V versions, just rounded for simplicity.

Ufine’s 3.6V specification aligns with stable discharge performance, thermal control, and optimized lifespan. While 3.7V cells may indicate slightly higher peak voltage, what truly matters is chemistry, cut-off settings, and charger compatibility.

When choosing between 3.6V and 3.7V cells, verify your charger, device cutoff voltage, and power design requirements.

Part 2. 18650 Battery vs. AA Battery

To understand the 18650’s position in the battery world, it’s useful to compare it with the common AA battery:

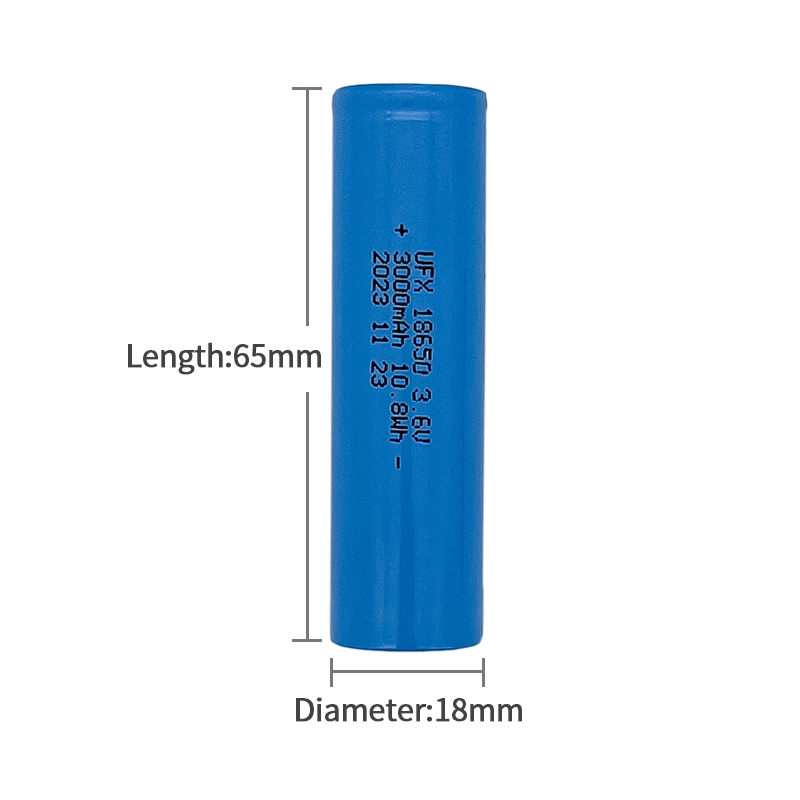

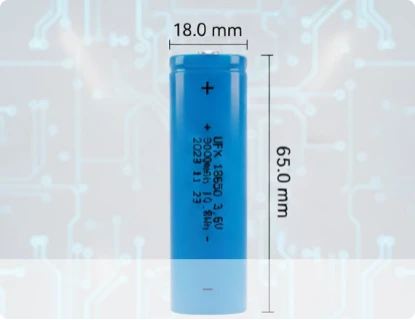

• 18650 measures 18mm × 65mm, while AA is around 14–15mm × 50mm.

• AA batteries offer 1.2V (NiMH) or 1.5V (alkaline), while 18650 cells provide 3.6V nominal.

• 18650 cells deliver far higher energy density and are ideal for power-demanding devices.

• However, 18650 cells cannot replace AA directly due to differences in voltage, size, and safety requirements.

In summary: AA batteries are great for low-drain devices, while 18650 cells are built for high-performance rechargeable systems.

Part 3. How Long Can a 3.6V 3000mAh 18650 Battery Last?

“3000mAh” means the cell can theoretically supply 3A for one hour at nominal voltage. Actual runtime depends on discharge rate, device load, and temperature.

• At 0.5A discharge, runtime ≈ 6 hours (3000mAh ÷ 500mA).

• At 1A discharge (e.g., flashlight), runtime ≈ 2.5–3 hours considering voltage drop.

• Typical lifespan: about 300 charge cycles under standard use.

Ufine’s low internal resistance (≤ 35 mΩ) ensures higher usable capacity and better thermal stability under continuous load.

Part 4. Protected vs. Unprotected 18650 Cells

Protected cells include an internal PCB for safety — guarding against overcharge, over-discharge, or short-circuit. Unprotected cells skip the PCB to save space and resistance but rely on external BMS or protection circuits.

• Protected: Safer for standalone consumer devices.

• Unprotected: Preferred for pack integration where BMS handles protection.

The Ufine 3.6V 3000mAh 18650 is unprotected by default, with optional protection customization available.

Part 5. Does This Battery Have PCB Protection?

By default, the Ufine UFX0707-14 3.6V 3000mAh 18650 does not include built-in PCB protection. However, customization options are available to integrate:

• Overcharge Detection

• Overdischarge Detection

• Overcurrent Detection

• Short-Circuit Protection

This flexibility allows OEMs and designers to specify protection circuits tailored to their device or pack configuration.

We also offer several protected 18650 batteries. Click to learn more:

Part 6. Combining 18650 Cells for Battery Packs

Yes, you can connect 18650 cells in series or parallel to build custom packs:

• Series (S): increases voltage. Example: 4S = 14.4V nominal (16.8V max).

• Parallel (P): increases capacity. Example: 2P = 6000mAh at 3.6V.

Always use identical cells (same model and batch), include a proper BMS, and ensure good thermal management and balance during charging and discharge. Ufine offers custom pack assembly and cell matching for safety and consistency.

Part 7. Battery Alternatives to 18650

While 18650 remains a standard, several formats may serve as alternatives depending on your needs:

• 21700 (21×70mm): higher capacity and energy density for EVs and tools.

• 14500 (AA-size Li-ion): smaller form, same 3.7V nominal voltage.

• NiMH/NiCd cells: lower energy density but safer for low-voltage applications.

When replacing, ensure proper voltage compatibility, chemistry, and mechanical fit.

Part 8. Choosing the Right Charger

Selecting an appropriate charger ensures performance and safety:

• Use Li-ion compatible chargers with CC/CV charging profile ending at 4.2V per cell.

• For multi-cell packs, use chargers rated for your pack’s configuration (e.g., 2S, 4S).

• Avoid NiMH/alkaline chargers — they are incompatible and unsafe for Li-ion cells.

• Monitor temperature: stop charging if temperature exceeds 45°C.

Note: We recommends high-quality chargers to maximize performance and cycle life.
