What is the Difference Between a Battery Isolator and a Battery Separator?

Battery isolators and battery separators are both used in dual battery and multi-battery systems. However, they work differently and solve different electrical problems.

A battery isolator mainly controls charging current between batteries. It prevents one battery from draining another. A battery separator mainly provides electrical isolation and protection between battery cells or battery banks to prevent short circuits and improve system safety.

Understanding the difference is important when designing RV, marine, off-grid solar, truck, or emergency vehicle power systems. Choosing the wrong device can lead to charging problems, voltage drop, battery imbalance, or reduced battery life.

If you are building a dual battery system, this guide explains:

• What a battery isolator does
• What a battery separator does
• How battery isolators work
• Battery isolator vs separator differences
• Which solution is better for your application

Key Takeaways

• A battery isolator controls charging flow between multiple batteries.
• A battery separator mainly prevents unwanted electrical contact or short circuits.
• Battery isolators are common in RVs, boats, trucks, and dual battery systems.
• Modern smart isolators use voltage-sensitive relays (VSR) or solid-state electronics.
• Traditional diode isolators can cause voltage drop and lower charging efficiency.
• Battery separators are widely used inside battery packs and industrial battery systems.
• Choosing the correct device improves battery safety, charging performance, and battery lifespan.

Part 1. What is a battery isolator?

A battery isolator is an electrical device that manages charging between two or more batteries while keeping them electrically separated.

In a dual battery setup, the alternator charges all batteries when the engine runs. The isolator prevents the auxiliary battery from draining the starter battery when the engine is off.

This is why battery isolators are widely used in:

• RVs
• Camper vans
• Marine systems
• Overlanding vehicles
• Emergency vehicles
• Solar backup systems

Part 2. What does a battery isolator do?

The main job of a battery isolator is to:

• Allow charging current to flow from the alternator or charger
• Prevent reverse current between batteries
• Protect the starter battery from discharge
• Separate battery banks automatically

For example, in an RV, the starter battery powers the engine while the house battery powers lights, refrigerators, and electronics. A battery isolator ensures the house battery cannot accidentally drain the engine battery overnight.

Part 3. How does a battery isolator work?

Battery isolators work by controlling current flow between batteries.

There are three common types:

1. Diode Battery Isolators

   Diode isolators use semiconductor diodes to allow one-way current flow.

   Advantages:

   • Simple
   • Reliable
   • No moving parts

   Disadvantages:

   • Voltage drop of about 0.3V to 0.7V
   • Reduced charging efficiency
   • Less suitable for lithium batteries

2. Relay-Based Isolators (VSR)

   Voltage-sensitive relays automatically connect batteries when charging voltage rises and disconnect them when voltage falls.

   Advantages:

   • Lower voltage loss
   • Better charging efficiency
   • Common in modern RV systems

   Disadvantages:

   • Mechanical wear over time

3. Solid-State Battery Isolators

   Solid-state isolators use MOSFET technology for higher efficiency.

   Advantages:

   • Minimal voltage drop
   • Fast switching
   • Excellent for lithium battery systems

   Disadvantages:

   • Higher cost

For lithium systems, smart isolators are generally preferred because lithium batteries require accurate charging voltage.

You can also read our guide on lithium battery charging systems at Ufine Battery official website.

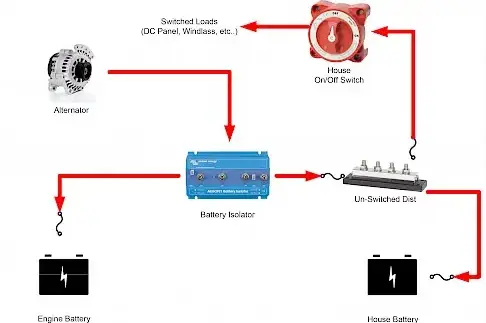

Battery Isolator Diagram

A basic dual battery isolator system typically includes:

• Alternator
• Starter battery
• Auxiliary battery
• Battery isolator
• Fuse protection
• DC loads

Typical Flow

• Engine starts using the starter battery
• Alternator begins charging
• Isolator connects auxiliary battery
• Both batteries charge safely
• Engine shuts off
• Isolator disconnects batteries automatically

This design protects starting power while allowing accessory usage.

Part 4. What is a battery separator?

A battery separator is a physical insulating material placed between the positive and negative electrodes inside a battery cell or between battery sections.

Unlike a battery isolator, a battery separator is not mainly used for charging management. Its purpose is safety and electrochemical separation.

The separator:

• Prevents internal short circuits
• Allows ion movement
• Improves thermal stability
• Maintains battery safety
• Supports battery lifespan

Battery separators are critical in:

• Lithium-ion batteries
• LiFePO4 batteries
• Lead-acid batteries
• EV battery packs
• Industrial energy storage systems

Part 5. How does a battery separator work?

A battery separator acts as a porous insulating layer.

It blocks direct electron flow between electrodes while allowing lithium ions or electrolyte ions to pass through.

This balance is essential: Electrons must stay separated, ions must move freely.

If the separator fails, the battery may:

• Short circuit
• Overheat
• Experience thermal runaway
• Catch fire in severe cases

Modern lithium batteries often use:

• Polyethylene (PE)
• Polypropylene (PP)
• Ceramic-coated separators

High-end EV batteries may use multilayer separator designs for improved safety.

Part 6. Battery isolator vs separator: key differences

Part 7. Which is better for dual battery systems?

For most RV, marine, and truck applications, a battery isolator is the correct solution.

A battery separator alone cannot manage charging or protect the starter battery from discharge.

Choose a Battery Isolator If You Need:

• Dual battery charging
• Starter battery protection
• RV house battery management
• Marine battery bank control
• Off-grid auxiliary power

Choose a Battery Separator If You Need:

• Internal battery safety
• Battery pack manufacturing
• Lithium battery design
• Cell-level insulation

In many lithium battery systems, both technologies are used together: The battery pack contains separators internally, and the electrical system uses isolators externally.

Part 8. Battery isolators for lithium batteries

Lithium batteries have different charging characteristics than lead-acid batteries.

Traditional diode isolators may reduce charging voltage too much for lithium batteries, especially LiFePO4 chemistry.

Modern lithium systems usually use:

• Smart DC-DC chargers
• MOSFET isolators
• Voltage-sensitive relays
• Battery management systems (BMS)

If you are using LiFePO4 batteries in RV or marine applications, combining a smart isolator with a proper BMS is recommended.

Part 9. Common applications of battery isolators and separators

Part 10. Battery isolator and separator installation considerations

Battery Isolator Installation Tips

• Use proper fuse protection
• Match isolator current rating to alternator output
• Use large enough cable size
• Keep wiring short to reduce voltage loss
• Follow marine or automotive electrical standards

Battery Separator Considerations

Battery separators are usually factory-installed during battery manufacturing. End users normally do not replace them directly.

Separator quality significantly affects:

• Cycle life
• Internal resistance
• Fast charging capability
• Thermal safety

Part 11. Battery isolator vs battery separator FAQs
