Ufine Product Features

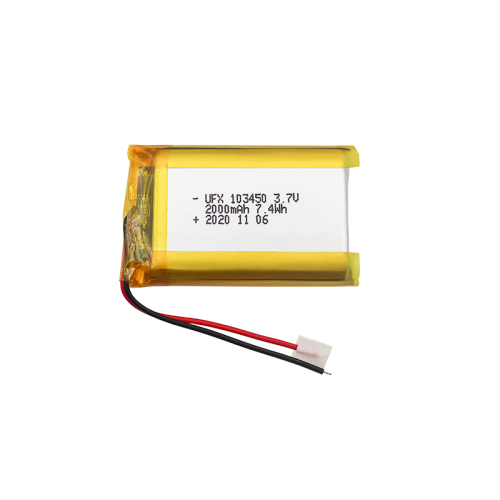

Ufine New Energy is a leading Chinese manufacturer of high-quality Li-polymer cells, supplying superior products such as the UFX 103450 2000mAh 3.7V battery. Our advanced technology allows us to produce super thin and rechargeable batteries with KC, CB, and UL certifications. Ufine New Energy is dedicated to providing customers with the highest level of quality, performance, and reliability in the lithium rechargeable cell industry. Our commitment to innovation and excellence ensures that our products meet the ever-evolving needs of our customers worldwide. Choose Ufine New Energy for all your Li-polymer battery needs.
1、Mechanical Characteristics |
|||
Cell: |
UFX103450 |
PCM: |
Yes |
NTC: |
No |
Weight: |
appr. 38g |
Configuration: |
1S1P |
Demension |
Max 10*34*52mm |

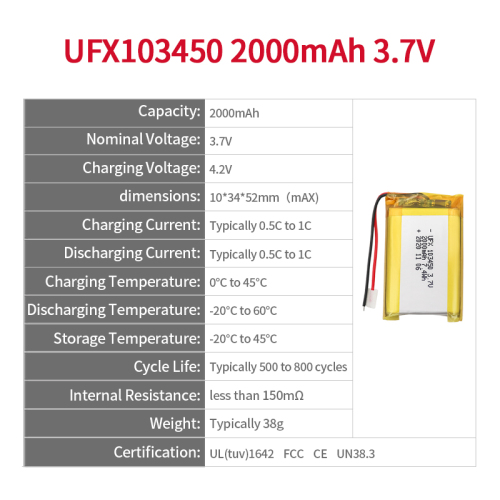

2、Electrical Specification | |||
Capacity: |
2000mAh |
Nominal Voltage: |
3.7V |
Energy: |
7.4Wh |
Internal Impedance: |
less than 150mΩ |
Max. Charge Voltage: |
4.2V |
Discharge Cut Off: |
2.75V |
Max. Charge Current: |
1000mA |
Max. Discharge Current: |
1000mA |
Standard Charge Current: |
400mA |
Standard Discharge Current: |
400mA |
Charge Temp. Range: |
10°C to 45°C |
Discharge Temp. Range |
-20°C to 60°C |
Storage Temp. Range |
1 year at -20℃ to +30℃ |
Cycle life: |
100 cycles ≥92% |
3 moths at -20℃ to +45℃ |
300 cycles ≥88% | ||
1 month at -20℃ to +60℃ |
500 cycles ≥80% |
||
3、Cell protection |
|||
Overcharge Detection : |
4.28 ±50mV (50 to 200msec delay, release 4.08V ±50mV) |
Overdischarge Detection: |
2.4V ±100mV (20 to 100msec. delay, release 3.0V ±100mV) |
Overcurrent Detection: |
2.5A to 4.0A (8 to 16msec. delay) |
Short protection: |
Yes |
4、Cycle life Characteristics |
5、Discharge Characteristics |
||
![]() |
|
||
