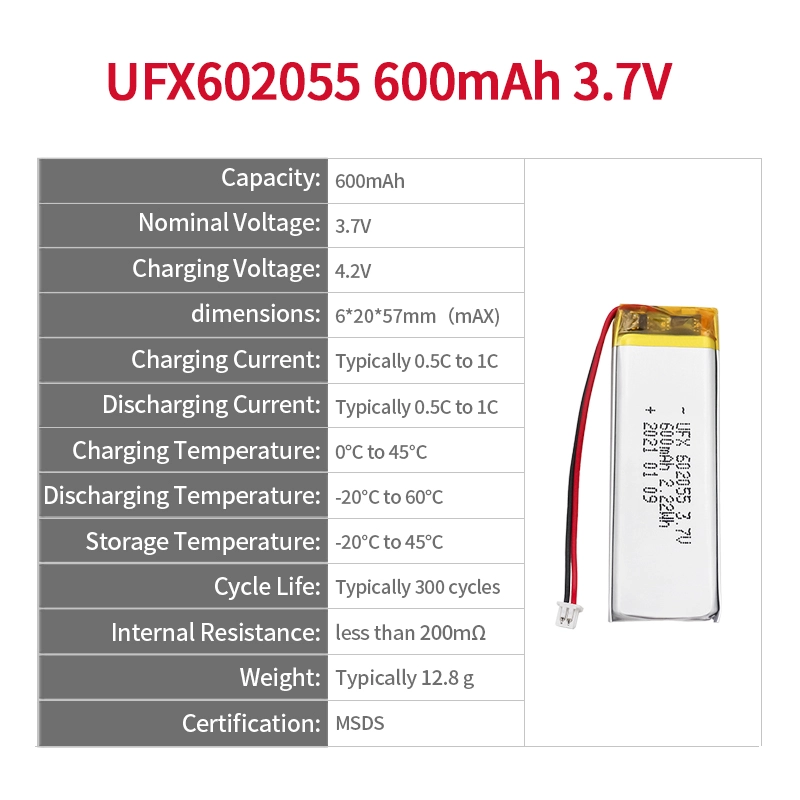

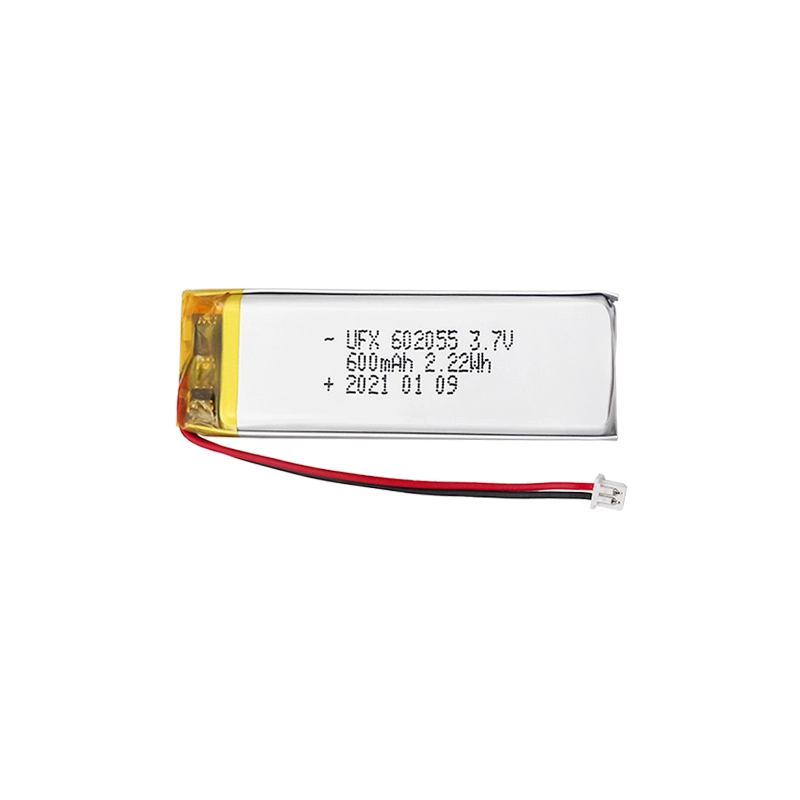

3.7 V 600mAh Lithium Ion Battery 602055

Part 1. What does 602055 mean on the battery?

The designation "602055" provides vital information about the physical dimensions and structure of the battery. Here’s a breakdown:

60: The thickness of the battery in tenths of a millimeter (6.0mm).

20: The width of the battery in millimeters (20mm).

55: The length of the battery in millimeters (55mm).

This compact size makes the 602055 battery ideal for use in small and portable devices such as wearable gadgets, medical equipment, and toys. Its slim profile and lightweight design (approximately 12.8g) enhance portability without compromising power capacity.

Part 2. Ufine 602055 3.7V 600mAh LiPo battery chemistry

The Ufine 3.7V 600mAh battery utilizes lithium polymer (LiPo) chemistry. LiPo batteries are known for their:

1.High Energy Density: This allows the battery to deliver significant power in a small package.

2. Lightweight Design: Perfect for devices that prioritize portability.

3. Enhanced Safety: LiPo batteries have lower chances of leaking compared to other lithium-ion chemistries.

4. Flexible Form Factor: The soft casing enables customization to fit specific product designs.

These attributes make the 602055 battery an excellent choice for applications where space and weight are critical considerations, such as drones, wireless devices, and fitness trackers.

Part 3. What is 3.7 V 600mAh watt-hour?

The watt-hour (Wh) of a battery measures the total energy it can deliver. It is calculated using the formula:

Watt-hour (Wh)=Voltage (V)×Capacity (Ah)

For the 3.7V 600mAh battery:

3.7×0.6=2.22Wh

This means the battery provides 2.22 watt-hours of energy, making it suitable for powering small devices that require moderate energy over a consistent period.

Part 4. How long can a 3.7V 600mAh LiPo rechargeable battery last?

The lifespan of a 3.7V 600mAh battery depends on the device's power consumption. For instance:

If a device uses 100mA per hour, the battery will last approximately 6 hours (600mAh ÷ 100mA).

For higher consumption devices using 300mA, the battery will last around 2 hours.

Cycle life is also important; this battery typically delivers 300 charge-discharge cycles before its capacity significantly diminishes.

Part 5. How long to charge a 600mAh battery?

Charging time for the 600mAh LiPo battery depends on the charging current. Using the typical range of 0.5C to 1C:

At 0.5C (300mA), the battery charges in approximately 2 hours.

At 1C (600mA), it charges in 1 hour.

To maximize battery life, it’s recommended to charge at a lower current (0.5C) and use a charger with overcharge protection.

Understanding C Rating on LiPo Battery: Your In-Depth Guide

Part 6. Charger

The 3.7V 600mAh LiPo battery requires a charger designed for lithium polymer batteries. Key features include:

1.Constant Current/Constant Voltage (CC/CV) Charging: Ensures efficient and safe charging.

2. Voltage Rating: The charger should provide a maximum output voltage of 4.2V.

3. Current Control: A charging current of 300mA to 600mA is ideal.

For optimal performance, ensure the charger is compatible with the battery’s MSDS-certified safety standards.

Part 7. Maintenance and care

To prolong the lifespan and ensure the safe use of the 3.7V 600mAh lithium battery, follow these tips:

Charging Precautions:

Avoid overcharging by disconnecting the battery when it reaches 4.2V.

Use a certified charger with built-in safety features.

Storage Guidelines:

Store the battery at a 50% charge level when not in use for extended periods.

Keep it in a cool, dry place, ideally between -20°C and 45°C.

Usage Tips:

Avoid deep discharges below 3.0V as it can harm the battery's chemistry.

Use the battery within the recommended temperature range (-20°C to 60°C) to prevent performance degradation.

By adhering to these practices, the Ufine 3.7V 600mAh battery will deliver reliable and long-lasting performance for various applications.
