Product Details

  • Icon
    Discharge Rate
  • Icon
    Long Cycle Life
  • Icon
    Ultra-Low Self-Discharge
  • Icon
    Wide Temperature Range

Pic
Lithium batteries exhibit varying discharge rates. Ufine's batteries support a maximum discharge rate of 5.0C,delivering high power output in short durations.
Pic
Ufine's lithium battery maintains over 80% capacity after 500 cycles at room temperature,utilizing 0.5C charge and discharge conditions.
Pic
Batteries exhibit differential self-discharge rates at 100% and 70% charge states.
Self-discharge is higher at 100% state of charge (SOC) compared to 70% SOC.
Pic

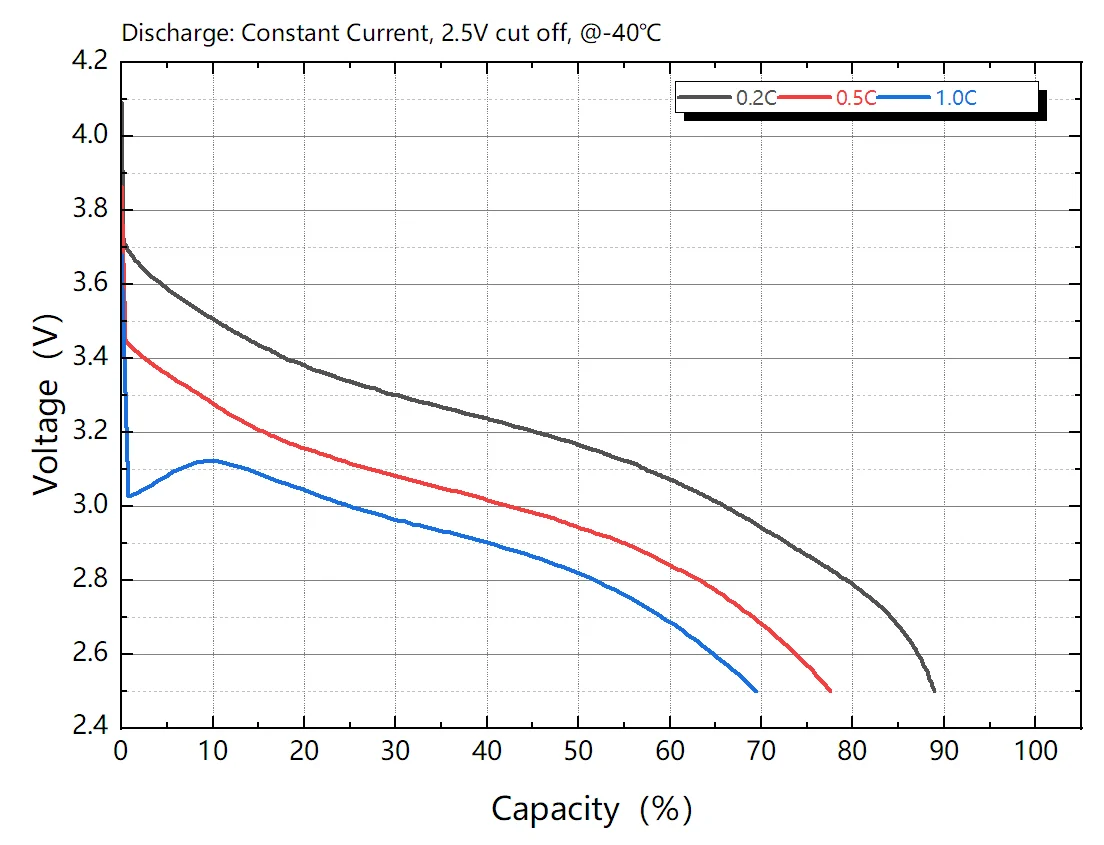

Lithium batteries operate within the -20°C to 60°C discharge temperature range.
Ufine's custom low-temperature batteries can be used for -40°C to 55°C operation, catering to diverse outdoor scenarios.

Battery Quality Assurance

Rigorous testing pre-shipment guarantees that each battery complies with normal parameters concerning voltage, current, and charging and discharging data, ensuring optimal functionality in cold conditions.

Pic
Pic

Environmentally Design

Utilizing A-grade battery cells, these leak-proof batteries maintain an environmentally friendly design, reducing ecological impact while providing reliable power support.

Applications

The battery is designed for use in various applications, including but not limited to outdoor electronics, smart home devices, emergency power banks, and mobile devices.

Pic

Camera

Pic

Action Camera

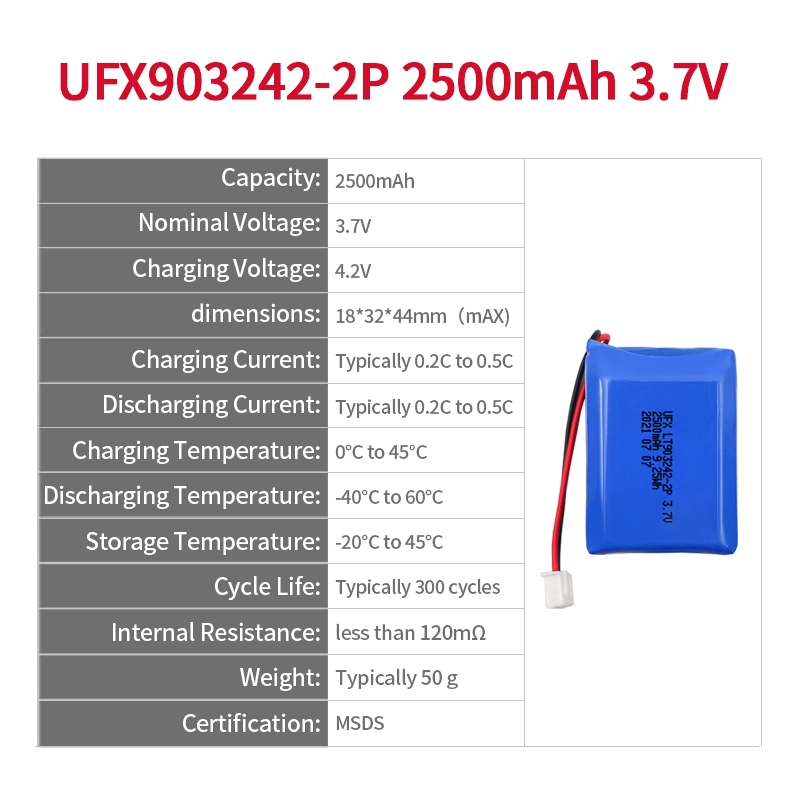

Battery Specification

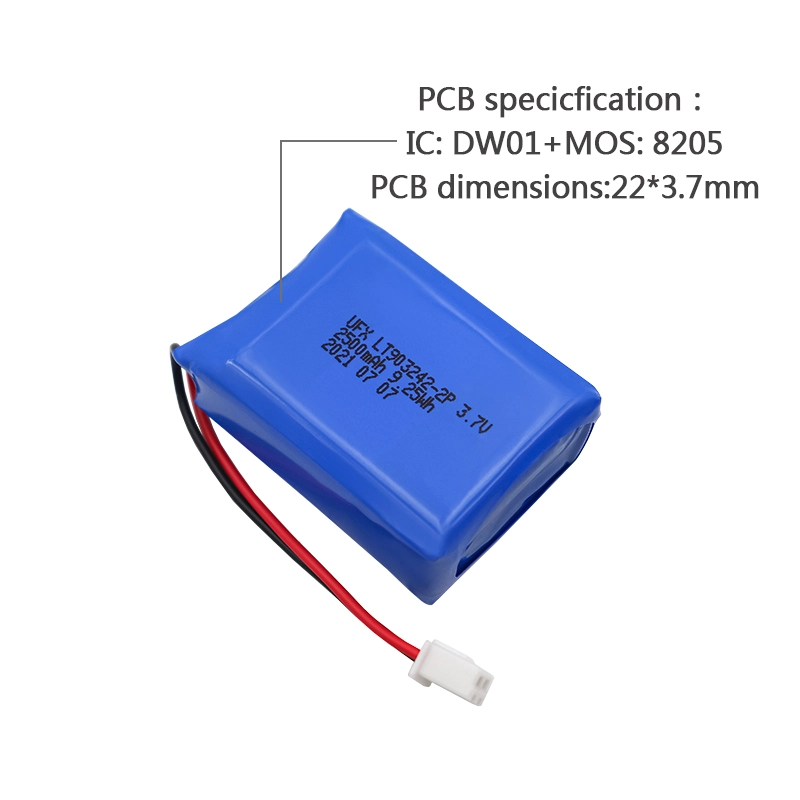

  • 1. Mechanical Characteristics

    Cell 903243LT-2P PCM Yes
    NTC No Weight appr. 50g
    Configuration 1S2P
  • 2. Electrical Specification

    Capacity 2500mAh Nominal Voltage 3.7V
    Energy 9.25Wh Internal Resistance less than 120mΩ
    Max. Charge Voltage 4.2V Discharge Cut Off 2.75V
    Max. Charge Current 2500mA Max. Discharge Current 1250mA
    Standard Charge Current 500mA Standard Discharge Current 500mA
    Charging Temperature 0℃ to 45℃ Discharging Temperature -40℃ to 60℃
    Storage Temp.Range 1 year at -20℃ to +30℃ 3 mos. at -20℃ to +45℃ 1 mo. at -20℃ to +60℃ Cycle life 100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80%
  • 3. Cell protection

    Overcharge Detection 4.28V ±50mV (80 to 200msec delay, release 4.08V ±50mV) Overdischarge Detection 2.4V ±100mV (40 to 120msec. delay, release 3.0V ±100mV)
    Overcurrent Detection 2.5A to 4.5A (5 to 10msec. delay) Short protection Yes
Download Product Datasheet

Lipo Battery Cell Capacity Fast Calculator

Please enter your battery information to calculate the battery capacity and energy.

The capacity calculated by this tool is only an approximate value. If you need an accurate assessment, please contact our professional engineers.

Input Size:

3.7 V 2500mAh Low Temperature Battery Application

Low Temperature Battery For Camera

Engineered for photographers, our lithium camera batteries offer high-temperature resistance, allowing them to function optimally in varying climates. Their high energy density ensures a consistent power supply, which is crucial for capturing every moment without worrying about sudden power loss.

Pic

Low Temperature Battery For Action Camera

Engineered specifically for action photographers, our low-temperature lithium batteries are designed to thrive in diverse climates. With exceptional resistance to low temperatures, these batteries ensure optimal functionality even in challenging environmental conditions. Their high energy density guarantees a reliable and consistent power supply, addressing the critical need for uninterrupted power during action-packed moments. Capture every thrilling moment confidently, knowing that our low-temperature batteries for action cameras provide a dependable and enduring source of power.

Pic

The Complete Guide For 2500mAh 3.7 V Low Temp Li-ion Battery

A 3.7 V 2500mAh low temp li-ion battery serves as a crucial power source for various electronic devices. This guide delves into its components, functionalities, and best practices for optimal use.

Part 1. Advantages and Applications

The 2500mAh 3.7 V low temp li-ion battery offers a portable power solution with sufficient capacity for devices used in cold environments. Its versatility extends to applications such as heated wearables, ensuring prolonged warmth in freezing conditions, and outdoor gear like gps units, guaranteeing reliable navigation during winter activities.

Part 2. Technical Specifications

The 5200mah capacity denotes thefeaturing an 2500mAh capacity and 3.7 V output, this battery efficiently stores and delivers power. its low-temperature resilience ensures consistent performance in sub-zero environments, crucial for devices operating in extreme climates.

Part 3. Safety and Handling

This battery integrates protections against overcharging, over-discharging, and short circuits, ensuring safe operation in low-temperature settings. Proper storage and handling practices are essential to maintain safety and performance standards.

Part 4. Maintenance and Longevity

Adhering to recommended charge-discharge cycles, avoiding complete drains, and managing temperature controls significantly impact its lifespan. Routine checks and firmware updates optimize efficiency, extending the battery's longevity.

Part 5. Buying Guide and Recommendations

For reliable and customized solutions, consider sourcing your 2500mAh 3.7 V low temp li-ion batteries from ufine custom battery. Our commitment to quality assurance and tailored battery solutions ensures dependable performance for your specific needs.

FAQs

  • Can low temperature batteries be utilized in mobile applications or devices operating in cold climates?

    Yes, these batteries are designed for mobility and can reliably power devices in cold climates, ensuring consistent performance.
  • How does extreme cold affect the capacity and discharge rate of low temperature batteries?

    Low temperature batteries are engineered to minimize capacity loss and maintain a stable discharge rate even in severe cold conditions.
  • Are there additional safety features integrated into low temperature batteries for applications in cold weather?

    Yes, our low temperature batteries include enhanced safety features to ensure stable operation and protect against issues like overcharging or thermal instability in cold environments.
  • How long does it take to fully charge a lithium battery?

    Charging time depends on the battery's capacity and the charger's current. For example, if the battery capacity is 4000mAh and the charger current is 2500mA, charging time = 4000mAh / 2500mA = 1.6 hours.
  • How long do lithium batteries last?

    Our lithium battery cycle life is more than 500 times. The lifespan of a lithium battery depends on various factors, such as usage patterns, charging and discharging conditions, and overall maintenance.
  • Can lithium batteries be customized for specific applications?

    Yes, lithium batteries can be customized to meet specific requirements. This includes customizing the battery capacity, voltage, size, shape, and other parameters to suit the application's needs. Capacity: 20mAh~12000mAh, Voltage: 3.2 V~48 V.
