Electric Toothbrush Battery Guide: Types & Replacement Tips

The heart of every electric toothbrush is the battery. Without a reliable electric toothbrush battery, even the most advanced toothbrush becomes a useless chunk of plastic.

In this guide, we’ll explore every angle: battery types, how to replace them, how to pick the right one, and how to make it last longer. Plus, we’ll show you where to find custom lithium batteries built for performance and reliability.

Let’s dive in.

Part 1. Electric toothbrush battery structure and principle

To truly understand how your electric toothbrush works—and how to choose or replace the battery—you first need to know what’s inside. The battery may look small and simple, but it’s a highly engineered component. Its structure and how it functions are crucial to the overall performance of your toothbrush.

Let’s break it down.

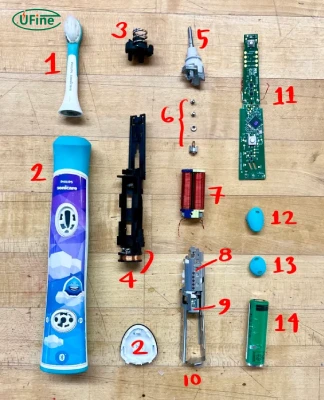

1. Internal Structure of an Electric Toothbrush Battery

Most modern electric toothbrushes—especially the rechargeable kind—use cylindrical lithium-ion batteries or lithium polymer (LiPo) cells due to their energy density and compact size. Here’s what the internal structure typically includes:

Key Battery Components:

• Cathode (Positive Electrode): Usually made of lithium cobalt oxide (LiCoO₂) or another lithium compound.
• Anode (Negative Electrode): Often made of graphite.
• Electrolyte: A lithium salt solution that allows ions to move between the anode and cathode.
• Separator: A porous film that keeps the cathode and anode from touching but allows ion flow.
• Outer Casing: Usually cylindrical metal (for Li-ion) or laminated foil pouch (for LiPo), designed to be compact and sealed.
• Protection Circuit Module (PCM): Prevents overcharging, short circuits, and overheating. Crucial for safety in lithium batteries.

In toothbrushes, these components are packaged tightly and may be soldered to a small control board that manages charging and discharging behavior.

2. How Does It Work? The Battery Principle Explained

The working principle of the electric toothbrush battery is based on electrochemical reactions—the movement of lithium ions between the anode and cathode.

Here’s what happens:

During Charging:

• Electrical energy from the charger pushes lithium ions from the cathode to the anode through the electrolyte.
• The ions are stored in the anode, typically layered graphite.

During Use (Discharging):

• When you press the power button to brush your teeth, the stored lithium ions flow back to the cathode, generating an electrical current.
• This current powers the motor inside the toothbrush, making the bristles oscillate or vibrate.

The energy cycle is fast, efficient, and highly repeatable. A good lithium-ion battery can go through hundreds of charge-discharge cycles without significantly degrading.

3. Why Battery Structure Matters in Toothbrush Design

Electric toothbrushes must be:

• Compact
• Lightweight
• Water-resistant
• Safe during constant recharging

That’s why lithium-ion and lithium polymer batteries are preferred. They pack a lot of power into a small size. Their flexibility in shape also allows manufacturers to fit them into slender, ergonomic toothbrush handles.

That’s where Ufine Battery shines. As a professional lithium battery manufacturer in China, Ufine offers custom battery solutions that meet strict design, safety, and performance needs. Whether you need ultra-thin, curved, or high-rate batteries, they can match exact product specs.

4. Common Battery Sizes and Ratings in Electric Toothbrushes

Depending on the brand and model, batteries in electric toothbrushes come in various formats. Some common ones include:

Choosing the right size and shape is crucial when replacing or designing a toothbrush battery. A mismatch can cause overheating, leakage, or poor fit.

Need a battery custom-designed for your electric toothbrush project or product line? Ufine Battery is your go-to partner. With years of expertise in lithium-ion and LiPo battery manufacturing, Ufine provides high-performance, safe, and fully customized battery solutions to clients around the world.

Part 2. Electric toothbrush battery types

There are two main types of batteries found in electric toothbrushes:

a. Disposable Batteries (AA or AAA)

These are used in budget-friendly models. They’re convenient—just pop in a new set when the old ones die. However, they don’t last long and need frequent replacement. They also generate more waste and can leak over time if not removed.

b. Rechargeable Built-in Batteries

Higher-end electric toothbrushes use built-in rechargeable batteries. These are either:

• Nickel-Metal Hydride (NiMH): Older but reliable. They’re affordable and safe, but have shorter battery life and lower energy density.
• Lithium-ion (Li-ion): These are the gold standard now. Lightweight, powerful, and with longer lifespans. Most premium electric toothbrushes now come with lithium-ion batteries.

Ufine Battery, a leading Chinese lithium battery manufacturer, specializes in both Li-ion and LiPo batteries. We can custom-make batteries for your toothbrush or any small device, matching exact dimensions, voltage, and capacity needs. Their batteries are trusted by global brands looking for high safety, longevity, and performance.

Ready to upgrade or customize your battery? Contact Ufine Battery today to get a quote or expert advice.

Part 3. Battery-powered vs. rechargeable electric toothbrush: A detailed comparison

Let’s compare the two:

While battery-powered brushes may seem easier, over time they’re costlier and less efficient. Rechargeable toothbrushes with lithium-ion batteries clearly offer more value.

Part 4. Can you replace an electric toothbrush battery?

The short answer: yes, but it depends on the model.

Many toothbrushes have batteries sealed inside, especially waterproof ones. Manufacturers often don’t design them for replacement. That said, if you’re a DIY enthusiast, replacing the battery is possible.

But be warned:

• You might void your warranty.
• You’ll need tools.
• You’ll need a compatible replacement battery.

This is where custom lithium batteries come in handy. Ufine Battery can provide small, high-quality Li-ion or Li-polymer batteries designed for compact devices like electric toothbrushes. We can even help match the voltage, size, and capacity your toothbrush needs.

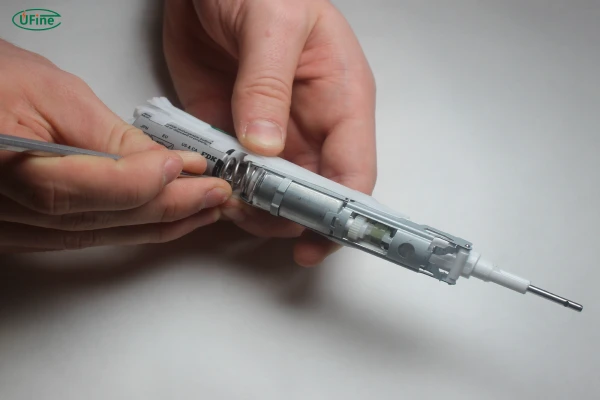

Part 5. How to replace an electric toothbrush battery

⚠️ Always wear protective gloves and goggles. You’re dealing with electronics, after all.

• Identify Your Toothbrush Model: Look for teardown videos or guides online.
• Open the Casing: Use a prying tool or screwdriver. Some models open from the bottom; others require you to twist off the cap.
• Remove the Old Battery: Note how it’s connected—soldered or clipped. Take a picture before detaching it.
• Check Battery Specs: Voltage, capacity (mAh), and size. This ensures you find the right replacement.
• Install the New Battery: If soldered, you’ll need a soldering iron. Otherwise, snap in the new one.
• Reassemble: Put everything back carefully. Ensure no wires are pinched.
• Test It: Charge and power on.

Need a reliable custom battery for replacement? Ufine Battery can help you select or design the perfect lithium battery for your needs. Our engineers are experts in high-rate, high-temperature, and ultra-thin lithium battery solutions.

Part 6. 7 Must-know tips for choosing a good battery

When replacing an electric toothbrush battery, don’t just pick any battery from a random online store. Here’s what really matters:

• Battery Chemistry: Li-ion is best for longer life and better energy density.
• Correct Voltage: Always match your toothbrush’s voltage (e.g., 3.7V or 1.2V).
• Right Capacity (mAh): Higher capacity = longer use time, but make sure it fits physically.
• Size & Shape: Cylindrical or rectangular? Flat or curved? Precision matters here.
• Cycle Life: Look for batteries that can last 300–1,000 charging cycles.
• Brand & Source: Trustworthy manufacturers reduce risk of leaks or explosions.
• Safety Features: Choose batteries with built-in short circuit and overcharge protection.

Ufine Battery specializes in all of the above. We offer custom lithium batteries with exact specs for compact devices, backed by quality testing and global exports.

Part 7. Is a bigger battery always better?

This is a common misunderstanding.

It’s tempting to go for a higher mAh number, but a battery that’s “too big” can:

• Take longer to charge
• Not fit your toothbrush
• Overload internal circuits
• Generate more heat

Always balance capacity with compatibility. Sometimes, the best battery is the one that fits just right.

That’s why custom battery design is so valuable. Ufine Battery can help you create a battery that delivers performance without sacrificing safety or fit.

Part 8. How long does an electric toothbrush battery last?

Here’s what to expect:

• NiMH Battery: 1–2 years of daily use
• Li-ion Battery: 3–5 years, sometimes more
• Disposable AA/AAA: A few weeks to 2 months

But these numbers depend on how you use and charge your brush. Overcharging or completely draining the battery every time will wear it out faster.

Part 9. How to make your electric toothbrush battery last longer

Want to get the most out of your battery? Here’s how:

• Don’t Overcharge: Once it’s full, unplug it.
• Avoid Full Discharges: Recharge when it hits 20–30%.
• Use the Right Charger: Avoid knock-offs.
• Keep It Dry: Moisture can damage internal circuits.
• Store It Safely: Keep away from extreme heat or freezing temps.
• Clean Regularly: A dirty handle can trap moisture and shorten battery life.
• Charge Smartly: Don’t leave it plugged in for days.

These little habits go a long way in extending battery lifespan.

Part 10. Final thoughts

The battery inside your electric toothbrush may be small, but it makes a huge difference in your daily life. A failing battery can turn an amazing toothbrush into a frustrating tool. But with the right knowledge—and the right battery—you can bring it back to life and even make it better.

Ufine

Battery Industry Content Writer
