Welcome to the ultimate guide on LiFePO4 charge voltage. In this comprehensive article, we will delve into the intricacies of LiFePO4 charge voltage and equip you with the knowledge to optimize the charging process for these exceptional batteries. Whether you’re a novice or an experienced user, understanding charge voltage is crucial for maximizing the performance, longevity, and safety of your LiFePO4 batteries.

Part 1. Understanding LiFePO4 charge voltage

Definition of Charge Voltage:

In LiFePO4 batteries, charge voltage refers to the electrical pressure applied to the battery during the charging process. This voltage drives the flow of electrons into the battery, storing energy for later use. Picture it like filling a water tank; the charge voltage is the force pushing water into the tank.

Importance of Charge Voltage:

The charge voltage holds immense importance for LiFePO4 batteries as it directly influences their performance and lifespan. If the charge voltage is too low, the battery may not store enough energy, reducing capacity and shorter runtime. Conversely, if the charge voltage is too high, it can damage the battery, causing performance degradation and premature failure.

Optimal Charge Voltage Range:

The optimal charge voltage range for LiFePO4 batteries typically falls between 3.2 to 3.65 volts per cell. This range of charging within it ensures efficient energy storage without overloading or undercharging the battery. It’s akin to hitting the target dead center, maximizing battery performance, and extending its lifespan.

Part 2. Factors affecting LiFePO4 charge voltage

Temperature:

Temperature fluctuations significantly influence the charge voltage of LiFePO4 batteries. LiFePO4 batteries typically operate optimally within a temperature range of 0°C to 45°C (32°F to 113°F). High temperatures can decrease the battery’s internal resistance, requiring lower charge voltages. In contrast, low temperatures can increase resistance, necessitating higher voltages for charging. It’s akin to how your body needs more energy to stay warm in cold weather and less when it’s hot.

State of Charge (SoC):

The battery’s state of charge (SoC) directly impacts its charge voltage. As the battery charges and reaches higher states of charge, the required voltage decreases to prevent overcharging. Conversely, when the battery discharges, the voltage needed for charging increases to replenish its energy stores. Think of it like filling a glass with water; as it gets fuller, you must pour more slowly to prevent spills.

Cell Aging:

As LiFePO4 batteries age, their capacity and voltage characteristics change due to cell aging. This aging process can result in decreased capacity and altered voltage requirements for charging. By monitoring and adjusting the charging voltage, you can mitigate the effects of cell aging accordingly, prolonging the battery’s lifespan. It’s similar to how regular maintenance can help extend the life of aging machinery.

Battery Management Systems (BMS):

Battery Management Systems (BMS) are crucial in managing charge voltage by monitoring various battery parameters. BMS ensures the battery operates within safe limits by regulating the charging voltage, preventing overcharging or undercharging. Additionally, BMS protects the battery from harmful conditions such as overcurrent, overtemperature, and short circuits. It’s like having an intelligent guardian for your battery, ensuring its safety and longevity.

Battery Capacity:

The capacity of LiFePO4 batteries typically ranges from 50 Ah to 400 Ah, depending on the specific application and requirements. Higher-capacity batteries can store more energy and may require higher charge voltages to reach total capacity efficiently. Conversely, lower-capacity batteries have lower energy storage capabilities and may need lower voltages for charging. Matching the charge voltage to the battery’s capacity ensures optimal charging and maximizes energy storage.

Part 3. LiFePO4 charge voltage recommendations

Charging Method

When it comes to charging LiFePO4 batteries, there are two primary methods: constant voltage charging and constant current charging.

Constant Voltage Charging:

In constant voltage charging, the charger supplies a continuous voltage to the battery until it reaches a predetermined voltage level. Once the battery reaches this voltage, the charger reduces the current flow to maintain a steady voltage.

This method is commonly used for bulk charging and is suitable for quickly charging LiFePO4 batteries to their maximum capacity.

Constant Current Charging:

Constant current charging involves supplying a continuous current to the battery until it reaches a certain voltage threshold. Unlike continual voltage charging, the current remains constant throughout the charging process.

Users often employ this method to trickle or maintain the battery’s charge level over an extended period. It’s beneficial for applications where the battery is regularly used and needs to be topped up frequently.

Charging Cycles

LiFePO4 batteries follow specific charging cycles that dictate how to charge them to maximize their performance and lifespan.

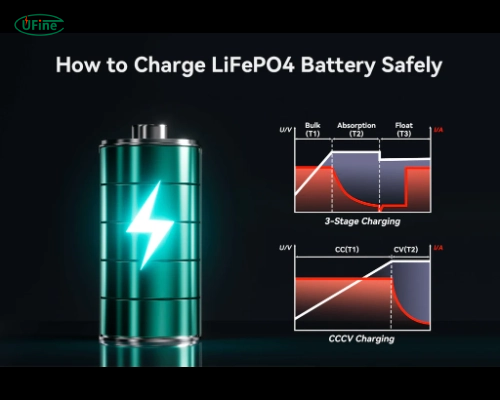

Bulk Charging:

During the bulk charging phase, the battery is charged at its maximum rate until it reaches around 80% of its capacity. High charging currents characterize the process during this phase, aiming to replenish the battery’s charge quickly.

Absorption Charging:

The charger switches to absorption charging once the battery reaches around 80% of its capacity. In this phase, the charger maintains a constant voltage while gradually reducing the charging current and allowing the battery to absorb the remaining charge more slowly, preventing overcharging.

Float Charging:

After the absorption charging phase, the charger enters float charging mode. In this mode, the charger maintains a lower voltage to keep the battery fully charged without overcharging it. Float charging is ideal for maintaining the battery’s charge level over an extended period without causing damage.

Trickle Charging:

Trickle charging is a low-current method used to maintain the battery’s charge level over long periods of inactivity. It involves supplying a small, constant current to the battery to offset self-discharge and ensure it remains ready for use when needed.

Part 4. FAQs

What voltage should I charge my LiFePO4 battery?

Charging your LiFePO4 battery within the recommended range of 3.2 to 3.65 volts per cell ensures optimal charging without risking damage to the battery.
What is the charge cut-off voltage for LiFePO4?

The charge cut-off voltage for LiFePO4 batteries is typically around 3.65 volts per cell. This voltage level indicates that the battery has reached full charge, and further charging could lead to overcharging.
What is the float voltage for LiFePO4?

The float voltage for LiFePO4 batteries is generally around 3.2 to 3.3 volts per cell. This voltage level maintains the battery’s full charge during float charging without overcharging it.
What is the fully charged voltage of LiFePO4 3.2 V?

The fully charged voltage of a LiFePO4 battery rated at 3.2 volts per cell is typically around 3.65 to 3.7 volts per cell. This voltage level indicates that the battery has reached its maximum capacity and has fully charged.
What is the charging current for LiFePO4?

The charging current for LiFePO4 batteries varies depending on factors such as battery capacity and charging method. However, it’s common to charge LiFePO4 batteries at a rate of 0.5 to 1.0 times their capacity in ampere-hours (Ah). A charger can charge a 100 Ah LiFePO4 battery at 50 to 100 amps current.
