In this comprehensive guide, we will explore the major Panasonic 18650 battery models, explain how they differ, and help you choose the right one for your application.

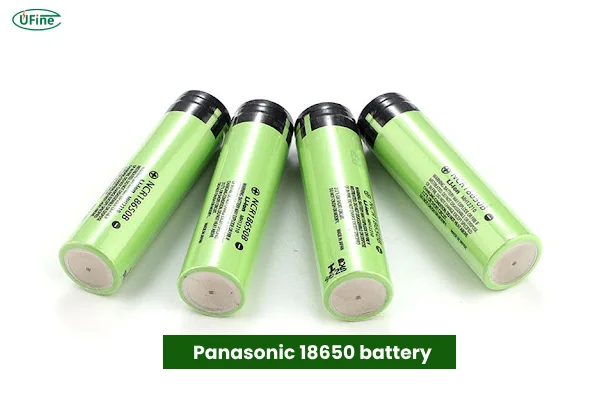

Part 1. Learn about Panasonic 18650 batteries
The 18650 battery is a cylindrical lithium-ion cell measuring 18mm in diameter and 65mm in length. These cells have become a global standard in energy storage due to their high energy density, long cycle life, and stable discharge performance.
Panasonic has long been a leader in lithium-ion technology, producing some of the most reliable and widely-used 18650 cells in the world. Their batteries are used in everything from Tesla vehicles to aerospace systems and medical equipment.
Part 2. What is a Panasonic 18650 battery?
Panasonic 18650 batteries are rechargeable lithium-ion cells with various chemistries, primarily based on NCR (Nickel Cobalt Rechargeable) or NCA (Nickel Cobalt Aluminum) compositions. These batteries typically feature:
- Nominal voltage: 3.6V – 3.7V
- Capacity range: 2,900mAh – 3,500mAh
- Max discharge current: 4.9A – 10A+
- Cycle life: 300–500+ full charge cycles
- Cell type: Flat top or button top; protected or unprotected
These characteristics make Panasonic batteries ideal for both low-drain and high-drain devices, offering a great balance between safety, capacity, and performance.
Part 3. Panasonic 18650 battery naming system explained
Panasonic uses a model naming convention that often begins with NCR, followed by the cell size (18650), and ending with a letter or two that distinguishes the specific model (e.g., B, GA, PF).
Common Panasonic Suffixes:
- NCR18650B: High-capacity, low-discharge
- NCR18650GA: High capacity with high current capability
- NCR18650PF: Lower capacity but higher discharge rate
- BE, BD, BL: Specialized versions with varied internal chemistries
Panasonic cells may also come in protected or unprotected formats and with button top or flat top terminals, depending on application needs.
Part 4. Panasonic NCR18650B: the high-capacity workhorse
The NCR18650B is one of the most popular Panasonic cells due to its high energy capacity (~3400mAh) and excellent cycle life. It’s a top choice for devices that require long runtimes but don’t draw high current, such as:
- Flashlights
- Portable fans
- DIY battery banks
- Solar energy storage
Specifications:
- Nominal Capacity: 3,400mAh
- Max Continuous Discharge: ~4.9A
- Top Type: Usually flat top
- Protection: Available in both protected and unprotected versions
Pros:
- Excellent energy density
- Long runtime
- Widely available
Cons:
- Lower max discharge current
- Not ideal for high-drain tools
Part 5. Panasonic NCR18650GA: balanced power and capacity
The NCR18650GA is often regarded as a more balanced cell that offers high capacity (~3,500mAh) and a max discharge current of up to 10A. It’s perfect for applications like:
- Electric bikes (e-bikes)
- Power tools
- Drones and RC models
Specifications:
- Capacity: 3,500mAh
- Max Discharge: 10A
- Voltage: 3.6V nominal
- Cycle life: ~500 cycles
Why It Stands Out:
The GA combines the high energy density of the NCR18650B with nearly double the discharge capability, making it a versatile option for mixed-use cases.
Part 6. Panasonic NCR18650PF: the high-drain performer
If you need performance under high current, the NCR18650PF is your cell. With a capacity of ~2,900mAh and a discharge rate over 10A, this model is ideal for:
- Cordless power tools
- Vaping devices
- Electric skateboards
- Medical devices
Specifications:
- Capacity: 2,900mAh
- Max Continuous Discharge: 10A+
- Internal Resistance: Low
- Form Factor: Flat top, unprotected or protected
The PF sacrifices capacity for power output, which is crucial in tools and devices that require quick energy bursts.
Part 7. Panasonic NCR18650BD, BL, and BE: lesser-known options
These models are less commonly found but are still valuable depending on your needs.
- NCR18650BD: ~3,180mAh, up to 10A discharge
- NCR18650BE: ~3,200mAh, 6.4A discharge – used in laptops
- NCR18650BL: Balanced chemistry for safety-critical devices
They serve niche applications such as laptop battery packs, industrial sensors, and robotics where cell balancing, temperature control, and consistent voltage delivery are key.
Part 8. Protected vs unprotected Panasonic 18650 batteries
Panasonic cells come in protected and unprotected formats.
Protected cells have an integrated PCB (Protection Circuit Board) that guards against overcharge, over-discharge, and short circuit. Ideal for:
- Flashlights
- Portable devices
- Consumer electronics
Unprotected cells are raw cells without safety mechanisms and require an external Battery Management System (BMS). Recommended for:
- Battery packs
- DIY projects
- Industrial use
If you’re unsure, go with protected cells, especially if the device lacks built-in safeguards.
Part 9. Button top vs flat top Panasonic 18650 batteries
Physically, 18650 cells are available in:
- Flat Top: No protrusion; suitable for battery packs, power tools, and PCB holders
- Button Top: Protruding positive terminal; fits better in consumer devices like flashlights
Make sure to check your device’s battery tray or contact points before choosing.
Part 10. How to identify genuine Panasonic 18650 batteries
The popularity of Panasonic cells makes them a common target for counterfeit products. Here’s how to spot genuine ones:
- Weight: Originals are typically 45g–48g
- Barcodes and QR Codes: Unique, laser-etched
- Insulation Ring: Clean and well-placed
- Wrap Print: Clear, aligned, no spelling errors
- Seller Reputation: Buy from trusted suppliers
🔧 Pro Tip:
Work with verified vendors like Ufine Battery, who not only distribute genuine cells but also offer customized solutions. Contact us now!
Part 11. Comparison table of popular Panasonic 18650 models
Model | Capacity | Max Discharge | Type | Applications |
---|---|---|---|---|
NCR18650B | 3,400mAh | 4.9A | Flat Top | Solar, Flashlights |
NCR18650GA | 3,500mAh | 10A | Flat Top | E-bikes, Power tools |
NCR18650PF | 2,900mAh | 10A+ | Flat Top | Drills, Drones, RC Cars |
NCR18650BE | 3,200mAh | 6.4A | Flat Top | Laptop battery packs |
NCR18650BD | 3,180mAh | 10A | Flat Top | Robotics, High drain devices |
Part 12. Panasonic 18650 batteries vs other brands
Panasonic competes with brands like Samsung, LG, Sony (Murata), and Molicel. Here’s how it compares:
- Panasonic: Best for longevity and stability
- Samsung 30Q: Similar to GA but slightly higher discharge
- LG MJ1: High energy capacity
- Molicel P26A: Great for ultra-high-drain (up to 35A)
Panasonic is often preferred for safety-critical applications where battery consistency and reliability matter more than raw output.
Part 13. Panasonic 18650 battery applications
Panasonic’s 18650 cells are widely used in:
- Electric vehicles (especially older Tesla models)
- Battery packs for energy storage systems
- E-bikes and scooters
- Flashlights and tactical gear
- Medical equipment and industrial tools
For custom devices or niche applications, manufacturers like Ufine Battery offer tailor-made lithium battery packs using Panasonic-grade cells or equivalent 18650 formats.
Part 14. How to safely use and store Panasonic 18650 batteries
Safety is key with any lithium-ion cell. Here’s how to get the best from your Panasonic batteries:
- Charge with a certified charger
- Avoid over-discharging below 2.5V
- Store between 20°C–25°C in dry conditions
- Never puncture or crush
- Use a BMS in multi-cell packs
For commercial or industrial projects, working with a reliable custom manufacturer ensures safer integration. That’s where Ufine Battery adds value.
Part 15. Custom 18650 battery solutions from Ufine Battery
While Panasonic offers some of the best 18650 cells on the market, many applications require custom-built battery packs with specific voltages, capacities, or configurations.
Ufine Battery, a reputable Chinese lithium battery manufacturer, provides:
- Custom 18650 battery packs (flat top, button top, protected/unprotected)
- High-rate, ultra-thin, or high-temperature battery designs
- Li-ion, LiPo, and LiFePO4 batteries
- Fast delivery and global support
Whether you’re developing a new device or scaling up your product line, Ufine Battery can deliver tailored lithium solutions to meet your voltage, current, and size requirements—fast and reliably.
Part 16. Choosing the right Panasonic 18650 battery
Panasonic’s 18650 battery lineup offers a model for nearly every use case, from the high-capacity NCR18650B to the high-drain NCR18650PF. Choosing the right model depends on your application’s requirements for capacity, discharge rate, and size.
For those needing custom 18650 battery packs or large-scale supply, Ufine Battery offers professional-grade solutions, delivering both Panasonic-compatible cells and customized configurations for industrial and commercial use.
