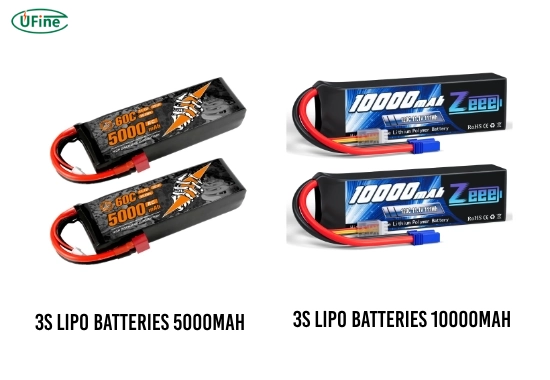

High‑Capacity 3S LiPo Batteries: 5000 mAh vs. 10000 mAh

What is the difference between a 3S LiPo battery of 5000 mAh and a 3S LiPo battery of 10000 mAh, and which one should you choose? This is a common question among drone pilots, RC car enthusiasts, and electric boat racers. In this guide, we provide a comprehensive comparison of these two battery types, covering performance, weight, discharge rate, use cases, and more. If you’re trying to decide which battery is best for your build, you’ve come to the right place.

Part 1. Understanding the basics of 3S LiPo batteries

A 3S LiPo battery is a lithium polymer battery with three cells connected in series. Each cell typically has a nominal voltage of 3.7 volts, resulting in a total output of 11.1 volts. These batteries are widely used in RC hobbies because they provide high energy output in a compact and lightweight form.

The “S” refers to the number of cells in series. The more cells, the higher the voltage. The 3S configuration strikes a balance between power and safety, making it a popular option for both beginners and experienced users.

Part 2. What does 5000 mAh or 10000 mAh mean in a 3S LiPo battery?

The term mAh stands for milliamp-hours, indicating the amount of energy a battery can store. A 3S LiPo battery 5000 mAh can deliver 5000 milliamps for one hour, while a 3S LiPo battery 10000 mAh can deliver 10000 milliamps for one hour.

In simple terms:

• A higher mAh rating means longer runtime
• A lower mAh rating means lighter weight and faster charge times

However, this is only one piece of the puzzle. You also need to consider discharge rate, weight, physical size, and intended use.

Part 3. Comparing energy capacity and weight in 3S LiPo battery 5000 mAh vs. 10000 mAh

While a 3S LiPo battery 10000 mAh offers more runtime, it comes with a significant weight increase. This added weight can impact speed, agility, and handling, especially in drones and RC vehicles.

Key insight: If your model is weight-sensitive, the 5000 mAh battery may perform better. For missions requiring long endurance, the 10000 mAh battery is a more suitable choice.

Part 4. Discharge rates and performance in 3S LiPo batteries

Both 3S LiPo battery 5000 mAh and 3S LiPo battery 10000 mAh are available in various C-ratings. The C-rating indicates how fast the battery can discharge its stored energy safely.

To calculate the maximum continuous output:

• Multiply the C-rating by the capacity (in amps)
• For example: A 5000 mAh battery at 30C can discharge at 150 amps

A higher capacity battery does not always mean higher power output. The C-rating plays a critical role in performance. Always match the C-rating with your motor and ESC requirements.

Part 5. Specification comparison of 3S LiPo battery 5000 mAh vs. 10000 mAh

Here’s a detailed table comparing the most common specifications to help you decide which one suits your needs:

This table targets users searching for “3S LiPo battery compare” and helps answer their questions quickly, potentially improving your chance of showing in featured snippets.

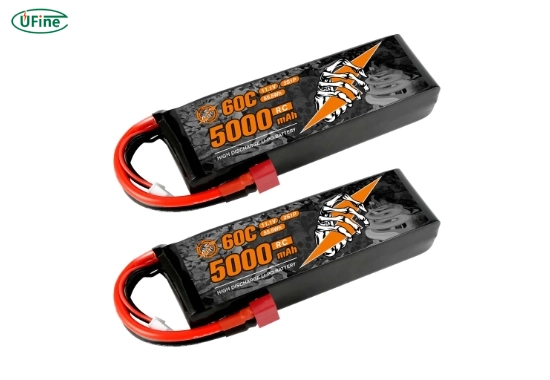

Part 6. Best applications for 3S LiPo battery 5000 mAh

The 3S LiPo battery 5000 mAh is the go-to choice for many RC enthusiasts. Its lightweight and fast response make it perfect for:

• FPV racing drones where agility is critical
• RC buggies and drift cars for fast acceleration
• Entry-level airplanes with moderate flight time requirements
• Boats where balance and quick bursts of speed are needed

With a 30C to 100C rating, this battery offers high discharge rates, making it suitable for high-performance maneuvers. It also charges faster, reducing downtime between runs.

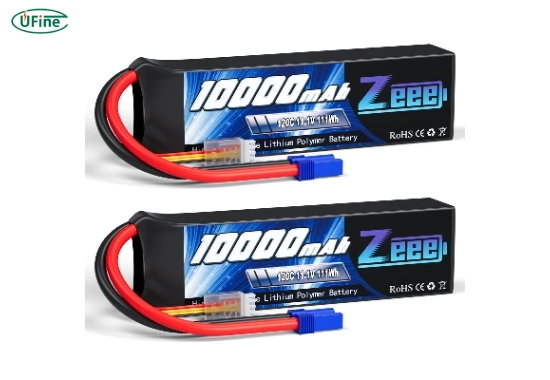

Part 7. Best applications for 3S LiPo battery 10000 mAh

The 3S LiPo battery 10000 mAh excels in endurance scenarios. Its high energy storage allows for extended operation, making it ideal for:

• Survey drones and mapping missions that require 30+ minutes of continuous flight
• Aerial photography where longer hovering times are needed
• Electric boats used for fishing or exploration
• Heavy-lift drones with high power demands

Because of its larger size and weight, this battery is better suited for professional or industrial use rather than speed-focused applications.

Part 8. Life expectancy and warranties of 3S LiPo batteries

The lifespan of a 3S LiPo battery depends on how it’s used, how often it’s charged, and whether it’s properly maintained.

• Most LiPo batteries last 150 to 300 cycles
• Deep discharges and overcharging reduce the lifespan
• Keeping batteries at storage voltage when not in use helps preserve them

5000 mAh batteries may be cycled more frequently due to shorter runtimes, possibly leading to faster wear. In contrast, 10000 mAh batteries may last longer per use, reducing the total number of cycles.

Warranties typically range from 6 months to 1 year, depending on the brand. Always choose batteries from reputable manufacturers with clear warranty terms.

Part 9. How to choose between 3S LiPo battery 5000 mAh and 10000 mAh?

Here’s how to choose the right battery based on your setup:

There is no one-size-fits-all answer. It depends on your project goals, vehicle specs, and personal preferences.

Part 10. Integration tips for 3S LiPo battery 5000 mAh and 10000 mAh

When using high-capacity LiPo batteries, proper integration is key to safe and efficient performance.

• Use an ESC that can handle the peak discharge current
• Match the connector type: XT60 for 5000 mAh, XT90 or EC5 for 10000 mAh
• Ensure your battery tray or compartment fits the dimensions
• Use a LiPo balance charger for safe and balanced charging
• Monitor battery temperature to prevent overheating

For the 10000 mAh variant, consider using a high-wattage charger to reduce charging time. Charging at 1C means it would take about 1 hour for a full charge at 10 amps.

Part 11. FAQs about 3S LiPo battery 5000 mAh and 10000 mAh

What is the difference between a 3S LiPo 5000 mAh and 10000 mAh battery?

The main difference is energy capacity and weight. A 10000 mAh battery offers longer runtime but is heavier, while a 5000 mAh battery is lighter with shorter runtime.

Which battery is better for drones?

For racing drones, the 5000 mAh battery is better due to its lightweight. For long-range or aerial filming drones, the 10000 mAh battery provides better endurance.

Can I use a 10000 mAh battery on my RC car or boat?

Yes, as long as your ESC and frame can support the increased weight and current draw. Make sure the battery fits within your model’s compartment.

How long does a 3S LiPo battery last?

Most LiPo batteries last 150 to 300 charge cycles with proper care. Storing them at 3.8V per cell and avoiding full discharges improves longevity.

Is it safe to charge a 10000 mAh LiPo with a normal charger?

Only if the charger supports the required amperage and voltage. A 10000 mAh battery will take longer to charge and may require a high-wattage balance charger for optimal performance.
