Ultra-thin lithium polymer battery UFX013050 100mAh 3.7V

Item No.: ufx014
UFX013050 100mAh 3.7V is designed for specific applications and is characterized by its extreme thinness and flexibility in shape.  Can be designed to This type of battery is designed for specific applications and is characterized by its extreme thinness.
$0.00
/ Pieces
Description Review
Description

Ufine Product Features

High energy density

Long cycle life

Capability of discharge at ultra-low temperature of -40℃

Ability to be designed for high voltage (up to 4.4V)

Customizable sample and mass production according to customer needs.

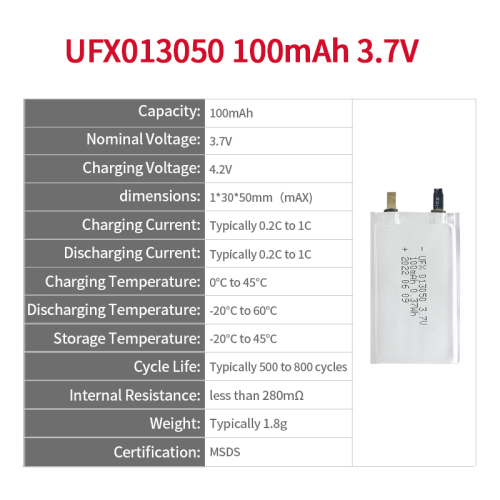

Specs of UFX013050 100mAh 3.7V

1、Mechanical Characteristics

Cell:

UFX013050

Demension

Max 1*30*50mm

Weight:

appr. 1.8g

2、Electrical Specification

Capacity:

100mAh

Nominal Voltage:

3.7V

Energy:

0.37Wh

Internal Impedance:

less than 208mΩ

Max. Charge Voltage:

4.2V

Discharge Cut Off:

2.75V

Max. Charge Current:

100mA

Max. Discharge Current:

100mA

Standard Charge Current:

50mA

Standard Discharge Current:

50mA

Charge Temp. Range:

10°C to 45°C

Discharge Temp. Range

-20°C to 60°C

Storage Temp. Range

1 year at -20℃ to +30℃

 Cycle life:

100 cycles ≥92%

3 moths at -20℃ to +45℃

300 cycles ≥88%

1 month at -20℃ to +60℃

500 cycles ≥80%

3、Cycle life Characteristics

4、Discharge Characteristics


 1

Product Details

Ufine is a manufacturer  with independent research and development and production of polymer lithium-ion batteries. With years of experience in the field of polymer lithium-ion battery solutions, We have accumulated rich  technical experience. Currently, the company offers more than 300 different product models, all certified with KC, UL, CB, and other certifications.Moreover, We can quickly design and develop new products according to customer needs and arrange sample testing.

Why Choose Ufine to OEM or ODM Battery

UFine battery has over 30 professional engineers and technical staff who can provide polymer lithium battery solutions for you. As a lithium battery manufacturer, we are capable of rapid design, customization, and bulk production. Here are the main characteristics of our company:
1、Source manufacturer, strong factory, and powerful design and development capabilities.
2、
Short delivery time and sufficient inventory.

3、Self-produced, sufficient capacity, refuse false labeling, and guarantee capacity.
4、Strict quality control through a full range of quality systems from raw materials to finished products.
5、Our products are certified and meet various international battery standards, allowing us to directly export to markets such as Europe, America, and Korea.
6、Our team of professional foreign trade sales engineers can quickly respond to customer inquiries and provide solutions

Factory Photos

Display Of Testing Equipment


Certification


 1

Product Details

Ufine is a manufacturer  with independent research and development and production of polymer lithium-ion batteries. With years of experience in the field of polymer lithium-ion battery solutions, We have accumulated rich  technical experience. Currently, the company offers more than 300 different product models, all certified with KC, UL, CB, and other certifications.Moreover, We can quickly design and develop new products according to customer needs and arrange sample testing.

 1Ufine Product Features

High energy density

Long cycle life

Capability of discharge at ultra-low temperature of -40℃

Ability to be designed for high voltage (up to 4.4V)

Customizable sample and mass production according to customer needs.

Specs of UFX012323 30mAh 3.7V

UFX012323 30mAh 3.7V

Capacity

30mAh

Nominal Voltage

3.7V

Charging Voltage

4.2V

Size

1*23*23mm(mAX)

Charging Current

Typically 0.5C to 1C

Discharging Current

Typically 0.5C to 2C

Charging Temperature

0°C to 45°C

Discharging Temperature

-20°C to 60°C

Storage Temperature

 -20°C to 45°C

Cycle Life

Typically 500 to 800 cycles

Internal Resistance

less than 100mΩ

Weight

Typically 2g

Certification

MSDS

Why Choose Ufine to OEM or ODM Battery.

UFine battery has over 30 professional engineers and technical staff who can provide polymer lithium battery solutions for you. As a lithium battery manufacturer, we are capable of rapid design, customization, and bulk production. Here are the main characteristics of our company:
1、Source manufacturer, strong factory, and powerful design and development capabilities.
2、
Short delivery time and sufficient inventory.

3、Self-produced, sufficient capacity, refuse false labeling, and guarantee capacity.
4、Strict quality control through a full range of quality systems from raw materials to finished products.
5、Our products are certified and meet various international battery standards, allowing us to directly export to markets such as Europe, America, and Korea.
6、Our team of professional foreign trade sales engineers can quickly respond to customer inquiries and provide solutions

Factory Photos

Display Of Testing Equipment


Certification
