Ufine Product Features

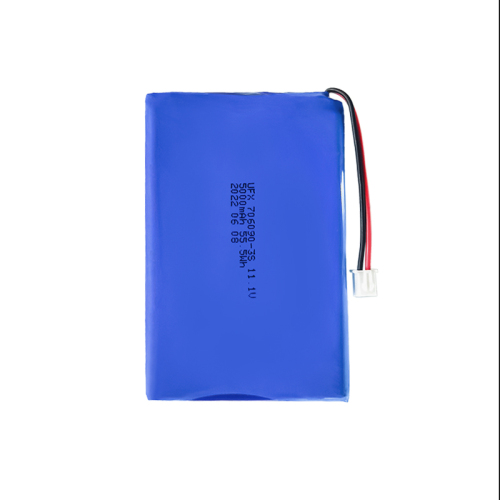

Lithium polymer batteries are commonly used in various electronic devices, including smartphones, tablets, laptops, and remote-controlled toys, among others. The UFX706090-3S battery has a capacity of 5000mAh, which means it can supply a current of 5 amps for one hour or 1 amp for 5 hours. The voltage of the battery is 11.1V, which is a common voltage for many lithium polymer batteries.
1、Mechanical Characteristics |
|||
Cell: |
UFX706090-3S |
PCM: |
Yes |
NTC: |
No |
Weight: |
appr. 230g |
Configuration: |
3S1P |
Demension |
Max 21*60*92mm |
2、Electrical Specification | |||
Capacity: |
5000mAh |
Nominal Voltage: |
11.1V |
Energy: |
55.5Wh |
Internal Impedance: |
less than 160mΩ |
Max. Charge Voltage: |
12.6V |
Discharge Cut Off: |
8.25V |
Max. Charge Current: |
5000mA |
Max. Discharge Current: |
5000mA |
Standard Charge Current: |
2500mA |
Standard Discharge Current: |
2500mA |
Charge Temp. Range: |
10°C to 45°C |
Discharge Temp. Range |
-20°C to 60°C |
Storage Temp. Range |
1 year at -20℃ to +30℃ |
Cycle life: |
100 cycles ≥92% |
3 moths at -20℃ to +45℃ |
300 cycles ≥88% | ||
1 month at -20℃ to +60℃ |
500 cycles ≥80% |
||
3、Cell protection |
|||
Overcharge Detection : |
4.25 ±30mV (0.5to 1.5sec delay, release 4.15V ±50mV) |
Overdischarge Detection: |
2.7V ±80mV (50 to 150msec. delay, release 3.0V ±100mV) |
Overcurrent Detection: |
8A to 10A (5to 15msec. delay) |
Short protection: |
Yes |
4、Cycle life Characteristics of Cell |
5、Discharge Characteristics of Cell |
||
![]() |
|
||
