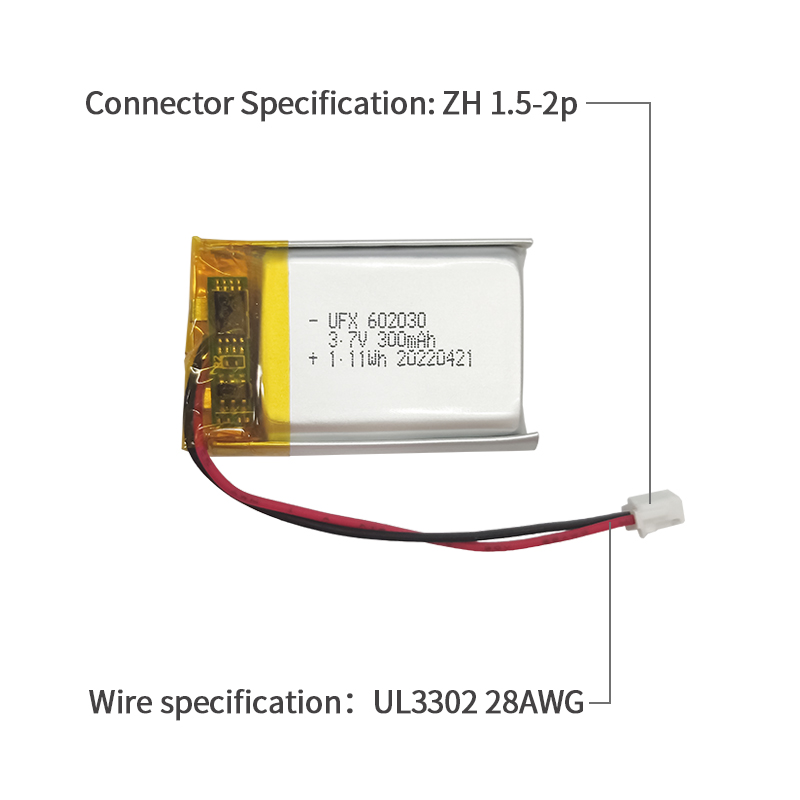

UFX602030 300mAh 3.7V China Lithium-ion Cell Factory Professional Custom

Item No.: ufx068
The UFX602030 300mAh 3.7V is a rechargeable lithium polymer battery pack that is commonly used in small electronic devices such as wireless earbuds, smartwatches, and remote control toys.
$0.00
/ Pieces
Description Review
Description

Brand:UFINE NEW ENERGY (UFX)

The UFX602030 300mAh is a rechargeable lithium polymer battery pack commonly used in small electronic devices such as digital cameras, portable speakers, and Bluetooth headsets.



The battery pack has a nominal voltage of 3.7 volts and a capacity of 300mAh, which means it can deliver 0.3 amps of current for one hour before it needs to be recharged. The UFX602030 designation indicates the physical size of the battery pack, with dimensions of 6mm x 20mm x 30mm.


Specs of UFX602030 300mAh 3.7V

1、Mechanical Characteristics

Cell:

UFX602030

PCM:

Yes

NTC:

No

Weight:

appr. 6.4g

Configuration:

1S1P





2、Electrical Specification

Capacity:

300mAh

Nominal Voltage:

3.7V

Energy:

1.11Wh

Internal Impedance:

less than 200mΩ

Max. Charge Voltage:

4.2V

Discharge Cut Off:

2.75V

Max. Charge Current:

300mA

Max. Discharge Current:

300mA

Standard Charge Current:

60mA

Standard Discharge Current:

60mA

Charge Temp. Range:

10°C to 45°C

Discharge Temp. Range

-20°C to 60°C

Storage Temp. Range

1 year at -20℃ to +30℃

 Cycle life:

100 cycles ≥92%

3 moths at -20℃ to +45℃

300 cycles ≥88%

1 month at -20℃ to +60℃

500 cycles ≥80%

 3、Cell protection

Overcharge Detection :

4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)

Overdischarge Detection:

2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)

Overcurrent Detection:

2.5A to 4.0A (9 to 15msec. delay)

Short protection:

Yes

4、Discharge Rate Characteristics

4、Cycle life Characteristics

 1

Product Details


Ufine is a manufacturer  with independent research and development and production of polymer lithium-ion batteries. With years of experience in the field of polymer lithium-ion battery solutions, We have accumulated rich  technical experience. Currently, the company offers more than 300 different product models, all certified with KC, UL, CB, and other certifications.Moreover, We can quickly design and develop new products according to customer needs and arrange sample testing.



Why Choose Ufine to OEM or ODM Battery

UFine battery has over 30 professional engineers and technical staff who can provide polymer lithium battery solutions for you. As a lithium battery manufacturer, we are capable of rapid design, customization, and bulk production. Here are the main characteristics of our company:
1、Source manufacturer, strong factory, and powerful design and development capabilities.
2、
Short delivery time and sufficient inventory.

3、Self-produced, sufficient capacity, refuse false labeling, and guarantee capacity.
4、Strict quality control through a full range of quality systems from raw materials to finished products.
5、Our products are certified and meet various international battery standards, allowing us to directly export to markets such as Europe, America, and Korea.
6、Our team of professional foreign trade sales engineers can quickly respond to customer inquiries and provide solutions
