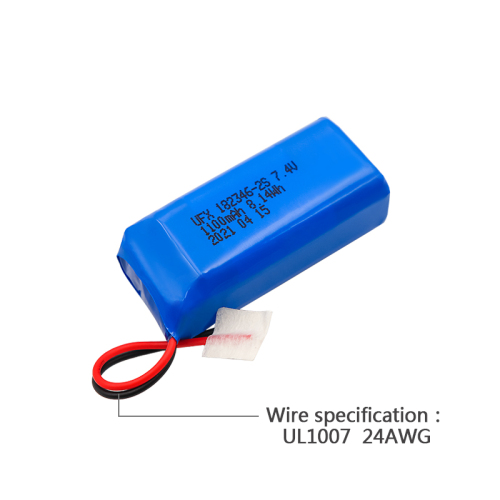

UFX182346-2S 1100mAh 7.4V China Lithium-ion Cell Factory Professional Custom

Item No.: UFX034
UFX182346-2S 1100mAh 7.4V features the combination of two battery cells in series, paired based on voltage, capacity, and internal resistance. The battery is rated at a nominal voltage of 7.4V, which increases the voltage.
$0.00
/ Pieces
Description Review
Description

UFX182346-2S is a lithium polymer battery with a battery code of UFX182346, a voltage of 7.4V, and a battery capacity of 1100mAh. This type of battery has the advantages of high energy density, lightweight, and no memory effect, and is widely used in fields such as electric toys, drones, model airplanes, and mobile power supplies.



The battery uses advanced lithium polymer technology, which has a high discharge platform, low self-discharge rate, and a long life. At the same time, it has good safety performance and adopts multiple protection mechanisms such as overcharging, over-discharging, and short-circuit protection, which can ensure the safety of users.



It should be noted that using lithium polymer batteries requires following certain safety operation rules, avoiding short circuits, overcharging or over-discharging, and ensuring their safety and lifespan.

Specs of 182346-2S 1100mAh 7.4V

1、Mechanical Characteristics

Cell:

UFX182346-2s

PCM:

Yes

NTC:

No

Weight:

41.6g

Configuration:

2S1P





2、Electrical Specification

Capacity:

1100mAh

Nominal Voltage:

7.4V

Energy:

8.14Wh

Internal Impedance:

less than 150mΩ

Max. Charge Voltage:

8.4V

Discharge Cut Off:

5.8V

Max. Charge Current:

1100mA

Max. Discharge Current:

1100mA

Standard Charge Current:

550mA

Standard Discharge Current:

550mA

Charge Temp. Range:

10°C to 45°C

Discharge Temp. Range

-20°C to 60°C

Storage Temp. Range

1 year at -20℃ to +30℃

 Cycle life:

100 cycles ≥92%

3 moths at -20℃ to +45℃

300 cycles ≥88%

1 month at -20℃ to +60℃

500 cycles ≥80%

 3、Cell protection

Overcharge Detection :

4.28 ±25mV (0.7to 1.3sec delay, release 4.08V ±50mV)

Overdischarge Detection:

2.9V ±80mV (70 to 150msec. delay, release 3.0V ±100mV)

Overcurrent Detection:

 4A to 6A (5to 15msec. delay)

Short protection:

Yes

DISCHARGE RATE CHARACTERISTICS                                                          CYCLE LIFE CHARACTERISTICS
