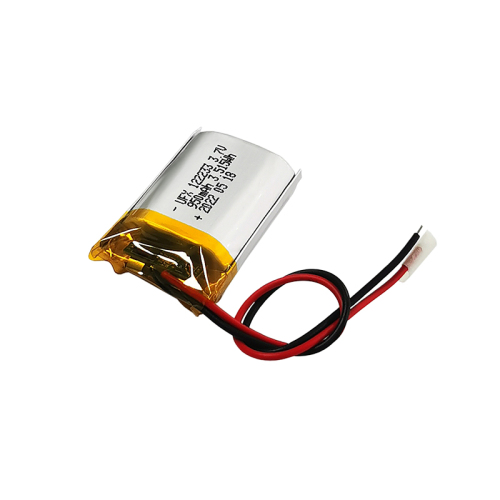

Manufactory Large Supply Infrared Thermometer Li-ion Battery UFX 122233 950mAh 3.7V Li-polymer Battery

Item No.: ufx066
UFX 122233 950mAh 3.7V battery for infrared thermometers, we at Ufine New Energy take pride in our expertise in producing high-quality lithium ion and lithium polymer batteries. Our large supply of rechargeable batteries is available at competitive prices
$0.00
/ Pieces
Description Review
Description

Brand:UFINE NEW ENERGY (UFX)
As the manufacturer of the UFX 122233 950mAh 3.7V battery for infrared thermometers, we at Ufine New Energy take pride in our expertise in producing high-quality lithium ion and lithium polymer batteries. Our large supply of rechargeable batteries is available at competitive prices, making us a leading choice for businesses in need of reliable power solutions. From start to finish, we ensure that our batteries meet rigorous quality standards, and we are committed to providing exceptional customer service. When it comes to battery 3.7V solutions, Ufine New Energy is the trusted name in the industry.
Specs of UFX122233 950mAh 3.7V

1、Mechanical Characteristics

Cell:

UFX122233

PCM:

Yes

NTC:

No

Weight:

appr. 16g

Configuration:

1S1P





2、Electrical Specification

Capacity:

950mAh

Nominal Voltage:

3.7V

Energy:

3.51Wh

Internal Impedance:

less than 180mΩ

Max. Charge Voltage:

4.2V

Discharge Cut Off:

2.75V

Max. Charge Current:

950mA

Max. Discharge Current:

950mA

Standard Charge Current:

190mA

Standard Discharge Current:

190mA

Charge Temp. Range:

10°C to 45°C

Discharge Temp. Range

-20°C to 60°C

Storage Temp. Range

1 year at -20℃ to +30℃

 Cycle life:

100 cycles ≥92%

3 moths at -20℃ to +45℃

300 cycles ≥88%

1 month at -20℃ to +60℃

500 cycles ≥80%

 3、Cell protection

Overcharge Detection :

4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)

Overdischarge Detection:

2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)

Overcurrent Detection:

2.5A to 4.0A (9 to 15msec. delay)

Short protection:

Yes

4、Discharge Rate Characteristics

4、Cycle life Characteristics

 1

Product Details


Ufine is a manufacturer  with independent research and development and production of polymer lithium-ion batteries. With years of experience in the field of polymer lithium-ion battery solutions, We have accumulated rich  technical experience. Currently, the company offers more than 300 different product models, all certified with KC, UL, CB, and other certifications.Moreover, We can quickly design and develop new products according to customer needs and arrange sample testing.



Why Choose Ufine to OEM or ODM Battery

UFine battery has over 30 professional engineers and technical staff who can provide polymer lithium battery solutions for you. As a lithium battery manufacturer, we are capable of rapid design, customization, and bulk production. Here are the main characteristics of our company:
1、Source manufacturer, strong factory, and powerful design and development capabilities.
2、
Short delivery time and sufficient inventory.

3、Self-produced, sufficient capacity, refuse false labeling, and guarantee capacity.
4、Strict quality control through a full range of quality systems from raw materials to finished products.
5、Our products are certified and meet various international battery standards, allowing us to directly export to markets such as Europe, America, and Korea.
6、Our team of professional foreign trade sales engineers can quickly respond to customer inquiries and provide solutions
