Ufine Product Features
High energy density
Long cycle life
Capability of discharge at ultra-low temperature of -40℃
Ability to be designed for high voltage (up to 4.4V)
Customizable sample and mass production according to customer needs.
|

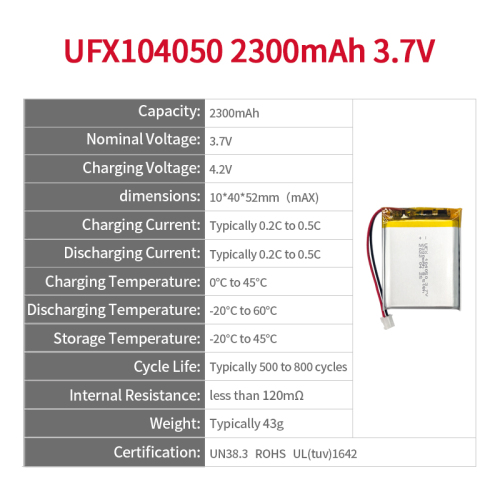

1、Mechanical Characteristics |
|||
|
Cell: |
UFX104050 |
PCM: |
Yes |
|
NTC: |
No |
Weight: |
appr. 43g |
|
Configuration: |
1S1P |
Demension |
Max 10*40*52mm |
| 2、Electrical Specification | |||
|
Capacity: |
2300mAh |
Nominal Voltage: |
3.7V |
|
Energy: |
4.44Wh |
Internal Impedance： |
less than 120mΩ |
|
Max. Charge Voltage: |
4.2V |
Discharge Cut Off: |
2.75V |
|
Max. Charge Current: |
1150mA |
Max. Discharge Current: |
1150mA |
|
Standard Charge Current: |
460mA |
Standard Discharge Current: |
460mA |
|
Charge Temp. Range: |
10°C to 45°C |
Discharge Temp. Range |
-20°C to 60°C |
|
Storage Temp. Range |
1 year at -20℃ to +30℃ |
Cycle life: |
100 cycles ≥92% |
|
3 moths at -20℃ to +45℃ |
300 cycles ≥88% | ||
|
1 month at -20℃ to +60℃ |
500 cycles ≥80% |
||
|

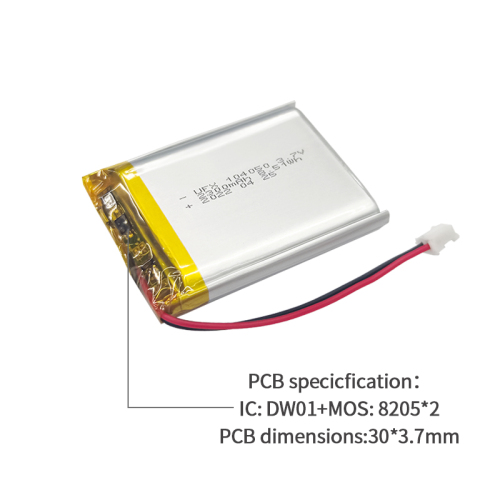

3、Cell protection |
|||
|
Overcharge Detection ： |
4.28 ±50mV (50 to 200msec delay, release 4.08V ±50mV) |
Overdischarge Detection： |
2.4V ±100mV (20 to 100msec. delay, release 3.0V ±100mV) |
|
Overcurrent Detection： |
2.5A to 4.0A (8 to 16msec. delay) |
Short protection： |
Yes |
|
4、Cycle life Characteristics Of Cell |
5、Discharge Characteristics Of Cell |
||
 |
|
||
