Brand:UFINE NEW ENERGY (UFX)
Ufine New Enegry is a leading lithium battery manufacturer located in China. We focus on manufacturing high-capacity lithium polymer batteries and lithium ion batteries. Our products are widely used in power banks, laptops, electric vehicles, drones, smart wearables and other lithium battery applications. We have a complete supply chain and advanced production lines to ensure high quality and stable supply. Our lithium polymer batteries and lithium ion batteries are certified by UL, CE, RoHS, ISO9001, etc. We have a professional R&D team and many patented technologies to provide innovative battery solutions for our customers. We aim to be your trusted partner and provide high-performance, high-reliability and cost-effective lithium battery products. We are committed to creating a green and sustainable future through the development and application of lithium battery technology. If you are looking for a reliable lithium battery supplier, Ufine New Enegry is your best choice. We look forward to working with you.

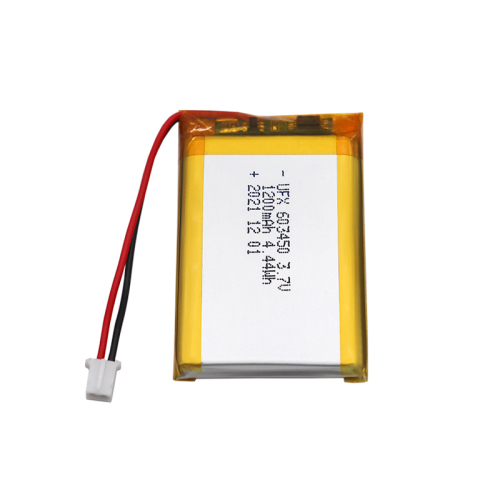

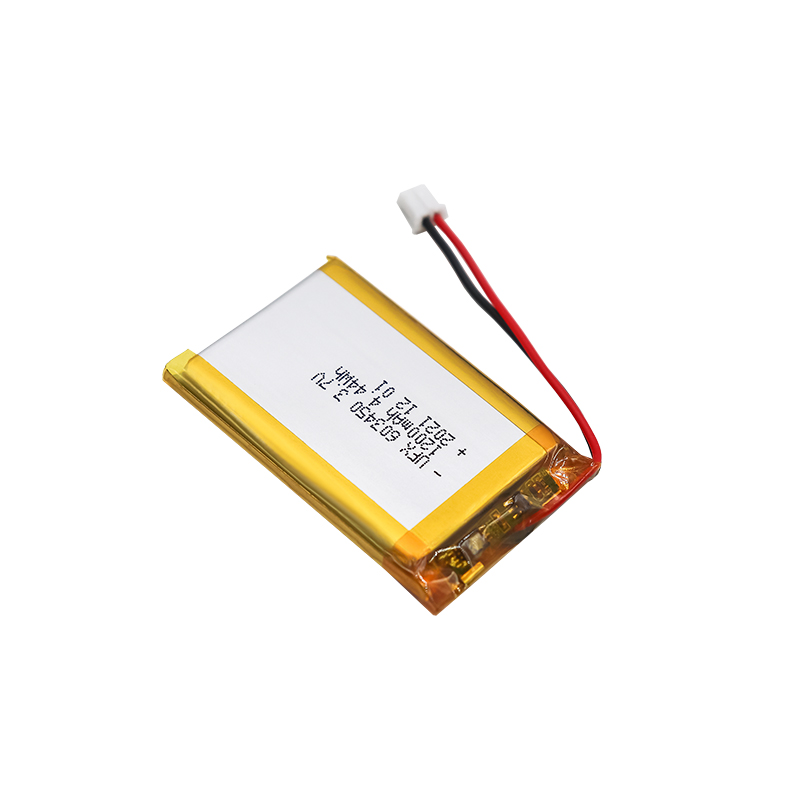

Specs of UFX603450 1200mAh 3.7V
|
1、Mechanical Characteristics
|
|
Cell:
|
UFX603450
|
PCM:
|
Yes
|
|
NTC:
|
No
|
Weight:
|
appr. 21g
|
|
Configuration:
|
1S1P
|
|
|
| 2、Electrical Specification |
|
Capacity:
|
1200mAh
|
Nominal Voltage:
|
3.7V
|
|
Energy:
|
4.44Wh
|
Internal Impedance：
|
less than 180mΩ
|
|
Max. Charge Voltage:
|
4.2V
|
Discharge Cut Off:
|
2.75V
|
|
Max. Charge Current:
|
1200mA
|
Max. Discharge Current:
|
1200mA
|
|
Standard Charge Current:
|
600mA
|
Standard Discharge Current: |
600mA
|
|
Charge Temp. Range:
|
10°C to 45°C
|
Discharge Temp. Range
|
-20°C to 60°C
|
|
Storage Temp. Range
|
1 year at -20℃ to +30℃
|
Cycle life: |
100 cycles ≥92%
|
|
3 moths at -20℃ to +45℃
|
300 cycles ≥88% |
|
1 month at -20℃ to +60℃
|
500 cycles ≥80%
|
|
3、Cell protection
|
|
Overcharge Detection ：
|
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
|
Overdischarge Detection：
|
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
|
|
Overcurrent Detection：
|
2.5A to 4.0A (9 to 15msec. delay)
|
Short protection：
|
Yes
|
|
4、Discharge Rate Characteristics
|
4、Cycle life Characteristics
|
|
|
 |
|
|
|
|
1
Product Details
Ufine is a manufacturer with independent research and development and production of polymer lithium-ion batteries. With years of experience in the field of polymer lithium-ion battery solutions, We have accumulated rich technical experience. Currently, the company offers more than 300 different product models, all certified with KC, UL, CB, and other certifications.Moreover, We can quickly design and develop new products according to customer needs and arrange sample testing.
Why Choose Ufine to OEM or ODM Battery
UFine battery has over 30 professional engineers and technical staff who can provide polymer lithium battery solutions for you. As a lithium battery manufacturer, we are capable of rapid design, customization, and bulk production. Here are the main characteristics of our company:
1、Source manufacturer, strong factory, and powerful design and development capabilities.
2、Short delivery time and sufficient inventory.
3、Self-produced, sufficient capacity, refuse false labeling, and guarantee capacity.4、Strict quality control through a full range of quality systems from raw materials to finished products.5、Our products are certified and meet various international battery standards, allowing us to directly export to markets such as Europe, America, and Korea.6、Our team of professional foreign trade sales engineers can quickly respond to customer inquiries and provide solutions
Factory Photos
Display Of Testing Equipment
Certification
