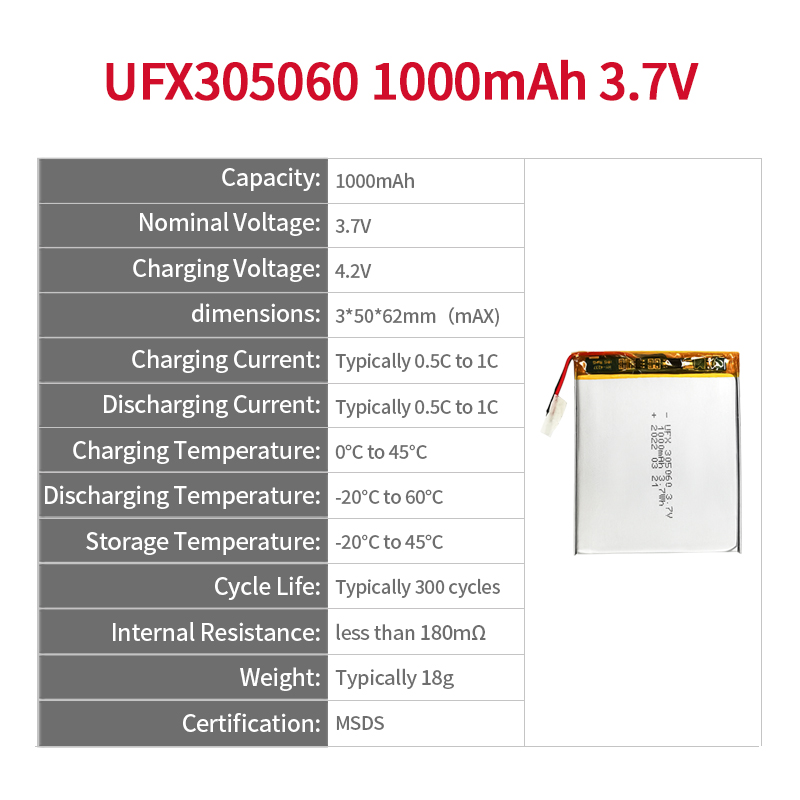

1、Mechanical Characteristics |
|||
Cell: |
UFX305060 |
PCM: |
Yes |
NTC: |
No |
Weight: |
appr. 18g |
Configuration: |
1S1P |
|
|
2、Electrical Specification | |||
Capacity: |
1000mAh |
Nominal Voltage: |
3.7V |
Energy: |
3.7Wh |
Internal Impedance: |
less than 180mΩ |
Max. Charge Voltage: |
4.2V |
Discharge Cut Off: |
2.75V |
Max. Charge Current: |
1000mA |
Max. Discharge Current: |
1000mA |
Standard Charge Current: |
500mA |
Standard Discharge Current: |
500mA |
Charge Temp. Range: |
10°C to 45°C |
Discharge Temp. Range |
-20°C to 60°C |
Storage Temp. Range |
1 year at -20℃ to +30℃ |
Cycle life: |
100 cycles ≥92% |
3 moths at -20℃ to +45℃ |
300 cycles ≥88% | ||
1 month at -20℃ to +60℃ |
500 cycles ≥80% |
||
3、Cell protection |
|||
Overcharge Detection : |
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV) |
Overdischarge Detection: |
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV) |
Overcurrent Detection: |
2.5A to 4.0A (9 to 15msec. delay) |
Short protection: |
Yes |
4、Discharge Rate Characteristics |
4、Cycle life Characteristics |
||
|
![]() |
||
